mixconjugateblm

Bayesian linear regression model with conjugate priors for stochastic search variable selection (SSVS)

Description

The Bayesian linear regression model object mixconjugateblm specifies that the joint prior distribution of the regression coefficients and the disturbance variance (β, σ2) for implementing SSVS (see [1] and [2]) assuming β and σ2 are dependent random variables.

In general, when you create a Bayesian linear regression model object, it specifies the joint prior distribution and characteristics of the linear regression model only. That is, the model object is a template intended for further use. Specifically, to incorporate data into the model for posterior distribution analysis and feature selection, pass the model object and data to the appropriate object function.

Creation

Syntax

PriorMdl = mixconjugateblm(NumPredictors)
PriorMdl = mixconjugateblm(NumPredictors,Name,Value)

Description

example

PriorMdl = mixconjugateblm(NumPredictors) creates a Bayesian linear regression model object (PriorMdl) composed of NumPredictors predictors and an intercept. The joint prior distribution of (β, σ2) is appropriate for implementing SSVS for predictor selection [2]. PriorMdl is a template defining the prior distributions and dimensionality of β.

example

PriorMdl = mixconjugateblm(NumPredictors,Name,Value)use additional options specified by one or more Name,Value pair arguments. Name is a property name, except NumPredictors, and Value is the corresponding value. Name must appear inside quotes. You can specify several Name,Value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

For example, mixconjugateblm(3,'Probability',abs(rand(4,1))) specifies random prior regime probabilities for all four coefficients in the model.

Properties

expand all

You can set property values when you create the model object using name-value pair argument syntax, or after model creation using dot notation. For example, to exclude an intercept from the model, enter

PriorMdl.Intercept = false;

Number of predictor variables in the Bayesian multiple linear regression model, specified as a nonnegative integer.

NumPredictors must be the same as the number of columns in your predictor data, which you specify during model estimation or simulation.

When specifying NumPredictors, exclude any intercept term for the value.

After creating a model, if you change the value NumPredictors using dot notation, then all these parameters revert to the default values:

  • Variables names (VarNames)

  • The prior mean of β (Mu)

  • The prior variances of β for each regime (V)

  • The prior correlation matrix of β (Correlation)

  • The prior regime probabilities (Probability)

Data Types: double

Indicate whether to include regression model intercept, specified as the comma-separated pair consisting of 'Intercept' and a value in this table.

ValueDescription
falseExclude an intercept from the regression model. Hence, β is a p-dimensional vector, where p is the value of the NumPredictors property.
trueInclude an intercept in the regression model. Hence, β is a (p + 1)-dimensional vector. During estimation, simulation, and forecasting, MATLAB® prepends the predictor data with an appropriately-sized vector of ones.

If you include a column of ones in the predictor data for an intercept term, then set Intercept to false.

Example: 'Intercept',false

Data Types: logical

Predictor variable names for displays, specified as a string vector or cell vector of character vectors. VarNames  must contain NumPredictors elements. VarNames(j) is the name of variable in column j of the predictor data set, which you specify during estimation, simulation, and forecasting.

The default is {'Beta(1)','Beta(2),...,Beta(p)}, where p is the value of NumPredictors.

Example: 'VarNames',["UnemploymentRate"; "CPI"]

Data Types: string | cell | char

Component-wise mean hyperparameter of Gaussian mixture prior on β, specified as a (Intercept + NumPredictors)-by-2 numeric matrix. The first column contains the prior means for component 1, which is for the variable-inclusion regime (that is, γ = 1). The second column contains the prior means for component 2, which is for the variable-exclusion regime (that is, γ = 0).

  • If Intercept is false, then Mu has NumPredictors rows. mixconjugateblm sets the prior mean of the NumPredictors coefficients corresponding to the columns in the predictor data set, which is specified during estimation, simulation, or forecasting.

  • Otherwise, Mu has NumPredictors + 1 elements, the first element corresponds to the prior means of the intercept, and all other elements correspond to the predictor variables.

Tip

To perform SSVS, use the default value of Mu.

Data Types: double

Component-wise variance factor hyperparameter of Gaussian mixture prior on β, specified as a (Intercept + NumPredictors)-by-2 positive numeric matrix. The first column contains the prior variance factors for component 1, which is for the variable-inclusion regime (that is, γ = 1). The second column contains the prior variance factors for component 2, which is the variable-exclusion regime (that is, γ = 0). Regardless of regime or coefficient, the prior variance of a coefficient is the variance factor times σ2.

  • If Intercept is false, then V has NumPredictors rows. mixconjugateblm sets the prior variance factor of the NumPredictors coefficients corresponding to the columns in the predictor data set, which is specified during estimation, simulation, or forecasting.

  • Otherwise, V has NumPredictors + 1 elements, the first element corresponds to the prior variance factor of the intercept, and all other elements correspond to the predictor variables.

Tip

  • To perform SSVS, specify a larger variance factor for regime 1 than for regime 2. That is, for all j, specify V(j,1) > V(j,2).

  • For details on what value to specify for V, see [1].

Data Types: double

Prior probability distribution for the variable inclusion and exclusion regimes, specified as a (Intercept + NumPredictors)-by-1 numeric vector of values in [0,1] or a function handle in the form @fcnName, where fcnName is the function name. Probability represents the prior probability distribution of γ = {γ1,…,γK}, where:

  • K = Intercept + NumPredictors, which is the number of coefficients in the regression model.

  • γk ∈ {0,1} for k = 1,…,K. Hence, the sample space has a cardinality of 2K.

  • γk = 1 indicates variable VarNames(k) is included in the model, and γk = 0 indicates that the variable is excluded from the model.

If Probability is a numeric vector:

  • Rows correspond to the variable names in VarNames. For models containing an intercept, the prior probability for intercept inclusion is Probability(1).

  • For k = 1,…,K, the prior probability for excluding variable k is 1 - Probability(k).

  • Prior probabilities of the variable-inclusion regime, among all variables and the intercept, are independent.

If Probability is a function handle, then it represents a custom prior distribution of the variable-inclusion regime probabilities. The corresponding function must have this declaration statement (the argument and function names can vary):

logprob = regimeprior(varinc)

where:

  • logprob is a numeric scalar representing the log of the prior distribution. you can write the prior distribution up to a proportionality constant.

  • varinc is a K-by-1 logical vector. Elements correspond to the variable names in VarNames, and indicate in which regime the corresponding variable exists. varinc(k) = true indicates VarName(k) is included in the model, varinc(k) = false indicates otherwise.

You can include more input arguments, but they must be known when you call mixconjugateblm.

For details on what value to specify for Probability, see [1].

Data Types: double | function_handle

Prior correlation matrix of β for both components in the mixture model, specified as an (Intercept + NumPredictors)-by-(Intercept + NumPredictors) numeric, positive definite matrix. Consequently, the prior covariance matrix for component j in the mixture model is sigma2*diag(sqrt(V(:,j)))*Correlation*diag(sqrt(V(:,j))), where sigma2 is σ2 and V is the matrix of coefficient variance factors.

Rows and columns correspond to the variable names in VarNames.

By default, regression coefficients are uncorrelated, conditional on the regime.

Note

You can supply any appropriately-sized numeric matrix. However, if your specification is not positive definite, mixconjugateblm issues a warning and replaces your specification with CorrelationPD, where:

CorrelationPD = 0.5*(Correlation + Correlation.');

For details on what value to specify for Correlation, see [1].

Data Types: double

Shape parameter of inverse gamma prior on σ2, specified as a numeric scalar.

A must be at least -(Intercept + NumPredictors)/2.

With B held fixed, as A increases, the inverse gamma distribution becomes taller and more concentrated. This characteristic weighs the prior model of σ2 more heavily than the likelihood during posterior estimation.

For the functional form of the inverse gamma distribution, see Analytically Tractable Posteriors.

Example: 'A',0.1

Data Types: double

Scale parameter of inverse gamma prior on σ2, specified as a positive scalar or Inf.

With A held fixed, as B increases, the inverse gamma distribution becomes taller and more concentrated. This characteristic weighs the prior model of σ2 more heavily than the likelihood during posterior estimation.

Example: 'B',5

Data Types: double

Object Functions

estimatePerform predictor variable selection for Bayesian linear regression models
simulateSimulate regression coefficients and disturbance variance of Bayesian linear regression model
forecastForecast responses of Bayesian linear regression model
plotVisualize prior and posterior densities of Bayesian linear regression model parameters
summarizeDistribution summary statistics of Bayesian linear regression model for predictor variable selection

Examples

collapse all

Consider the multiple linear regression model that predicts U.S. real gross national product (GNPR) using a linear combination of industrial production index (IPI), total employment (E), and real wages (WR).

For all , is a series of independent Gaussian disturbances with a mean of 0 and variance .

Assume that the prior distributions are, for = 0,...,3:

  • , where and are independent, standard normal random variables. Hence, the coefficients have a Gaussian mixture distribution. Assume all coefficients are conditionally independent, a priori, but they are dependent on the disturbance variance.

  • . and are the shape and scale, respectively, of an inverse gamma distribution.

  • and it represents the random variable-inclusion regime variable with a discrete uniform distribution.

Create a prior model for SSVS. Specify the number of predictors, p.

p = 3;
Mdl = mixconjugateblm(p);

Mdl is a mixconjugateblm Bayesian linear regression model object representing the prior distribution of the regression coefficients and disturbance variance. At the command window, mixconjugateblm displays a summary of the prior distributions.

Alternatively, you can create a prior model for SSVS by passing the number of predictors to bayeslm and setting the ModelType name-value pair argument to 'mixconjugate'.

MdlBayesLM = bayeslm(p,'ModelType','mixconjugate')
MdlBayesLM =
  mixconjugateblm with properties:

    NumPredictors: 3
        Intercept: 1
         VarNames: {4x1 cell}
               Mu: [4x2 double]
                V: [4x2 double]
      Probability: [4x1 double]
      Correlation: [4x4 double]
                A: 3
                B: 1


           |  Mean     Std         CI95        Positive      Distribution
------------------------------------------------------------------------------
 Intercept |  0      1.5890  [-3.547,  3.547]    0.500   Mixture distribution
 Beta(1)   |  0      1.5890  [-3.547,  3.547]    0.500   Mixture distribution
 Beta(2)   |  0      1.5890  [-3.547,  3.547]    0.500   Mixture distribution
 Beta(3)   |  0      1.5890  [-3.547,  3.547]    0.500   Mixture distribution
 Sigma2    | 0.5000  0.5000  [ 0.138,  1.616]    1.000   IG(3.00,    1)


Mdl and MdlBayesLM are equivalent model objects.

You can set writable property values of created models using dot notation. Specify the regression coefficient names to the corresponding variable names.

Mdl.VarNames = ["IPI" "E" "WR"]
Mdl =
  mixconjugateblm with properties:

    NumPredictors: 3
        Intercept: 1
         VarNames: {4x1 cell}
               Mu: [4x2 double]
                V: [4x2 double]
      Probability: [4x1 double]
      Correlation: [4x4 double]
                A: 3
                B: 1


           |  Mean     Std         CI95        Positive      Distribution
------------------------------------------------------------------------------
 Intercept |  0      1.5890  [-3.547,  3.547]    0.500   Mixture distribution
 IPI       |  0      1.5890  [-3.547,  3.547]    0.500   Mixture distribution
 E         |  0      1.5890  [-3.547,  3.547]    0.500   Mixture distribution
 WR        |  0      1.5890  [-3.547,  3.547]    0.500   Mixture distribution
 Sigma2    | 0.5000  0.5000  [ 0.138,  1.616]    1.000   IG(3.00,    1)


MATLAB® associates the variable names to the regression coefficients in displays.

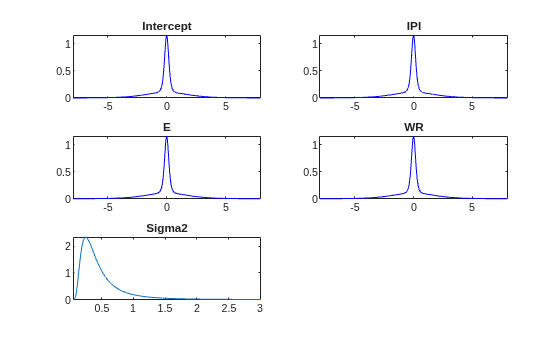

Plot the prior distributions.

plot(Mdl);

The distributions of the coefficient are centered at 0 and have the spike-and-slab appearance.

This example is based on Create Prior Model for SSVS.

Create a prior model for performing SSVS. Assume that are dependent on (a conjugate mixture model). Specify the number of predictors, p, and the names of the regression coefficients.

p = 3;
PriorMdl = mixconjugateblm(p,'VarNames',["IPI" "E" "WR"]);

Display the prior regime probabilities and Gaussian mixture variance factors of the prior .

priorProbabilities = table(PriorMdl.Probability,'RowNames',PriorMdl.VarNames,...
    'VariableNames',"Probability")
priorProbabilities=4×1 table
                 Probability
                 ___________

    Intercept        0.5
    IPI              0.5
    E                0.5
    WR               0.5

priorV = array2table(PriorMdl.V,'RowNames',PriorMdl.VarNames,...
    'VariableNames',["gammaIs1" "gammaIs0"])
priorV=4×2 table
                 gammaIs1    gammaIs0
                 ________    ________

    Intercept       10         0.1
    IPI             10         0.1
    E               10         0.1
    WR              10         0.1

PriorMdl stores prior regime probabilities in the Probability property and the regime variance factors in the V property. The default prior probability of variable inclusion is 0.5. The default variance factors for each coefficent are 10 for the variable-inclusion regime and 0.01 for the variable-exclusion regime.

Load the Nelson-Plosser data set. Create variables for the response and predictor series.

load Data_NelsonPlosser
X = DataTable{:,PriorMdl.VarNames(2:end)};
y = DataTable{:,'GNPR'};

Implement SSVS by estimating the marginal posterior distributions of and . Because SSVS uses Markov chain Monte Carlo for estimation, set a random number seed to reproduce the results.

rng(1);
PosteriorMdl = estimate(PriorMdl,X,y);
Method: MCMC sampling with 10000 draws
Number of observations: 62
Number of predictors:   4

           |   Mean      Std           CI95        Positive  Distribution  Regime
----------------------------------------------------------------------------------
 Intercept | -18.8333  10.1851  [-36.965,  0.716]    0.037     Empirical   0.8806
 IPI       |   4.4554   0.1543   [ 4.165,  4.764]    1.000     Empirical   0.4545
 E         |   0.0010   0.0004   [ 0.000,  0.002]    0.997     Empirical   0.0925
 WR        |   2.4686   0.3615   [ 1.766,  3.197]    1.000     Empirical   0.1734
 Sigma2    |  47.7557   8.6551   [33.858, 66.875]    1.000     Empirical    NaN


PosteriorMdl is an empiricalblm model object storing object storing draws from the posterior distributions of and given the data. estimate displays a summary of the marginal posterior distributions to the command window. Rows of the summary correspond to regression coefficients and the disturbance variance, and columns to characteristics of the posterior distribution. The characteristics include:

  • CI95, which contains the 95% Bayesian equitailed credible intervals for the parameters. For example, the posterior probability that the regression coefficient of E (standardized) is in [-0.110, 0.365] is 0.95.

  • Regime, which contains the marginal posterior probability of variable inclusion ( for a variable) . For example, the posterior probability E should be included in the model is 0.0925.

Assuming, arbitrarily, that variables having Regime < 0.1 should be removed from the model, the results suggest that you can exclude the unemployment rate from the model.

By default, estimate draws and discards a burn-in sample of size 5000. However, it is good practice to inspect a trace plot of the draws for adequate mixing and lack of transience. Plot a trace plot of the draws for each parameter. You can access the draws that compose the distribution, that is, the properties BetaDraws and Sigma2Draws, using dot notation.

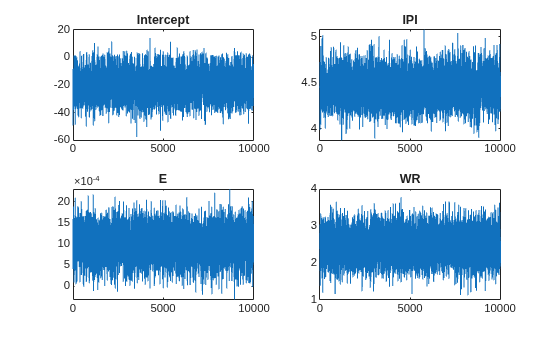

figure;
for j = 1:(p + 1)
    subplot(2,2,j);
    plot(PosteriorMdl.BetaDraws(j,:));
    title(sprintf('%s',PosteriorMdl.VarNames{j}));
end

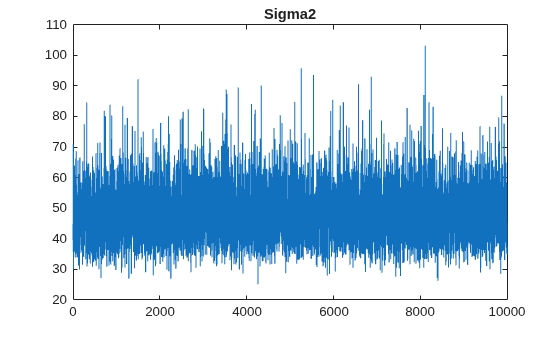

figure;
plot(PosteriorMdl.Sigma2Draws);
title('Sigma2');

The trace plots indicate that the draws seem to be mixing well, that is, there is no detectable transience or serial correlation, and the draws do not jump between states.

This example is based on Create Prior Model for SSVS.

Load the Nelson-Plosser data set. Create variables for the response and predictor series. To the MATLAB® path, add example-specific files.

load Data_NelsonPlosser
VarNames = ["IPI" "E" "WR"];
X = DataTable{:,VarNames};
y = DataTable{:,"GNPR"};

path = fullfile(matlabroot,'examples','econ','main');
addpath(path);

Suppose you have prior knowledge that:

  • The intercept is in the model with probability 0.9.

  • IPI and E are in the model with probability 0.75.

  • If E is included in the model, then the probability that WR is included in the model is 0.9.

  • If E is excluded from the model, then the probability that WR is included is 0.25.

Declare a function called priorssvsexample.m that:

  • Accepts a logical vector indicating whether the intercept and variables are in the model (true for model inclusion). Element 1 corresponds to the intercept, and the rest of the elements correspond to the the variables in the data.

  • Returns a numeric scalar representing the log of the described prior regime probability distribution<include>

function logprior = priorssvsexample(varinc)
%PRIORSSVSEXAMPLE Log prior regime probability distribution for SSVS
%   PRIORSSVSEXAMPLE is an example of a custom log prior regime probability
%   distribution for SSVS with dependent random variables. varinc is
%   a 4-by-1 logical vector indicating whether 4 coefficients ae in a model
%   and logPrior is a numeric scalar represnting the log of the prior
%   distribution of the regime probabilities.
%
%   Coefficients enter a model following these rules:
%       * varinc(1) is included with probability 0.9.
%       * varinc(2) and varinc(3) are in the model with probability 0.75.
%       * If varinc(3) is included in the model, then the probability that
%       varinc(4) is included in the model is 0.9.
%       * If varinc(3) is excluded from the model, then the probability
%       that varinc(4) is included is 0.25.

logprior = log(0.9) + 2*log(0.75) + log(varinc(3)*0.9 + (1-varinc(3))*0.25);

end


priorssvsexample.m is an example-specific file included with the Econometrics Toolbox™. To access it, enter edit priorssvsexample.m.

Create a prior model for performing SSVS. Assume that is dependent on (a conjugate mixture model). Specify the number of predictors, p, the names of the regression coefficients, and the custom, prior probability distribution of the variable-inclusion regimes.

p = 3;
PriorMdl = mixconjugateblm(p,'VarNames',["IPI" "E" "WR"],...
    'Probability',@priorssvsexample);

Implement SSVS by estimating the marginal posterior distributions of and . Because SSVS uses Markov chain Monte Carlo for estimation, set a random number seed to reproduce the results.

rng(1);
PosteriorMdl = estimate(PriorMdl,X,y);
Method: MCMC sampling with 10000 draws
Number of observations: 62
Number of predictors:   4

           |   Mean      Std           CI95        Positive  Distribution  Regime
----------------------------------------------------------------------------------
 Intercept | -18.7971  10.1644  [-37.002,  0.765]    0.039     Empirical   0.8797
 IPI       |   4.4559   0.1530   [ 4.166,  4.760]    1.000     Empirical   0.4623
 E         |   0.0010   0.0004   [ 0.000,  0.002]    0.997     Empirical   0.2665
 WR        |   2.4684   0.3618   [ 1.759,  3.196]    1.000     Empirical   0.1727
 Sigma2    |  47.7391   8.6741   [33.823, 67.024]    1.000     Empirical    NaN


Assuming, arbitrarily, that variables having Regime < 0.1 should be removed from the model, the results suggest that you can include all variables in the model.

Clean up the workspace by removing path from the MATLAB® path.

rmpath(path);

This example is based on Create Prior Model for SSVS.

Perform SSVS by:

  1. Creating a Bayesian regression model for SSVS with a conjugate prior for the data likelihood. Use the default settings.

  2. Holding out the the last 10 periods of data from estimation.

  3. Estimating the marginal posterior distributions.

p = 3;
PriorMdl = bayeslm(p,'ModelType','mixconjugate','VarNames',["IPI" "E" "WR"]);

load Data_NelsonPlosser
fhs = 10; % Forecast horizon size
X = DataTable{1:(end - fhs),PriorMdl.VarNames(2:end)};
y = DataTable{1:(end - fhs),'GNPR'};
XF = DataTable{(end - fhs + 1):end,PriorMdl.VarNames(2:end)}; % Future predictor data
yFT = DataTable{(end - fhs + 1):end,'GNPR'};                  % True future responses

rng(1); % For reproducibility
PosteriorMdl = estimate(PriorMdl,X,y,'Display',false);

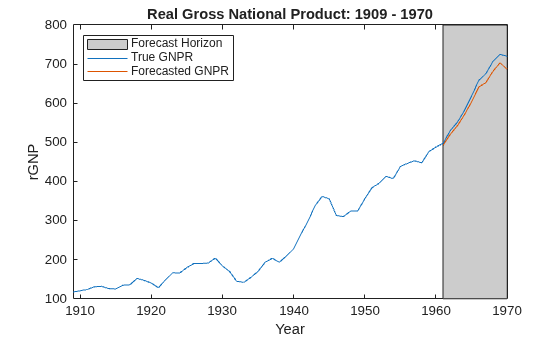

Forecast responses using the posterior predictive distribution and using the future predictor data XF. Plot the true values of the response and the forecasted values.

yF = forecast(PosteriorMdl,XF);

figure;
plot(dates,DataTable.GNPR);
hold on
plot(dates((end - fhs + 1):end),yF)
h = gca;
hp = patch([dates(end - fhs + 1) dates(end) dates(end) dates(end - fhs + 1)],...
    h.YLim([1,1,2,2]),[0.8 0.8 0.8]);
uistack(hp,'bottom');
legend('True GNPR','Forecasted GNPR','Forecast Horizon','Location','NW')
title('Real Gross National Product: 1909 - 1970');
ylabel('rGNP');
xlabel('Year');
hold off

yF is a 10-by-1 vector of future values of real GNP corresponding to the future predictor data.

Estimate the forecast root mean squared error (RMSE).

frmse = sqrt(mean((yF - yFT).^2))
frmse = 18.8470

Forecast RMSE is a relative measure of forecast accuracy. Specifically, you estimate several models using different assumptions. The model with the lowest forecast RMSE is the best performing model of the ones being compared.

When you perform Bayesian regression with SSVS, it is best practice to tune the hyperparameters. One way to tune the hyperparameters is to estimate forecast RMSE over a grid of hyperparameter values, and choose the values that minimize forecast RMSE.

More About

expand all

Algorithms

A closed-form posterior exists for conjugate mixture priors in the SSVS framework with K coefficients. However, because the prior β|σ2,γ, marginalized by γ, is a 2K-component Gaussian mixture, MATLAB uses Markov Chain Monte Carlo instead to sample from the posterior for numerical stability.

Alternative Functionality

The bayeslm function can create any supported prior model object for Bayesian linear regression.

References

[1] George, E. I. and R. E. McCulloch. "Variable Selection Via Gibbs Sampling." Journal of the American Statistical Association. Vol. 88, No. 423, 1993, pp. 881–889.

[2] Koop, G., D. J. Poirier, and J. L. Tobias. Bayesian Econometric Methods. New York, NY: Cambridge University Press, 2007.

Introduced in R2018b
