Sine Wave
Generate continuous or discrete sine wave
 Library:
DSP System Toolbox / Sources
DSP System Toolbox HDL Support / Sources
Description
The Sine Wave block generates a multichannel real or complex sinusoidal signal, with independent amplitude, frequency, and phase in each output channel. The block supports floating point and signed fixedpoint data types.
The block generates a real sinusoidal signal when you set the Output
complexity parameter to Real
. The real
sinusoidal output is defined by an expression of the type
$$y=A\mathrm{sin}\left(2\pi ft+\varphi \right)$$
where you specify A in the Amplitude parameter, f in hertz in the Frequency parameter, and ϕ in radians in the Phase offset parameter.
The block generates a complex exponential signal when you set the Output
complexity parameter to Complex
. This complex
exponential signal is defined by an expression of the type
$$y=A{e}^{j(2\pi ft+\varphi )}=A\left\{\mathrm{cos}\left(2\pi ft+\varphi \right)+j\mathrm{sin}\left(2\pi ft+\varphi \right)\right\}$$
Generating Multichannel Outputs
For both real and complex sinusoids, the Amplitude, Frequency, and Phase offset parameter values (A, f, and ϕ) can be scalars or lengthN vectors, where N is the desired number of channels in the output. When you specify at least one of these parameters as a lengthN vector, scalar values specified for the other parameters are applied to every channel.
For example, to generate the threechannel output containing the following real sinusoids, set the block parameters as shown:
$$y=\{\begin{array}{cc}\mathrm{sin}\left(2000\pi t\right)& \text{(channel1)}\\ 2\mathrm{sin}\left(1000\pi t\right)& \text{(channel2)}\\ 3\mathrm{sin}\left(500\pi t+\frac{\pi}{2}\right)& \text{(channel3)}\end{array}\text{}$$
Output complexity =
Real
Amplitude =
[1 2 3]
Frequency =
[1000 500 250]
Phase offset =
[0 0 pi/2]

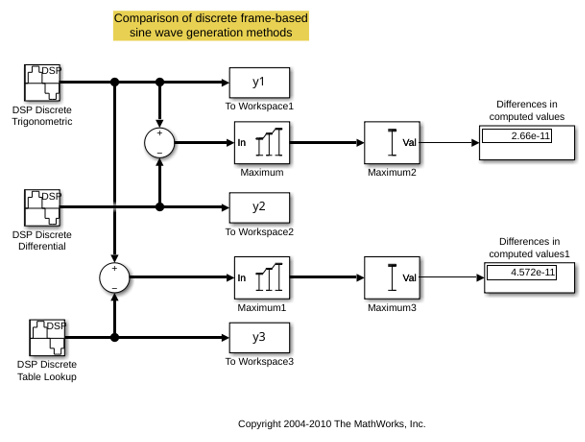

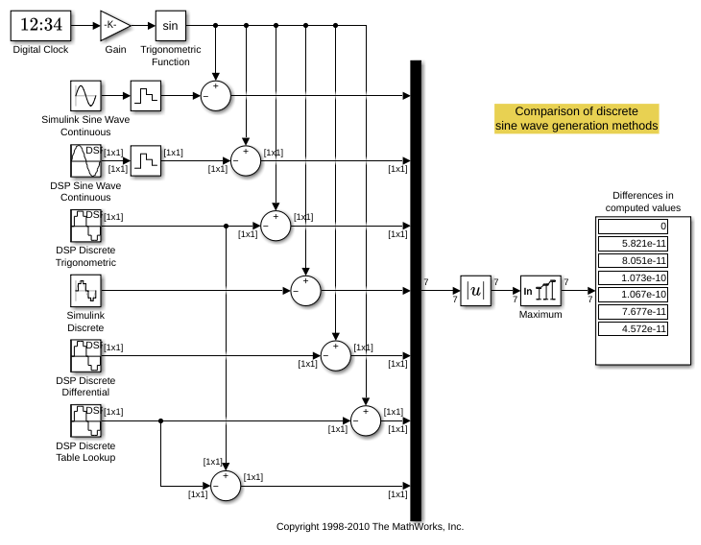

Ports
Output
Parameters
Block Characteristics
Data Types

Direct Feedthrough

Multidimensional Signals

VariableSize Signals

ZeroCrossing Detection

Algorithms
Extended Capabilities
Version History
Introduced before R2006a
See Also
Blocks
 Chirp  Signal From Workspace  Signal Generator (Simulink)  Sine Wave (Simulink)  Enabled Subsystem (Simulink)
