# dsp.LowpassFilter

FIR or IIR lowpass filter

## Description

The `dsp.LowpassFilter`

object independently filters each channel of the
input over time using the given design specifications. You can set the
`FilterType`

property to `'FIR'`

or
`'IIR'`

to implement the object as an FIR or an IIR lowpass filter.

When the `FilterType`

property is set to `'FIR'`

,
using this object is an alternative to using the `firceqrip`

and
`firgr`

functions with `dsp.FIRFilter`

. The
`dsp.LowpassFilter`

object condenses the two-step process into one. You can
use `measure`

to verify that the design meets the prescribed specifications.

To filter each channel of your input:

Create the

`dsp.LowpassFilter`

object and set its properties.Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

## Creation

### Description

returns a minimum
order FIR lowpass filter with the default filter settings. Calling the object with the
default property settings filters the input data with a passband frequency of
`LPF`

= dsp.LowpassFilter`8`

kHz, a stopband frequency of `12`

kHz, a passband
ripple of `0.1`

dB, and a stopband attenuation of `80`

dB.

returns a lowpass filter with additional properties specified by one or more
`LPF`

= dsp.LowpassFilter(`Name=Value`

)`Name-Value`

pair arguments. `Name`

is the
property name and `Value`

is the corresponding value. For example,
`PassbandFrequency=8000`

sets the passband frequency specification of
the filter to 8000 Hz.

## Properties

Unless otherwise indicated, properties are *nontunable*, which means you cannot change their
values after calling the object. Objects lock when you call them, and the
`release`

function unlocks them.

If a property is *tunable*, you can change its value at
any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

`FilterType`

— Type of filter response

`'FIR'`

(default) | `'IIR'`

Type of filter response, specified as one of these options:

`'FIR'`

— The object designs an FIR lowpass filter.`'IIR'`

— The object designs an IIR lowpass (biquad) filter.

`DesignForMinimumOrder`

— Flag to design minimum order filter

`true`

(default) | `false`

Flag to design minimum order filter, specified as:

`true`

–– The object designs the minimum order filter that meets the filter design specifications.`false`

–– The object designs the filter with the order that you specify in the`FilterOrder`

property.

`FilterOrder`

— Order of the FIR or IIR filter

`50`

(default) | positive integer

Order of the FIR or IIR filter, specified as a positive integer.

#### Dependencies

To enable this property, set `DesignForMinimumOrder`

to
`false`

.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`PassbandFrequency`

— Filter passband edge frequency

`8000`

(default) | real positive scalar

Filter passband edge frequency, specified as a real positive scalar in Hz or in normalized frequency units* (since R2023a)*.

If you set the
`NormalizedFrequency`

property to:

`false`

–– The value of the passband edge frequency is in Hz and must be less than the stopband frequency and half the`SampleRate`

property value.`true`

–– The value of the passband edge frequency is in normalized frequency units. The value must be a positive scalar less than`1.0`

.

* (since R2023a)*

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`StopbandFrequency`

— Filter stopband edge frequency

`12000`

(default) | real positive scalar

Filter stopband edge frequency, specified as a real positive scalar in Hz or in normalized frequency units* (since R2023a)*.

If you set the
`NormalizedFrequency`

property to:

`false`

–– The value of the stopband edge frequency is in Hz. The value must be greater than the passband edge frequency and less than half the`SampleRate`

property value.`true`

–– The value of the stopband edge frequency is in normalized frequency units. The value must be a positive scalar greater than the passband edge frequency and less than`1.0`

.

* (since R2023a)*

#### Dependencies

To enable this property, set the `DesignForMinimumOrder`

property to `true`

.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`PassbandRipple`

— Maximum ripple of filter response in the passband

`0.1`

(default) | real positive scalar

Maximum ripple of filter response in the passband, specified as a real positive scalar in dB.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`StopbandAttenuation`

— Minimum attenuation in the stopband

`80`

(default) | real positive scalar

Minimum attenuation in the stopband, specified as a real positive scalar in dB.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`NormalizedFrequency`

— Flag to set frequencies in normalized units

`false`

(default) | `true`

*Since R2023a*

Flag to set frequencies in normalized units, specified as one of these values:

`true`

–– The passband edge and stopband edge frequencies must be in the normalized frequency units and less than`1.0`

.`false`

–– The passband edge and stopband edge frequencies are in Hz. You can specify the input sample rate through the`SampleRate`

property.

**Data Types: **`logical`

`SampleRate`

— Input sample rate

`44100`

(default) | real positive scalar

Input sample rate in Hz, specified as a real positive scalar.

#### Dependency

To enable this property, set
`NormalizedFrequency`

to `false`

.* (since R2023a)*

**Data Types: **`single`

| `double`

**Fixed-Point Properties**

`RoundingMethod`

— Rounding method for output fixed-point operations

`'Floor'`

(default) | `'Ceiling'`

| `'Convergent'`

| `'Nearest'`

| `'Round'`

| `'Simplest'`

| `'Zero'`

Rounding method for output fixed-point operations, specified as a character vector. For more information on the rounding modes, see Precision and Range.

`CoefficientsDataType`

— Word and fraction lengths of coefficients

`numerictype(1,16)`

(default) | `numerictype`

object

Word and fraction lengths of coefficients, specified as a
`numerictype`

object. The default,
`numerictype(1,16)`

corresponds to a signed numeric type object with
16-bit coefficients and a fraction length determined based on the coefficient values, to
give the best possible precision.

This property is not tunable.

Word length of the output is same as the word length of the input. Fraction length of the output is computed such that the entire dynamic range of the output can be represented without overflow. For details on how the fraction length of the output is computed, see Fixed-Point Precision Rules for Avoiding Overflow in FIR Filters.

## Usage

### Syntax

### Description

### Input Arguments

`x`

— Noisy data input

vector | matrix

Noisy data input, specified as a vector or a matrix. If the input signal is a matrix, each column of the matrix is treated as an independent channel. The number of rows in the input signal denote the channel length. This object accepts variable-size inputs. After the object is locked, you can change the size of each input channel, but you cannot change the number of channels.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

| `fi`

**Complex Number Support: **Yes

### Output Arguments

`y`

— Filtered output

vector | matrix

Filtered output, returned as a vector or a matrix. The output has the same size, data type, and complexity characteristics as the input.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

| `fi`

**Complex Number Support: **Yes

## Object Functions

To use an object function, specify the
System object™ as the first input argument. For
example, to release system resources of a System object named `obj`

, use
this syntax:

release(obj)

### Specific to `dsp.LowpassFilter`

`freqz` | Frequency response of discrete-time filter System object |

`fvtool` | Visualize frequency response of DSP filters |

`impz` | Impulse response of discrete-time filter System object |

`info` | Information about filter System object |

`coeffs` | Returns the filter System object coefficients in a structure |

`cost` | Estimate cost of implementing filter System object |

`grpdelay` | Group delay response of discrete-time filter System object |

`generatehdl` | Generate HDL code for quantized DSP filter (requires Filter Design HDL Coder) |

`measure` | Measure frequency response characteristics of filter System object |

## Examples

### Impulse and Frequency Response of FIR and IIR Lowpass Filters

Create a minimum-order FIR lowpass filter for data sampled at 44.1 kHz. Specify a passband frequency of 8 kHz, a stopband frequency of 12 kHz, a passband ripple of 0.1 dB, and a stopband attenuation of 80 dB.

Fs = 44.1e3; filtertype = 'FIR'; Fpass = 8e3; Fstop = 12e3; Rp = 0.1; Astop = 80; FIRLPF = dsp.LowpassFilter(SampleRate=Fs,... FilterType=filtertype,... PassbandFrequency=Fpass,... StopbandFrequency=Fstop,... PassbandRipple=Rp,... StopbandAttenuation=Astop);

Design a minimum-order IIR lowpass filter with the same properties as the FIR lowpass filter. Change the `FilterType`

property of the cloned filter to `IIR`

.

```
IIRLPF = clone(FIRLPF);
IIRLPF.FilterType = 'IIR';
```

Plot the impulse response of the FIR lowpass filter. The zeroth-order coefficient is delayed by 19 samples, which is equal to the group delay of the filter. The FIR lowpass filter is a causal FIR filter.

`fvtool(FIRLPF,Analysis='impulse')`

Plot the impulse response of the IIR lowpass filter.

`fvtool(IIRLPF,Analysis='impulse')`

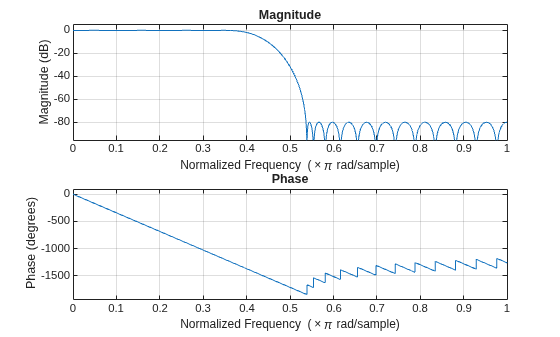

Plot the magnitude and phase response of the FIR lowpass filter.

`fvtool(FIRLPF,Analysis='freq')`

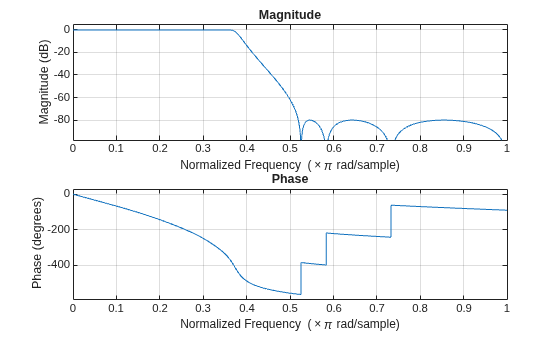

Plot the magnitude and phase response of the IIR lowpass filter.

`fvtool(IIRLPF,Analysis='freq')`

Calculate the cost of implementing the FIR lowpass filter.

cost(FIRLPF)

`ans = `*struct with fields:*
NumCoefficients: 39
NumStates: 38
MultiplicationsPerInputSample: 39
AdditionsPerInputSample: 38

Calculate the cost of implementing the IIR lowpass filter. The IIR filter is more efficient to implement than the FIR filter.

cost(IIRLPF)

`ans = `*struct with fields:*
NumCoefficients: 18
NumStates: 14
MultiplicationsPerInputSample: 18
AdditionsPerInputSample: 14

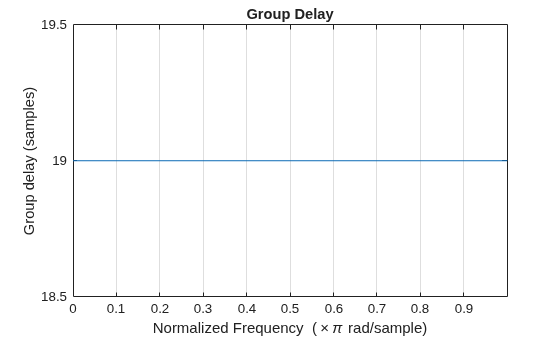

Calculate the group delay of the FIR lowpass filter.

grpdelay(FIRLPF)

Calculate the group delay of the IIR lowpass filter. The FIR filter has a constant group delay (linear phase), while its IIR counterpart does not.

grpdelay(IIRLPF)

### Filter White Gaussian Noise Signal With FIR Lowpass Filter

Create a lowpass filter using the `dsp.LowpassFilter`

System object™. Setting the `NormalizedFrequency`

property to `true`

designs the filter with frequency specifications in normalized frequency units.

LPF = dsp.LowpassFilter(NormalizedFrequency=true)

LPF = dsp.LowpassFilter with properties: FilterType: 'FIR' DesignForMinimumOrder: true PassbandFrequency: 0.3628 StopbandFrequency: 0.5442 PassbandRipple: 0.1000 StopbandAttenuation: 80 NormalizedFrequency: true Show all properties

Create a `spectrumAnalyzer`

object to visualize the input and output signal spectra. With a sample rate of 44.1e3 Hz, the passband frequency and the stopband frequency of the filter translate to 8000 Hz and 12000 Hz, respectively.

SA = spectrumAnalyzer(SampleRate=44.1e3,... PlotAsTwoSidedSpectrum=false,ShowLegend=true,... YLimits=[-150 30],... Title='Input Signal and Output Signal of Lowpass Filter'); SA.ChannelNames = {'Input','Output'};

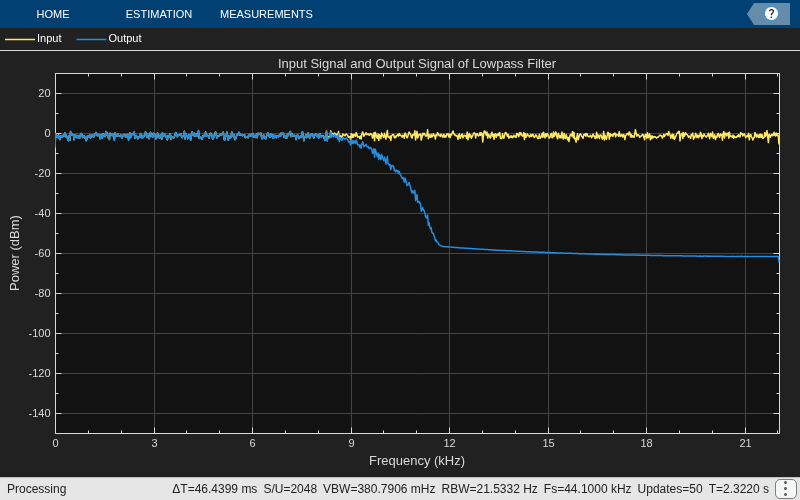

Run the lowpass filter algorithm to filter the white Gaussian noisy input signal. View the input and output signals using the spectrum analyzer.

for k = 1:100 Input = randn(1024,1); Output = LPF(Input); SA([Input,Output]); end

### Filter White Gaussian Noise with IIR Lowpass Filter

Set up the IIR lowpass filter. The sampling rate of the white Gaussian noise is 44,100 Hz. The passband frequency of the filter is 8 kHz, the stopband frequency is 12 kHz, the passband ripple is 0.1 dB, and the stopband attenuation is 80 dB.

Fs = 44.1e3; filtertype = 'IIR'; Fpass = 8e3; Fstop = 12e3; Rp = 0.1; Astop = 80; LPF = dsp.LowpassFilter(SampleRate=Fs,... FilterType=filtertype,... PassbandFrequency=Fpass,... StopbandFrequency=Fstop,... PassbandRipple=Rp,... StopbandAttenuation=Astop);

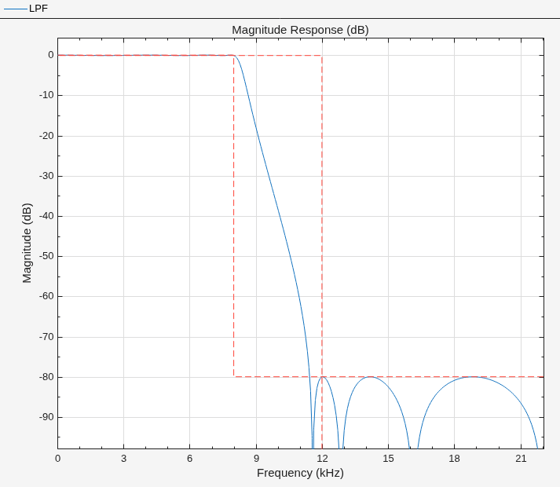

View the magnitude response of the lowpass filter.

fvtool(LPF)

Create a spectrum analyzer object.

SA = spectrumAnalyzer(SampleRate=Fs,... PlotAsTwoSidedSpectrum=false,... ShowLegend=true,YLimits=[-150 30],... Title='Input Signal and Output Signal of IIR Lowpass Filter'); SA.ChannelNames = {'Input','Output'};

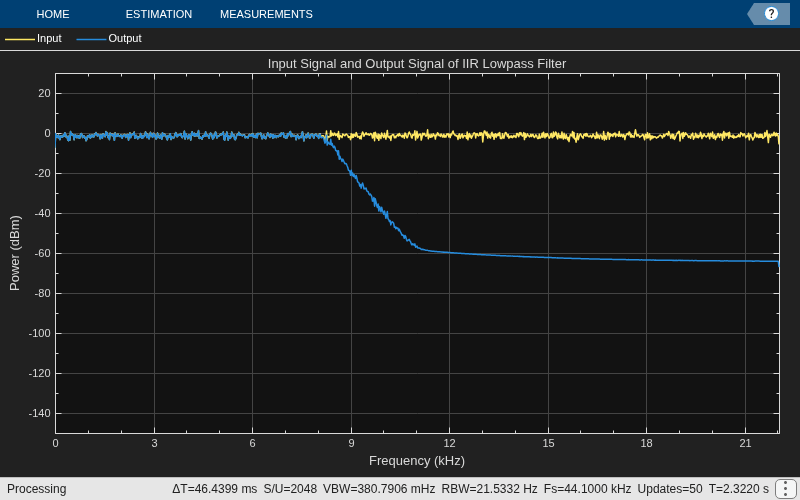

Filter the white Gaussian noisy input signal. View the input and output signals using the spectrum analyzer.

for k = 1:100 Input = randn(1024,1); Output = LPF(Input); SA([Input,Output]); end

### Measure Frequency Response Characteristics of Lowpass Filter

Measure the frequency response characteristics of a lowpass filter. Create a `dsp.LowpassFilter`

System object with default properties. Measure the frequency response characteristics of the filter.

LPF = dsp.LowpassFilter

LPF = dsp.LowpassFilter with properties: FilterType: 'FIR' DesignForMinimumOrder: true PassbandFrequency: 8000 StopbandFrequency: 12000 PassbandRipple: 0.1000 StopbandAttenuation: 80 NormalizedFrequency: false SampleRate: 44100 Show all properties

LPFMeas = measure(LPF)

LPFMeas = Sample Rate : 44.1 kHz Passband Edge : 8 kHz 3-dB Point : 9.1311 kHz 6-dB Point : 9.5723 kHz Stopband Edge : 12 kHz Passband Ripple : 0.08289 dB Stopband Atten. : 81.6141 dB Transition Width : 4 kHz

## Algorithms

### FIR Lowpass Filter

For the minimum order design, the algorithm uses generalized Remez FIR filter design algorithm. For the specified order design, the algorithm uses the constrained equiripple FIR filter design algorithm. The designed filter is then implemented as a linear phase Type-1 filter with a `Direct form`

structure.

### IIR Lowpass Filter

In the IIR configuration, the algorithm uses the elliptic design method to compute the SOS and scale values required to meet the filter design specifications. The algorithm uses the SOS and scale values to setup a `Direct form I`

biquadratic IIR filter, which forms the basis of the IIR version of the lowpass filter.

## References

[1] Shpak, D.J., and A. Antoniou. "A generalized Remez method for the design of FIR
digital filters." *IEEE ^{®} Transactions on Circuits and Systems*. Vol. 37, Issue 2, Feb. 1990,
pp. 161–174.

[2] Selesnick, I.W., and C. S. Burrus. "Exchange algorithms that complement the
Parks-McClellan algorithm for linear-phase FIR filter design." *IEEE Transactions on Circuits and Systems*. Vol. 44, Issue 2, Feb. 1997,
pp. 137–143.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

See System Objects in MATLAB Code Generation (MATLAB Coder).

This object supports code generation for ARM^{®}
Cortex^{®}-M and ARM
Cortex-A processors. To learn more about
ARM
Cortex code generation, see Code Generation for ARM Cortex-M and ARM Cortex-A Processors.

This object also supports SIMD code generation using Intel AVX2 technology under these conditions:

`FilterType`

is set to`'FIR'`

.Input signal has a data type of

`single`

or`double`

.

The SIMD technology significantly improves the performance of the generated code.

### HDL Code Generation

Generate Verilog and VHDL code for FPGA and ASIC designs using HDL Coder™.

This object supports HDL code generation with the Filter Design HDL Coder™ product. For workflows and limitations, see Generate HDL Code for Filter System Objects (Filter Design HDL Coder).

## Version History

**Introduced in R2015a**

### R2023a: Support for normalized frequencies

When you set the `NormalizedFrequency`

property to
`true`

, you must specify the passband and stopband frequencies in
normalized frequency units (0 to 1).

When you set the `NormalizedFrequency`

property to
`true`

while creating the object, the passband and stopband frequency
values are automatically set to normalized frequency units using the default sample rate of
44100 Hz.

lpFilter = dsp.LowpassFilter(NormalizedFrequency=true)

lpFilter = dsp.LowpassFilter with properties: FilterType: 'FIR' DesignForMinimumOrder: true PassbandFrequency: 0.3628 StopbandFrequency: 0.5442 PassbandRipple: 0.1000 StopbandAttenuation: 80 NormalizedFrequency: true

When you set the `NormalizedFrequency`

property to
`true`

after you create the object, the passband and stopband frequencies
must be manually set to the normalized frequency values before you run the object
algorithm.

lpFilter = dsp.LowpassFilter

lpFilter = dsp.LowpassFilter with properties: FilterType: 'FIR' DesignForMinimumOrder: true PassbandFrequency: 8000 StopbandFrequency: 12000 PassbandRipple: 0.1000 StopbandAttenuation: 80 NormalizedFrequency: false SampleRate: 44100

`NormalizedFrequency`

to
`true`

and manually convert the frequency values in Hz to normalized
values using the input sample rate in Hz. For example, if the input sample rate is 44100 Hz,
the corresponding values in normalized units are computed using these equations.lpFilter.NormalizedFrequency = true; lpFilter.PassbandFrequency = 8000/(44100/2); lpFilter.StopbandFrequency = 12000/(44100/2)

lpFilter = dsp.LowpassFilter with properties: FilterType: 'FIR' DesignForMinimumOrder: true PassbandFrequency: 0.3628 StopbandFrequency: 0.5442 PassbandRipple: 0.1000 StopbandAttenuation: 80 NormalizedFrequency: true

## See Also

### Functions

### Objects

### Blocks

## MATLAB 명령

다음 MATLAB 명령에 해당하는 링크를 클릭했습니다.

명령을 실행하려면 MATLAB 명령 창에 입력하십시오. 웹 브라우저는 MATLAB 명령을 지원하지 않습니다.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
