Downsample

Resample input at lower rate by deleting samples

•

Libraries:
DSP System Toolbox / Signal Operations
DSP System Toolbox HDL Support / Signal Operations

Description

The Downsample block decreases the sampling rate of the input by deleting samples. When the block performs frame-based processing, it resamples the data in each column of the P_i-by-Q input matrix independently. When the block performs sample-based processing, it treats each element of the input as a separate channel and resamples each channel of the input array across time. The resample rate is M times lower than the input sample rate, where M is the value of the downsample factor. The Downsample block resamples the input by discarding M–1 consecutive samples following each sample that is output.

This block supports triggered subsystems when you set the Rate options parameter to Enforce single-rate processing.

Examples

Downsample Signal in Single-Rate Frame-Based Processing Mode

In this example, the Downsample block decreases the sample rate by decreasing the frame size.

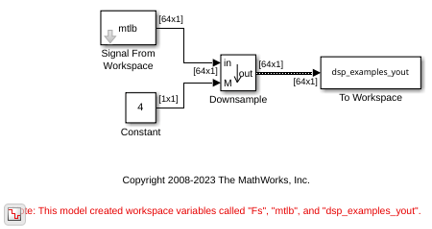

Open the model. The Downsample block resamples a single-channel input with a frame size of 64. In the dialog box of the Downsample block, the Downsample factor source parameter is set to Input port. This sets the Input processing and the Rate options parameters automatically to Columns as Channels (frame based) and Enforce single-rate processing, respectively. Specify a downsample factor of 4 from the input port.

Run the model. The block operates in the single-rate processing mode and downsamples the input by a factor of 4. The output of the block has a frame size of 64. As the block operates in the single-rate processing mode, the input and output signals of the Downsample block have the same frame rate. You can confirm this from the Timing Legend. To open the legend, click the Debug tab on the model toolstrip and click Information Overlays > Timing Legend.

Downsample Signal In Multirate Frame-Based Processing Mode

In this example, the Downsample block decreases the sample rate by decreasing the frame rate.

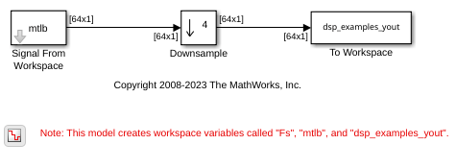

Open the model. The input to the Downsample block is a single-channel signal with a frame period of one second. In the block dialog box, set the Downsample factor, M to 4 and Rate options to Allow multirate processing.

Run the model. The block operates in the multirate frame-based processing mode. With a downsample factor of 4, the output of the block has a frame period of 4 seconds. You can confirm this from the Timing Legend. To open the legend, click the Debug tab on the model toolstrip and click Information Overlays > Timing Legend. As the block operates in the multirate processing mode, the input and output signals of the Downsample block have the same frame size.

Downsample a Signal with One Frame Latency

Downsample a signal by a factor of 2 using the Downsample block.

Open the System and Run the Model

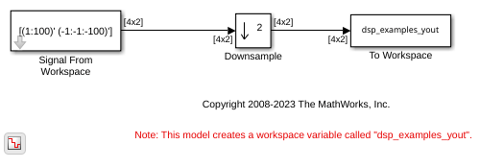

The Signal From Workspace block generates a two-channel signal with a frame size of 4. The timing legend shows the sample time of the signal before and after the downsampling operation. To see the legend, click the Debug tab > Information Overlapys > Timing Legend.

Run the model. The sample time of the signal before the downsampling operation is half the sample time of the signal after the operation.

One-Frame Latency

The Input processing parameter in the Downsample block is set to Columns as channels (frame based) and the input frame size (number of rows in the input) Mi is greater than 1. Hence, the latency of the signal is one frame. The Initial conditions parameter is set to [11 -11;12 -12;13 -13;14 -14]. In all cases of one-frame latency, the Mi rows of the initial condition matrix appear in sequence as the first four output rows. Input sample D+1 (that is, row D+1 of the input matrix) appears in the output as sample Mi+1, followed by input sample D+1+K, input sample D+1+2K, and so on.

• Mi - Number of input rows. In this example, Mi equals 4.

• D - Sample offset parameter. In this example, D equals 1.

• K - Downsample factor. In this example, K equals 2.

The Initial conditions value can be an Mi-by- N matrix containing one value for each channel, or a scalar to be repeated across all elements of the Mi-by- N matrix.

Here is the downsampled output signal written to the dsp_examples_yout variable in the base workspace.

dsp_examples_yout =

    11   -11
    12   -12
    13   -13
    14   -14
     2    -2
     4    -4
     6    -6
     8    -8
    10   -10
    12   -12
    14   -14
    16   -16
    18   -18
    20   -20
    22   -22
    24   -24
    26   -26
    28   -28
    30   -30
    32   -32
    34   -34
    36   -36
    38   -38
    40   -40
    42   -42
    44   -44
    46   -46
    48   -48
    50   -50
    52   -52
    54   -54
    56   -56
    58   -58
    60   -60
    62   -62
    64   -64
    66   -66
    68   -68
    70   -70
    72   -72
    74   -74
    76   -76
    78   -78
    80   -80
    82   -82
    84   -84
    86   -86
    88   -88
    90   -90
    92   -92
    94   -94
    96   -96
    98   -98
   100  -100
     0     0
     0     0
     0     0
     0     0
     0     0
     0     0
     0     0
     0     0
     0     0
     0     0

Extended Examples

Acoustic Noise Cancellation (LMS)

Use the Least Mean Square (LMS) algorithm to subtract noise from an input signal. The LMS adaptive filter uses the reference signal on the Input port and the desired signal on the Desired port to automatically match the filter response. As it converges to the correct filter model, the filtered noise is subtracted and the error signal should contain only the original signal.

Open Model

Ports

Input

in — Data input

column vector | matrix | N-D array

Input data for which you want to decrease the sample rate, specified as a column vector or a matrix.

When you set the Input processing parameter to Elements as channels (sample based), the input can be an N-D array.

The block supports variable-size input signals when you set Input processing to Columns as channels (frame based) and Rate options to Enforce single-rate processing, so the frame length (number of rows) and the number of channels (columns) can change during simulation. When the block accepts variable-size input signals, they can be of arbitrary frame length, that is, the input frame length does not have to be a multiple of the downsampling factor. When you specify fixed-size signals, the frame length can be arbitrary under certain conditions. For more details, see Frame-Based Processing and Sample-Based Processing.

This port is unnamed until you set Downsample factor source to Input port. (since R2023a)

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point
Complex Number Support: Yes

M — Downsample factor

positive integer

Since R2023a

Specify the downsample factor M as a positive integer.

Dependency

To enable this port, set the Downsample factor source parameter to Input port.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Output

Port_1 — Downsampled output

column vector | matrix

Downsampled output with a sampling rate that is 1/M times the input sampling rate, returned as a column vector or a matrix.

When you set Rate options to:

• Enforce single-rate processing –– The block maintains the input sample rate and downsamples the signal by decreasing the output frame size by a factor of M.

  The output has an upper bound size of ceil(P/M)-by-Q for an input of size P-by-Q.

• Allow multirate processing –– The block downsamples the signal such that the output sample rate is M times slower than the input sample rate.

  The output frame size is the same as the input frame size.

For more details, see Frame-Based Processing and Sample-Based Processing.

The output is a variable-size signal when any of these conditions are met:

• The input is a variable-size signal.

• The input is a fixed-size signal and the Allow arbitrary frame length for fixed-size input signals parameter is selected.

• Downsample factor is input through the port M (since R2023a)

When the output is a variable-size signal, the block maintains the phase across consecutive frames of data. For more details, see Phase Continuity.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point
Complex Number Support: Yes

Parameters

Downsample factor source — Source of downsample factor

Dialog parameter (default) | Input port

Since R2023a

Specify the downsample factor through one of these options:

• Dialog parameter –– The block enables the Downsample factor, M parameter in the block dialog box.

• Input port –– The block enables the input port M through which you specify the downsample factor.

Downsample factor, M — Downsampling factor

2 (default) | positive integer

Specify the integer factor M by which to decrease the input sample rate.

Dependency

To enable this parameter, set Downsample factor source to Dialog parameter. (since R2023a)

Sample offset (0 to M−1) — Sample offset

0 (default) | integer

The Sample offset (0 to M−1) parameter delays the output samples by an integer number of sample periods, D, where 0 ≤ D ≤ (M–1), so that you can select any of the M possible output phases. For example, when you downsample the sequence 1, 2, 3, ... by a factor of 4, you can select from four phases.

Input Sequence	Sample Offset, D	Output Sequence (M = 4)
1,2,3,...	0	1,5,9,13,17,21,25,29,...
1,2,3,...	1	0,2,6,10,14,18,22,26,...
1,2,3,...	2	0,3,7,11,15,19,23,27,...
1,2,3,...	3	0,4,8,12,16,20,24,28,...

The initial zero in the last three output sequences in the table is a result of the Initial conditions parameter being set to its default value of 0. See Latency for more information on the Initial conditions parameter.

When you input the downsample factor through the input port M, the Sample offset (0 to M−1) parameter is not enabled in the block dialog box. In this case, the sample offset D is automatically set to 0. (since R2023a)

Dependency

To enable this parameter, set Downsample factor source to Dialog parameter. (since R2023a)

Input processing — Method to process input

Columns as channels (frame based) (default) | Elements as channels (sample based)

Specify the method for input processing:

• Columns as channels (frame based) –– When you set the Input processing parameter to Columns as channels (frame based), the block treats each of the Q input columns as an individual channel containing P_i sequential time samples. The block downsamples each channel independently by discarding M–1 rows of the input matrix following each row that it outputs.

  For more information, see What Is Frame-Based Processing?.

• Elements as channels (sample based) –– When you set the Input processing parameter to Elements as channels (sample based), the input can be a Q-D array. The Downsample block treats each element of the input as a separate channel, and resamples each channel of the input over time. The block downsamples the input array by discarding M–1 samples following each sample that it passes through to the output. The input and output sizes of the Downsample block are identical.

  For more information, see What Is Sample-Based Processing?.

Dependency

To enable this parameter, set Downsample factor source to Dialog parameter. (since R2023a)

When you set Downsample factor source to Input port, the Input processing parameter is automatically set to Columns as channels (frame based). (since R2023a)

Rate options — Enforce single-rate or allow multirate processing

Enforce single-rate processing (default) | Allow multirate processing

Specify the method by which the block adjusts the rate at the output port to accommodate the reduced number of samples. The block performs single-rate or multirate processing depending on whether you set the Input processing parameter to Elements as channels (sample based) (sample-based processing mode) or Columns as channels (frame based) (frame-based processing mode).

• Elements as channels (sample based)

  • Enforce single-rate processing

    The block forces the output sample rate to match the input sample rate (T_so = T_si) by repeating every M^th input sample M times at the output. In this mode, the block behaves like the Sample and Hold block with a repeating trigger event of period MT_si.

  • Allow multirate processing

    The sample period of the output is M times longer than the input sample period (T_so = MT_si).

  For more details, see Sample-Based Processing

• Columns as channels (frame based)

  • Enforce single rate processing

    The block generates the output at the slower (downsampled) rate using a proportionally smaller frame size than the input. The output has an upper bound size of ceil(P/M), where P is the input frame length and M is the downsample factor. The input and output frame rates are equal. For more details, see Frame-Based Processing. For an example, see Downsample Signal in Single-Rate Frame-Based Processing Mode.

  • Allow multirate processing

    The block generates the output at the slower (downsampled) rate by using a proportionally longer frame period at the output port than at the input port. For downsampling by a factor of M, the output frame period is M times longer than the input frame period (T_fo = MT_fi), but the input and output frame sizes are equal. For more details, see Frame-Based Processing. For an example, see Downsample Signal In Multirate Frame-Based Processing Mode.

Dependency

To enable this parameter, set Downsample factor source to Dialog parameter. (since R2023a)

When you set Downsample factor source to Input port, the Rate options parameter is automatically set to Enforce single-rate processing. (since R2023a)

Allow arbitrary frame length for fixed-size input signals — Allow arbitrary frame length for fixed-size input signals

on (default) | off

Specify whether fixed-size input signals (size does not change during simulation) can have an arbitrary frame length, where the frame length does not have to be a multiple of the downsampling factor. The block uses this parameter setting only for fixed-size input signals and ignores this parameter if the input has a variable size.

When the input signal is a variable-size signal, the signal can have an arbitrary frame length, that is, the frame length does not have to be a multiple of the decimation factor.

For fixed-size input signals, if you:

• Select the Allow arbitrary frame length for fixed-size input signals parameter, the frame length of the signal does not have to be a multiple of the downsampling factor. If the input is not a multiple of the downsampling factor, then the output is generally a variable-size signal. Therefore, to support an arbitrary input size, the block must also support variable-size operations, which you can enable by selecting the Allow arbitrary frame length for fixed-size input signals parameter.

• Clear the Allow arbitrary frame length for fixed-size input signals parameter, the input frame length must be a multiple of the downsampling factor.

Dependency

To enable this parameter, set:

• Downsample factor source to Dialog parameter. (since R2023a)

• Input processing to Columns as channels (frame based).

• Rate options to Enforce single-rate processing.

Initial conditions — Initial value

0 (default) | real scalar | array

The initial block value for cases of nonzero latency. You can specify a scalar or an array of the same size as the input.

Dependencies

This parameter does not appear when Input processing is set to Columns as channels (frame based) and Rate options is set to Enforce single-rate processing.

Block Characteristics

Data Types	Boolean | double | fixed point | integer | single
Direct Feedthrough	no
Multidimensional Signals	no
Variable-Size Signals	yes
Zero-Crossing Detection	no

More About

Frame-Based Processing

When you set the Input processing parameter to Columns as channels (frame based) and use an input signal of size P-by-Q, the block treats each of the Q input columns as an individual channel containing P sequential time samples. The block downsamples each channel independently by discarding M–1 rows of the input matrix following each row that it outputs.

In this mode, the block can perform either single-rate or multirate processing. You can use the Rate options parameter to specify how the block adjusts the rate at the output to accommodate the reduced number of samples.

• When you set the Rate options parameter to Enforce single-rate processing, the block generates the output at the slower (downsampled) rate using a proportionally smaller frame size than the input.

  The output has an upper bound size of ceil(P/M), where P is the input frame length and M is the downsample factor.

  In this mode, if you input a fixed-size signal (signal dimensions do not change during simulation) and select the Allow arbitrary frame length for fixed-size input signals parameter, the input frame length can be arbitrary and does not have to be a multiple of the downsampling factor. If you clear the Allow arbitrary frame length for fixed-size input signals parameter, the input frame length must be a multiple of the downsampling factor.

  In this mode, if you input a variable-size signal (signal dimensions change during simulation), the Allow arbitrary frame length for fixed-size input signals appears on the block dialog box but does not have any impact on the input frame size requirements. You can input a variable-size signal of any frame size even if you do not select the Allow arbitrary frame length for fixed-size input signals parameter.

  This table summarizes the support for arbitrary input frame length when you set Input processing to Columns as channels (frame based) and Rate options to Enforce single-rate processing.

  Input Signal	Block Support for this Signal	Support for Arbitrary Input Frame Length	Input Size	Output Size
  Fixed-size input signal	Yes	When you select Allow arbitrary frame length for fixed-size input signals	P-by-Q	Upper bound size of ceil(P/M)-by-Q
  Variable-size input signal	Yes	Always	P-by-Q	Upper bound size of ceil(P/M)-by-Q

• When you set the Rate options parameter to Allow multirate processing, the input and output of the Downsample block are of the same size, but the sample rate of the output is M times slower than that of the input. In this mode, the block treats a P-by-Q matrix input as Q independent channels.

  In this mode, the block accepts only fixed-size signals and these signals can have an arbitrary frame length.

  This table summarizes the support for arbitrary input frame length when you set Input processing to Columns as channels (frame based) and Rate options to Allow multirate processing.

  Input Signal	Block Support for this Signal	Support for Arbitrary Input Frame Length	Input Size	Output Size
  Fixed-size input signal	Yes	Always	P-by-Q	P-by-Q
  Variable-size input signal	No	Not applicable	Not applicable	Not applicable

Phase Continuity

When you set the Input processing parameter to Columns as channels (frame based) and Rate options parameter to Enforce single-rate processing, under certain conditions, the Downsample block maintains the phase across consecutive frames of data.

Input Conditions	Downsample Factor Source	Support for Arbitrary Input Frame Length	Output Signal	Phase Continuity
Fixed-size input signal	Specify in block dialog box	When you select Allow arbitrary frame length for fixed-size input signals	Variable-size signal	Yes
Variable-size input signal	Specify in block dialog box	Always	Variable-size signal	Yes
Fixed-size or variable-size input signal	Specify through input port Downsample factor does not change during simulation	––	Variable-size signal	Yes

Under certain conditions, the phase resets to 0 and is not maintained across consecutive frames of data.

Input Conditions	Downsample Factor Source	Support for Arbitrary Input Frame Length	Output Signal	Phase Continuity
Fixed-size input signal	Specify in block dialog box	When you clear Allow arbitrary frame length for fixed-size input signals	Fixed-size signal	Phase is always 0
Fixed-size or variable-size input signal	Specify through input port At the event when downsample factor changes during simulation	––	Variable-size signal	Phase resets to 0

Sample-Based Processing

When you set the Input processing parameter to Elements as channels (sample based), the block treats a P-by-Q matrix input as P*Q independent channels, and resamples each channel over time. The output sample period (T_so) is M times longer than the input sample period (T_so = M*T_si), and the input and output sizes are identical.

In this mode, the block accepts only fixed-size signals and these signals can have an arbitrary frame length.

This table summarizes the support for arbitrary input frame length when you set Input processing to Elements as channels (sample based).

Input Signal	Block Support for this Signal	Support for Arbitrary Input Frame Length	Input Size	Output Size
Fixed-size input signal	Yes	Always	P-by-Q	P-by-Q
Variable-size input signal	No	Not applicable	Not applicable	Not applicable

Latency

Latency is the delay, measured in samples or frames, between the input and the output of the block.

The Downsample block has zero-tasking latency in the following cases:

• The downsample factor M is 1.

• The Input processing parameter is set to Columns as channels (frame based), and the Rate options parameter is set to Enforce single-rate processing.

• The Input processing parameter is set to Columns as channels (frame based), the Rate options parameter is set to Allow multirate processing, the Sample offset (0 to M−1) parameter D is set to 0, and the input frame size is equal to 1.

• The Input processing parameter is set to Elements as channels (sample based), and the Sample offset (0 to M−1) parameter D is 0.

Zero-tasking latency means that the block propagates input sample D+1 (received at t = 0) as the first output sample, followed by input sample D+1+M, input sample D+1+2M, and so on. When there is zero-tasking latency, the block ignores the value of the Initial conditions parameter.

In all other cases, the latency is nonzero:

• When the Input processing parameter is set to Elements as channels (sample based), the latency is one sample.

• When the Input processing parameter is set to Columns as channels (frame based) and the input frame size is greater than one, the latency is one frame.

In all cases of one-sample latency, the initial condition for each channel appears as the first output sample. Input sample D+1 appears as the second output sample for each channel, followed by input sample D+1+M, input sample D+1+2M, and so on. The Initial conditions parameter can be an array of the same size as the input or a scalar to be applied to all signal channels.

In all cases of one-frame latency, the P_i rows of the initial condition matrix appear in sequence as the first P_i output rows. Input sample D+1 (row D+1 of the input matrix) appears in the output as sample P_i+1, followed by input sample D+1+M, input sample D+1+2M, and so on. The Initial conditions value can be an P_i-by-Q matrix containing one value for each channel or a scalar to be repeated across all elements of the P_i-by-Q matrix.

Note

For more information on latency and the Simulink^® tasking modes, see Excess Algorithmic Delay (Tasking Latency) and Time-Based Scheduling and Code Generation (Simulink Coder).

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

Generated code relies on the memcpy or memset function (string.h) under certain conditions.

HDL Code Generation

Generate Verilog and VHDL code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

Best Practices

It is good practice to follow the Downsample block with a unit delay. Doing so prevents the code generator from inserting an extra bypass register in the HDL code.

See also Multirate Model Requirements for HDL Code Generation (HDL Coder).

HDL Architecture

This block has one default HDL architecture.

HDL Block Properties

ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays within your design. Distributed pipelining does not redistribute these registers. The default is 0. For more details, see ConstrainedOutputPipeline (HDL Coder).
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see InputPipeline (HDL Coder).
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see OutputPipeline (HDL Coder).

Complex Data Support

This block supports code generation for complex signals.

Restrictions

• Input processing set to Columns as channels (frame based) is not supported.

• For Input processing set to Elements as channels (sample based), select Allow multirate processing. With this setting, if Sample offset is set to 0, Initial conditions has no effect on generated code.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced before R2006a

R2023a: Tune downsample factor through input port

You can now specify the downsample factor through an input port when the Downsample block operates in the single-rate frame-based processing mode. When you specify the downsample factor through the input port, you can change the factor during simulation.

R2022b: Support for arbitrary input frame length and variable input frame sizes

Starting in R2022b, this block supports input signals with arbitrary frame lengths when the:

• Input signal is a fixed-size signal (signal dimensions do not change during simulation) and the block allows for multirate processing

• Input signal is a fixed-size signal, block enforces single-rate processing, and you select the Allow arbitrary frame length for fixed-size input signals parameter (if enabled)

• Input signal is a variable-size signal (signal dimensions change during simulation)

When this block supports an arbitrary frame length input signal, the input frame length does not have to be a multiple of the downsampling factor.

For more details, see Frame-Based Processing and Sample-Based Processing.
