applyTransform

Apply forward transformation to mesh vertices

Description

example

transformedMesh = applyTransform(mesh,T) applies the forward transformation matrix T to the vertices of the object mesh.

Examples

collapse all

This example shows how to create an extendedObjectMesh object and transform the object in a way defined by a given transformation matrix.

Create a cuboid mesh of unit dimensions.

cuboid = extendedObjectMesh('cuboid');

Create a transformation matrix that is a combination of a translation, a scaling, and a rotation.

T = makehgtform('translate',[0.2 -0.5 0.5],'scale',[0.5 0.6 0.7],'xrotate',pi/4);

Transform the mesh.

transformedCuboid = applyTransform(cuboid,T);

Visualize the mesh.

subplot(1,2,1);
show(cuboid);
title('Initial Mesh');
subplot(1,2,2);
show(transformedCuboid);
title('Transformed Mesh');

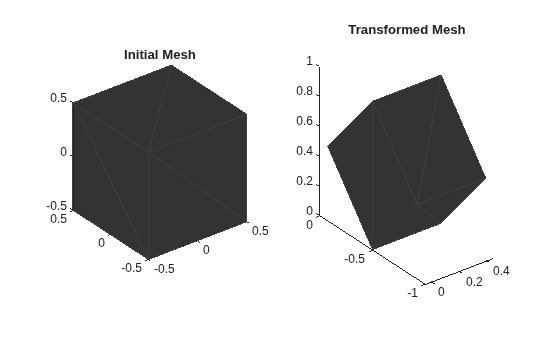

Figure contains 2 axes. Axes 1 with title Initial Mesh contains an object of type patch. Axes 2 with title Transformed Mesh contains an object of type patch.

Input Arguments

collapse all

Extended object mesh, specified as an extendedObjectMesh object.

Transformation matrix applied on the object mesh, specified as a 4-by-4 matrix. The 3-D coordinates of each point in the object mesh is transformed according to this formula:

[xT; yT; zT; 1] = T*[x; y; z; 1]

xT, yT, and zT are the transformed 3-D coordinates of the point.

Data Types: single | double

Output Arguments

collapse all

Transformed object mesh, returned as an extendedObjectMesh object.
