currentLane

Get current lane of actor

collapse all in page

Syntax

cl = currentLane(ac)
[cl,numlanes] = currentLane(ac)

Description

cl = currentLane(ac) returns the current lane, cl, of an actor, ac.

example

[cl,numlanes] = currentLane(ac) also returns the number of road lanes, numlanes.

Examples

collapse all

Open Script

Obtain the current lane boundaries of cars during a driving scenario simulation.

Create a driving scenario containing a straight, three-lane road.

scenario = drivingScenario;
roadCenters = [0 0; 80 0];
road(scenario,roadCenters,'Lanes',lanespec([1 2],'Width',3));

Add an ego vehicle moving at 20 meters per second and a target vehicle moving at 10 meters per second.

ego = vehicle(scenario,'ClassID',1,'Position',[5 0 0], ...
    'Length',3,'Width',2,'Height',1.6);
smoothTrajectory(ego,[1 0 0; 20 0 0; 30 0 0;50 0 0],20);

target = vehicle(scenario,'ClassID',1,'Position',[5 0 0], ...
    'Length',3,'Width',2,'Height',1.6);
smoothTrajectory(target,[5 -3 0; 20 -3 0; 30 -3 0;50 -3 0],10);

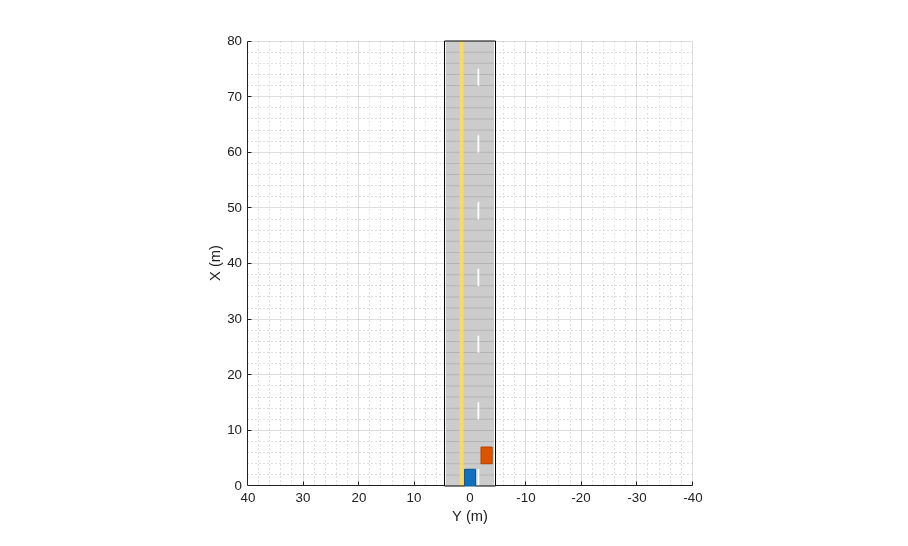

Plot the scenario.

plot(scenario)

Run the simulation loop.

while advance(scenario)
    [cl1,numlanes] = currentLane(ego);
    [cl2,numlanes] = currentLane(target);
end

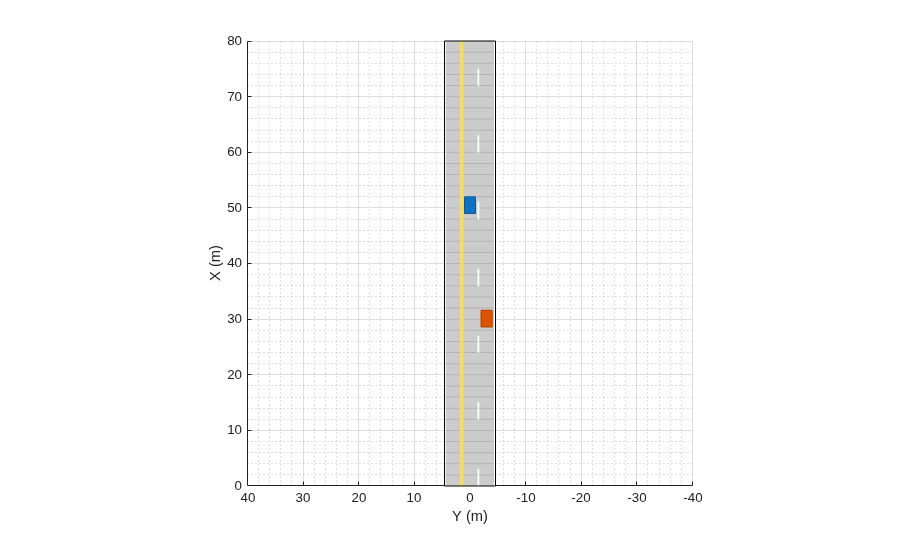

Display the current lane of each vehicle.

disp(cl1)
disp(cl2)

     2

     3

Input Arguments

collapse all

Actor belonging to a drivingScenario object, specified as an Actor or Vehicle object. To create these objects, use the actor and vehicle functions, respectively.

Output Arguments

collapse all

Current lane of the actor, returned as a positive integer. Lanes are numbered from left to right, relative to the actor, starting from 1. When the actor is not on a road or is on a road without any lanes specified, cl is returned as empty, [].

Number of lanes on the road that the actor is traveling on, returned as a positive integer. When the actor is not on a road or is on a road without any lanes specified, numlanes is returned as empty, [].

Version History

Introduced in R2018a
