Frequency Response Data (FRD) Models
Frequency Response Data
In the Control System Toolbox™ software, you can use
frd models to store, manipulate,
and analyze frequency response data. An
frd model stores a
vector of frequency points with the corresponding complex frequency response data
you obtain either through simulations or experimentally.
For example, suppose you measure frequency response data for the SISO system you want to model. You can measure such data by driving the system with a sine wave at a set of frequencies ω1, ω2, ,...,ωn, as shown:
At steady state, the measured response yi(t) to the driving signal at each frequency ωi takes the following form:
The measurement yields the complex frequency response G at each input frequency:
You can do most frequency-domain analysis tasks on
models, but you cannot perform time-domain simulations with them. For information on
frequency response analysis of linear systems, see Chapter 8 of .
Commands for Creating FRD Models
Use the following commands to create FRD models.
frd objects from frequency response
frestimate (Simulink Control Design)
frd objects by estimating the
frequency response of a Simulink® model. This approach requires Simulink
Control Design™ software. See Offline Frequency Response Estimation (Simulink Control Design) for more
Create Frequency Response Model from Data
This example shows how to create a single-input, single-output (SISO) frequency-response model using
A frequency-response model stores a vector of frequency points with corresponding complex frequency response data you obtain either through simulations or experimentally. Therefore, if you measure the frequency response of your system at a set of test frequencies, you can use the data to create a frequency response model.
Load the frequency response data in
This command loads the data into the MATLAB® workspace as the column vectors
resp. The variables
resp contain 256 test frequencies and the corresponding complex-valued frequency response points, respectively.
Create a frequency response model.
sys = frd(resp,freq);
sys is an
frd model object that represents frequency response data.
You can use

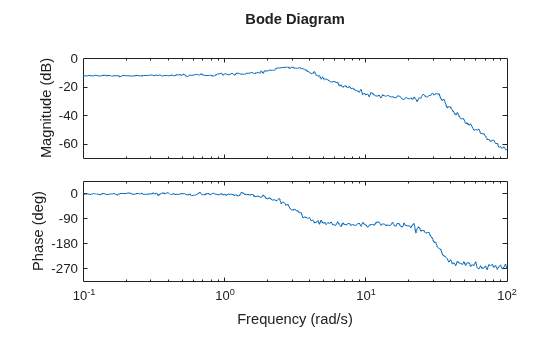

frd models with many frequency-domain analysis commands. For example, visualize the frequency response data using
By default, the
frd function assumes that the frequencies are in radians/second. To specify different frequency units, use the
FrequencyUnit properties of the
frd model object. For example, set the frequency units to radians/minute.
sys = frd(resp,freq,... "TimeUnit","min","FrequencyUnit","rad/TimeUnit");
