Decode Hamming code to recover binary vector data
Block sublibrary of Error Detection and Correction

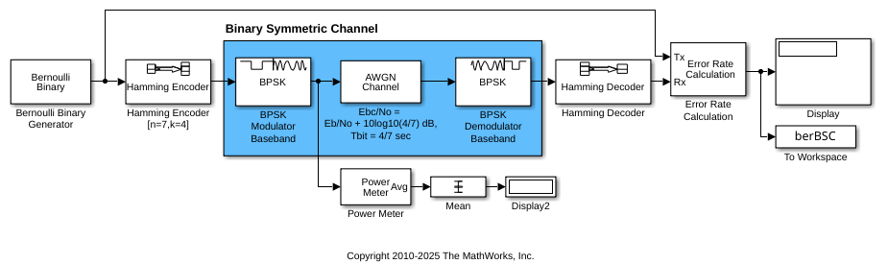

The Hamming Decoder block recovers a binary message vector from a binary Hamming codeword vector. For proper decoding, the parameter values in this block should match those in the corresponding Hamming Encoder block.
If the Hamming code has message length K and codeword length N, then N must have the form 2M-1 for some integer M greater than or equal to 3. Also, K must equal N-M.
This block accepts a column vector input signal of length N. The output signal is a column vector of length K.
The coding scheme uses elements of the finite field GF(2M). You can either specify the primitive polynomial that the algorithm should use, or you can rely on the default setting:
To use the default primitive polynomial, simply enter N and K as the first and second dialog parameters, respectively. The algorithm uses
gfprimdf(M)as the primitive polynomial for GF(2M).
To specify the primitive polynomial, enter N as the first parameter and a binary vector as the second parameter. The vector represents the primitive polynomial by listing its coefficients in order of ascending exponents. You can create primitive polynomials using the Communications Toolbox™
In addition, you can specify the primitive polynomial as a character vector, for example,
'D^3 + D + 1'.
For information about the data types each block port supports, see the Supported Data Type table on this page.
- Codeword length N
The codeword length N, which is also the input vector length.
- Message length K, or M-degree primitive polynomial
The message length, which is also the input vector length or a binary vector that represents a primitive polynomial for GF(2M) or a polynomial character vector.
Supported Data Type
|Supported Data Types
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Introduced before R2006a
