Would like to know what is this symbol and its function

조회 수: 3 (최근 30일)

Ying Jie Tan 2023년 10월 26일

0
링크

이 질문에 대한 바로 가기 링크

https://kr.mathworks.com/matlabcentral/answers/2079576-would-like-to-know-what-is-this-symbol-and-its-function

댓글: Ying Jie Tan 2023년 10월 26일

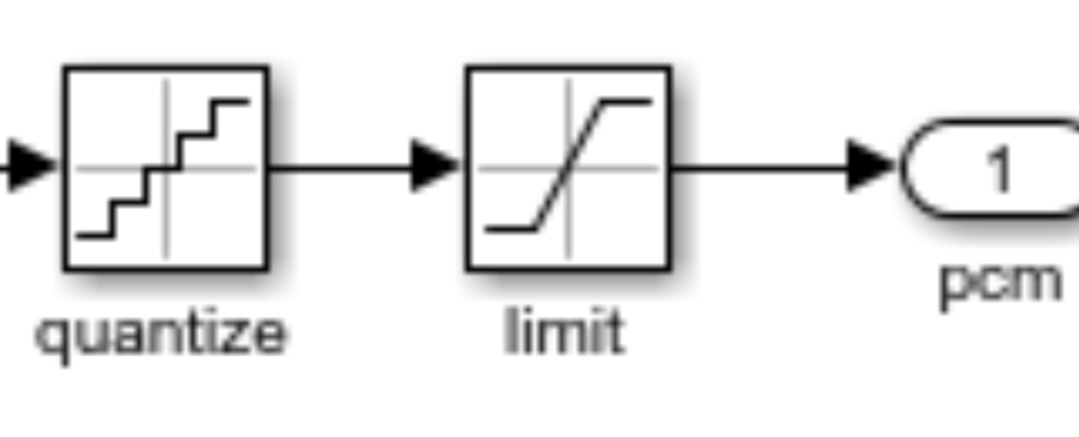

Good day community, can I know what is this symbol could be? It looks like a ramp/ continuous ramp. But I believe it is not both them. I saw someone connect it after a voltage/ current measurement. Can I know what is the function of this symbol too? Much appreciate for the answers given

댓글 수: 2
없음 표시없음 숨기기

Kilsu Kim 2023년 10월 26일

It looks like "Saturation" block but the direction of the block is opposite.

Ying Jie Tan 2023년 10월 26일

I've think about this before, but if Im not mistaken, the saturation block came with the y and x axis too right? Or we can hide that axes to become like the block I've attached above?
