wpviewcf
Plot wavelet packets colored coefficients
Description
Examples
View Wavelet Packet Coefficients
Create a wavelet packet tree using the Haar wavelet.
Fs = 200;
x = 0:1/Fs:1;
y = sin(8*pi*x);
t = wpdec(y,3,"haar");
Use plot

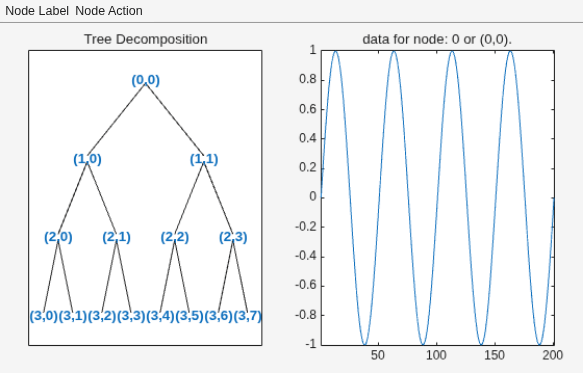

, the plot tree GUI, to plot the tree.
plot(t)

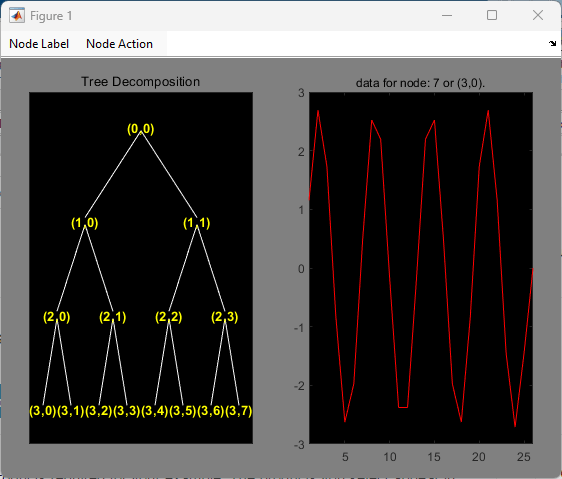

Click the node (3,0)
to get this figure:

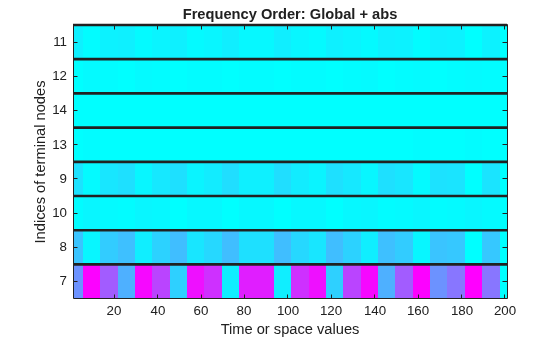

Plot the colored wavelet packet coefficients.
wpviewcf(t,1)
Input Arguments
T
— Wavelet packet tree
wptree
object
Wavelet packet tree, specified as a wptree
object.
cmode
— Color mode
1
| 2
| 3
| 4
| ...
Color mode to use to plot the coefficients, specified by one of the values listed here.
Color Mode | Description |
---|---|
1 | Frequency order – Global coloration – Absolute values |
2 | Frequency order – By level – Absolute values |
3 | Frequency order – Global coloration – Values |
4 | Frequency order – By level coloration – Values |
5 | Natural order – Global coloration – Absolute values |
6 | Natural order – By level – Absolute values |
7 | Natural order – Global coloration – Values |
8 | Natural order – By level coloration – Values |
nbcol
— Number of colors
positive integer
Number of colors to use to plot the coefficients, specified as a positive integer.
Version History
Introduced before R2006a
