# wmpalg

Matching pursuit

## Syntax

```YFIT = wmpalg(MPALG,Y,MPDICT) [YFIT,R] = wmpalg(...) [YFIT,R,COEFF] = wmpalg(...) [YFIT,R,COEFF,IOPT] = wmpalg(...) [YFIT,R,COEFF,IOPT,QUAL] = wmpalg(...) [YFIT,R,COEFF,IOPT,QUAL,X] = wmpalg(...) [YFIT,R,COEFF,IOPT,QUAL,X] = wmpalg(...,Name,Value) ```

## Description

`YFIT = wmpalg(MPALG,Y,MPDICT)` returns an adaptive greedy approximation, `YFIT`, of the input signal, `Y`, in the dictionary, `MPDICT`. The adaptive greedy approximation uses the matching pursuit algorithm, `MPALG`. The dictionary, `MPDICT`, is typically an overcomplete set of vectors constructed using `wmpdictionary`.

```[YFIT,R] = wmpalg(...)``` returns the residual, `R`, which is the difference vector between `Y` and `YFIT` at the termination of the matching pursuit.

```[YFIT,R,COEFF] = wmpalg(...)``` returns the expansion coefficients, `COEFF`. The number of expansion coefficients depends on the number of iterations in the matching pursuit.

```[YFIT,R,COEFF,IOPT] = wmpalg(...)``` returns the column indices of the retained atoms, `IOPT`. The length of `IOPT` equals the length of `COEFF` and is determined by the number of iterations in the matching pursuit.

```[YFIT,R,COEFF,IOPT,QUAL] = wmpalg(...)``` returns the proportion of retained signal energy, `QUAL`, for each iteration of the matching pursuit. `QUAL` is the ratio of the ℓ2 squared norm of the expansion coefficient vector, `COEFF`, to the ℓ2 squared norm of the input signal, `Y`.

```[YFIT,R,COEFF,IOPT,QUAL,X] = wmpalg(...)``` returns the normalized dictionary, `X`. `X` contains the unit vectors in the ℓ2 norm corresponding to the columns of `MPDICT`.

```[YFIT,R,COEFF,IOPT,QUAL,X] = wmpalg(...,Name,Value)``` returns an adaptive greedy approximation with additional options specified by one or more `Name,Value` pair arguments.

## Input Arguments

 `MPALG` Matching pursuit algorithm as a character vector or string scalar. Valid entries are: `'BMP'` — Basic matching pursuit`'OMP'` — Orthogonal matching pursuit`'WMP'` — Weak orthogonal matching pursuit Default: `'BMP'` `MPDICT` Matching pursuit dictionary. `MPDICT` is a N-by-P matrix where N is equal to the length of the input signal, `Y`. You can construct `MPDICT` using `wmpdictionary`. In matching pursuit, `MPDICT` is commonly a frame, or overcomplete set of vectors. You may use the Name-Value pair `'lstcpt'` to specify a dictionary instead of using `MPDICT`. If you specify a value for `'lstcpt'`, `wmpalg` calls `wmpdictionary`. `Y` Signal for matching pursuit. `Y` is 1-D, real-valued row or column vector. The row dimension of `MPDICT` must match the length of `Y`.

### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

 `'itermax'` Positive integer fixing the maximum number of iterations of the matching pursuit algorithm. If you do not specify a `'maxerr'` value, the number of expansion coefficients, `COEFF`, the number of dictionary vector indices, `IOPT`, and the length of the `QUAL` vector equal the value of `'itermax'`. Default: `25` `'lstcpt'` A cell array of cell arrays with valid subdictionaries. This name-value pair is only valid if you do not input a dictionary in `MPDICT`. Each cell array describes one subdictionary. Valid subdictionaries are: A valid Wavelet Toolbox™ orthogonal or biorthogonal wavelet family short name with the number of vanishing moments and an optional decomposition level and extension mode. For example, `{'sym4',5}` denotes the Daubechies least-asymmetric wavelet with 4 vanishing moments at level 5 and the default extension mode `'per'`. If you do not specify the optional number level and extension mode, the decomposition level defaults to 5 and the extension mode to `'per'`.A valid Wavelet Toolbox orthogonal or biorthogonal wavelet family short name preceded by `wp` with the number of vanishing moments and an optional decomposition level and extension mode. For example, `{'wpsym4',5}` denotes the Daubechies least-asymmetric wavelet packet with 4 vanishing moments at level 5. If you do not specify the optional number level and extension mode, the decomposition level defaults to 5 and the extension mode to `'per'`.`'dct'` Discrete cosine transform-II basis. The DCT-II orthonormal basis is: `${\varphi }_{k}\left(n\right)=\left\{\begin{array}{ll}\frac{1}{\sqrt{N}}\hfill & k=0\hfill \\ \sqrt{\frac{2}{N}}\mathrm{cos}\left(\frac{\pi }{N}\left(n+\frac{1}{2}\right)k\right)\hfill & k=1,2,\dots ,N-1\hfill \end{array}$``'sin'` Sine subdictionary. The sine subdictionary is: `${\varphi }_{k}\left(t\right)=\mathrm{sin}\left(2\pi kt\right)\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{ }k=1,2,\dots ⌈\frac{N}{2}⌉\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{ }0\le t\le 1$``'cos'` Cosine subdictionary. The cosine subdictionary is `${\varphi }_{k}\left(t\right)=\mathrm{cos}\left(2\pi kt\right)\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{ }k=1,2,\dots ⌈\frac{N}{2}⌉\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{ }0\le t\le 1$``'poly'` Polynomial subdictionary. The polynomial subdictionary is: `${p}_{n}\left(t\right)={t}^{n-1}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{ }n=1,2,\dots 20\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{ }\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{ }0\le t\le 1$``'RnIdent'` The shifted Kronecker delta subdictionary. The shifted Kronecker delta subdictionary is: `${\varphi }_{k}\left(n\right)=\delta \left(n-k\right)\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{ }k=0,1,\dots N$` If you use the `'lstcpt'` name-value pair to generate your dictionary, you can use the additional `'addbeg'` and `'addend'` name-value pairs to append and addend dictionary atoms. See `wmpdictionary` for details. `'maxerr'` Cell array containing the name of the norm and the maximum relative error in the norm expressed as a percentage. Valid norms are `'L1'`, `'L2'`, and `'Linf'`. The relative error expressed as a percentage is `$100\frac{‖R‖}{‖Y‖}$`where R is the residual at each iteration and Y is the input signal. For example, `{'L1',10}` sets maximum acceptable ratio of the L1 norms of the residual to the input signal to 0.10. If you specify `'maxerr'`, the matching pursuit terminates when the first of the following conditions is satisfied: The number of iterations reaches the minimum of the length of the input signal, `Y`, or 500: `min(length(Y),500)`The relative error falls below the percentage you specify with the `'maxerr'` name-value pair. `'stepplot'` Number of iterations between successive plots. `'stepplot'` requires a positive integer. This name-value pair is only valid when `'typeplot'` is 2 or 3 (`'movie'` or `'stepwise'`). `'typeplot'` Type of plot to produce during the progression of matching pursuit. Valid entries for `'typeplot'` are: `0` or `'none'`, `1` or `'one'`, `2` or `'movie'`, `3` or `'stepwise'`. When `'typeplot'` is `'movie'` or `'stepwise'`, the plot updates based on the value of `'stepplot'`. Default: `0` or `'none'` `'wmpcfs'` Optimality factor for weak orthogonal matching pursuit. The optimality factor is a real number in the interval (0,1]. This name-value pair is only valid when `MPALG` is `'WMP'`. Default: `0.6`

## Output Arguments

 `YFIT` Adaptive greedy approximation of the input signal, `Y`, in the dictionary `R` Residual after matching pursuit terminates `COEFF` Expansion coefficients in the dictionary. The selected dictionary atoms weighted by the expansion coefficients yield the approximated signal, `YFIT`. `IOPT` Column indices of the selected dictionary atoms. Using the column indices in `IOPT` with the expansion coefficients in `COEFF`, you can form the approximated signal, `YFIT`. `QUAL` Proportion of retained signal energy for each iteration in the matching pursuit. `QUAL` is a vector with each element equal to `$\frac{||{\alpha }_{k}|{|}_{2}^{2}}{||Y|{|}_{2}^{2}}$`where αk is the vector of expansion coefficients after the k-th iteration. `X` The normalized matching pursuit dictionary. `X` is an N-by-P matrix where N is the length of the input signal, `Y`. The columns of `X` have unit norm.

## Examples

collapse all

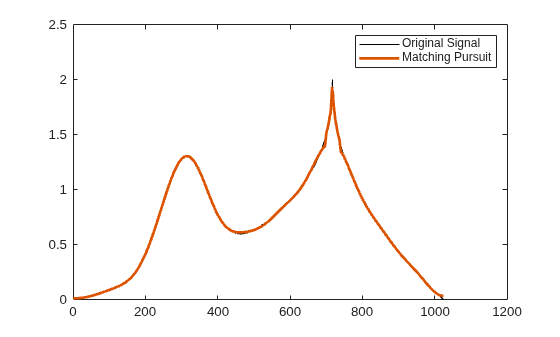

Approximate the `cuspamax` signal with the dictionary using orthogonal matching pursuit.

Use a dictionary consisting of `sym4` wavelet packets and the DCT-II basis.

```load cuspamax; mpdict = wmpdictionary(length(cuspamax),'LstCpt',... {{'wpsym4',2},'dct'}); yfit = wmpalg('OMP',cuspamax,mpdict); plot(cuspamax,'k'); hold on; plot(yfit,'linewidth',2); legend('Original Signal',... 'Matching Pursuit');```

Obtain the expansion coefficients in the dictionary, the column indices of the selected dictionary atoms, and the proportion of retained signal energy.

Create a dictionary consisting of `sym4` wavelet packets and the DCT-II basis. Approximate the `cuspamax` signal with the dictionary using orthogonal matching pursuit.

```load cuspamax; mpdict = wmpdictionary(length(cuspamax),'LstCpt',... {{'wpsym4',2},'dct'}); [yfit,r,coeff,iopt,qual] = wmpalg('OMP',cuspamax,mpdict);```

This example shows how to set the maximum number of iterations of the orthogonal matching pursuit to 50.

```load cuspamax; lstcpt = {{'wpsym4',1},{'wpsym4',2},'dct'}; mpdict = wmpdictionary(length(cuspamax),'LstCpt',lstcpt); [yfit,r,coeff,iopt,qual] = wmpalg('OMP',cuspamax,mpdict,... 'itermax',50);```

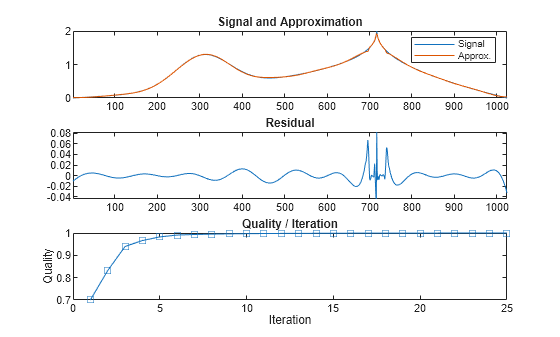

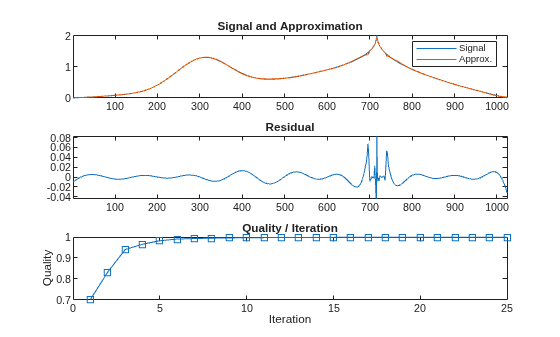

This example shows how to allow for a suboptimal choice in the update of the orthogonal matching pursuit. Relax the requirement to be 0.8 times the optimal assignment. Plot the results stepwise and update the plot every 5 iterations.

```load cuspamax; lstcpt = {{'wpsym4',1},{'wpsym4',2},'dct'}; mpdict = wmpdictionary(length(cuspamax),'LstCpt',lstcpt); [yfit,r,coeff,iopt,qual] = wmpalg('WMP',cuspamax,... mpdict,'wmpcfs',0.8, 'typeplot','stepwise','stepplot',3);```

Obtain a matching pursuit of electricity consumption measured every minute over a 24-hour period.

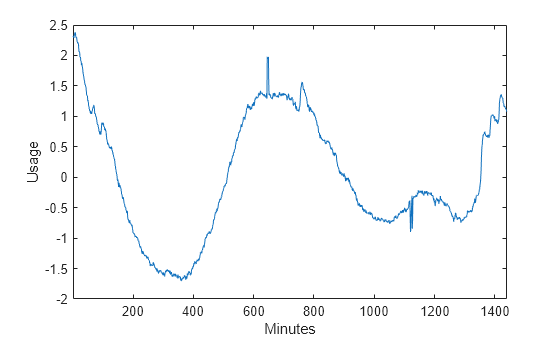

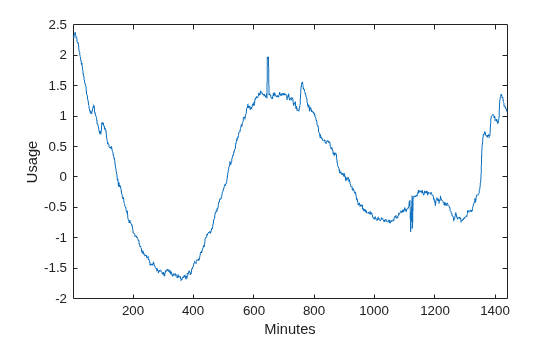

Load and plot data. The data shows electricity consumption sampled every minute over a 24-hour period. Because the data is centered, the actual usage values are not interpretable.

```load elec35_nor; y = signals(32,:); plot(y); xlabel('Minutes'); ylabel('Usage'); set(gca,'xlim',[1 1440]);```

Construct a dictionary for matching pursuit consisting of the Daubechies' extremal-phase wavelet with 2 vanishing moments at level 2, the Daubechies' least-asymmetric wavelet with 4 vanishing moments at levels 1 and 4, the discrete cosine transform-II basis, and the sine basis.

```dictionary = {{'db4',2},'dct','sin',{'sym4',1},{'sym4',4}}; [mpdict,nbvect] = wmpdictionary(length(y),'lstcpt',dictionary);```

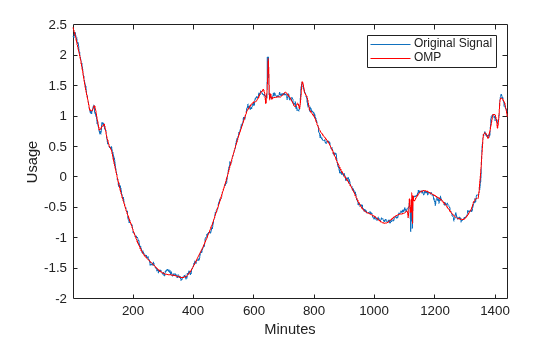

Implement orthogonal matching pursuit to obtain a signal approximation in the dictionary. Use 35 iterations. Plot the result.

```[yfit,r,coef,iopt,qual] = wmpalg('OMP',y,mpdict,'itermax',35); plot(y); hold on; plot(yfit,'r'); xlabel('Minutes'); ylabel('Usage'); legend('Original Signal','OMP','Location','NorthEast'); set(gca,'xlim',[1 1440]);```

Using the expansion coefficients in `coef` and the atom indices in `iopt`, construct the signal approximation, `yhat`, directly from the dictionary. Compare `yhat` with `yfit` returned by `wmpalg`.

```[~,I] = sort(iopt); X = mpdict(:,iopt(I)); yhat = X*coef(I); max(abs(yfit-yhat))```
```ans = 2.2204e-15 ```

## References

[1] Cai, T.T. and Wang,L. “Orthogonal Matching Pursuit for Sparse Signal Recovery with Noise”. IEEE® Transactions on Information Theory, vol. 57, 7, 4680–4688, 2011.

[2] Donoho, D., Elad, M., and Temlyakov, V. “Stable Recovery of Sparse Overcomplete Representations in the Presence of Noise”. IEEE Transactions on Information Theory. Vol. 52, 1, 6–18, 2004.

[3] Mallat, S. and Zhang, Z. “Matching Pursuits with Time-Frequency Dictionaries”. IEEE Transactions on Signal Processing, vol. 41, 12, 3397–3415, 1993

[4] Tropp, J.A. “Greed is good: Algorithmic results for sparse approximation”. IEEE Transactions on Information Theory, 50, pp. 2231–2242, 2004.
