Reconstruct Complete 3-D Scene Using Incremental Structure from Motion

Since R2026a
Open Live Script

After initialization with two views, the remaining views are processed to incrementally build the 3-D structure of the scene. The process of selecting the next best view is critical because each choice influences the stability and accuracy of all subsequent steps in the reconstruction.

The candidates for the next best view are the unprocessed images that contain a sufficient number of triangulated 3-D points. The optimal choice reduces camera pose uncertainty and contributes well-conditioned points to the structure.

Once the next view is selected, it is processed as follows:

  • Pose Estimation: Estimate the pose of the next view by solving the Perspective-n-Point (PnP) problem using 2-D feature correspondences to known 3-D points.

  • Triangulation: Triangulate new 3-D points using the pointTrack containing the next view.

  • Bundle Adjustment: Perform bundle adjustment to jointly refine the pose of the next view, the poses of views that share sufficient tracks with it, and all 3-D points observed by these views.

  • Re-Triangulation: Triangulate additional 3-D points with refined camera poses after each bundle adjustment. The improved poses increase triangulation accuracy and allow additional tracks to meet quality criteria.

Load Initial Reconstruction Data

First, load initial reconstruction created from the Reconstruct 3-D Scene from Geometrically Refined Pair of Initial Views example.

% Check if a view graph exists in workspace. If not, load it from MAT file.
downloadFolder = tempdir;
if ~exist("viewGraph", "var")
    reconstructFile = fullfile(downloadFolder, "sfmTrainingDataTUMRGBD", "initialReconstruction.mat");
    reconstructData = load(reconstructFile);
    viewGraph = reconstructData.viewGraph;
    wpSet = reconstructData.wpSet;
end

Load camera intrinsic parameters and the ground truth of camera poses.

% Load the camera intrinsics and ground truth poses
intrinsicsFile = fullfile(downloadFolder, "sfmTrainingDataTUMRGBD", "cameraInfo.mat");
data2 = load(intrinsicsFile);
intrinsics = data2.intrinsics;
gTruth     = data2.cameraPoses;

Ensure that the images are available on the path.

% Check if the image datastore exists. If not, load images.
if ~exist("imds", "var")
    imageFolder = fullfile(downloadFolder, "sfmTrainingDataTUMRGBD", "images");
    imds = imageDatastore(imageFolder);
end

Retrieve the pixel color for each 2-D feature point and store it to enable displaying a colored 3-D reconstruction.

point2dColors = cell(1, viewGraph.NumViews);

for viewId = 1:viewGraph.NumViews
    I = readimage(imds, viewId);
    currView = findView(viewGraph, viewId);
    imagePoints = currView.Points{:}.Location;
    idx = sub2ind(size(I,[1, 2]), round(imagePoints(:, 2)), round(imagePoints(:, 1)));
    R   = I(:,:,1);
    G   = I(:,:,2);
    B   = I(:,:,3);
    point2dColors{viewId}= [R(idx) G(idx) B(idx)];
end

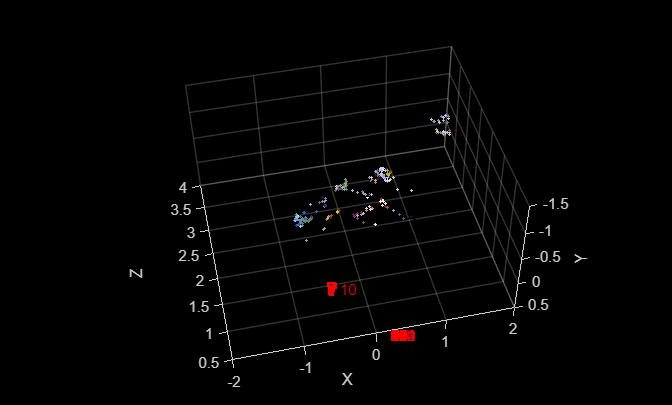

Display the initial 3-D points and the pair of camera poses.

point3dColors = helperGetpoint3dColors(wpSet, 1:wpSet.Count, point2dColors);

[ax,cam] = helperInitializePlot(viewGraph, wpSet, point3dColors);

Figure contains an axes object. The axes object with xlabel X, ylabel Y contains 1041 objects of type line, text, patch, scatter.

Find Point Tracks Across Views

To ensure reliable triangulation, only use point tracks that are observed in more than two views. Point tracks seen in just two views are provide weaker geometric constraints and are more susceptible to noise. Set the minNumViews variable to 3 to require point tracks are observed in at least 3 views. Increase the value of minNumViews to obtain more robust and stable, but fewer, 3-D points.

minNumViews = 3;
tracks = findTracks(viewGraph, MinTrackLength=minNumViews);
disp(numel(tracks)+" point tracks are found.")
9379 point tracks are found.

Process Views to Reconstruct the Scene

Now process the remaining views one by one.

processedViewIds = wpSet.ViewIds;
while numel(processedViewIds) < viewGraph.NumViews

Step 1: Select Next Best View

Select the next best view by minimizing camera-pose uncertainty while maximizing opportunities to extend the reconstructed 3-D structure.

Find Views with Covisible 3-D points

Find the views that share covisible 3-D point with processed views, and get their feature correspondences to known 3-D points.

    candidateViews = [];
    for i = 1:numel(processedViewIds)
        candidateViews = union(candidateViews, ...
            setdiff(connectedViews(viewGraph, processedViewIds(i)).ViewId, processedViewIds));
    end

    if isempty(candidateViews)
        break
    end

    % Find 2-D to 3-D Correspondences in covisible view
    correspondences = helperFindCorrespondences(candidateViews, viewGraph, wpSet);

Compute Visibility Score

To quantify uncertainty of each candidate view, count the number of reconstructed 3-D points that would be visible from that pose and evaluate how those points are distributed across the image at multiple resolutions. A view that sees more points and exhibits a more uniform spatial coverage across these scales receives a higher score.

    scores = zeros(numel(candidateViews),1);
    for i = 1:numel(scores)
        candidateView = findView(viewGraph, candidateViews(i));
        scores(i) = helperVisibilityScore(candidateView.Points{:}.Location(correspondences{i}(:,1),:), intrinsics.ImageSize);
    end

    % Pick the best view with highest visibility score
    [~, idx]   = max(scores);
    nextViewId = candidateViews(idx);
    nextView   = findView(viewGraph, nextViewId);
    nextViewCorrespondences = correspondences{idx};

Step 2: Estimate Camera Pose of Next View

Estimate Absolute Camera Pose

With 2-D to 3-D correspondences in the selected view, estimate the camera pose with the Perspective-n-Point algorithm using estworldpose and refine the camera pose by performing a motion-only bundle adjustment using bundleAdjustmentMotion.

    imagePoints = nextView.Points{:}(nextViewCorrespondences(:,1),:).Location;
    worldPoints = wpSet.WorldPoints(nextViewCorrespondences(:,2),:);

    maxAbsPoseError = 12; % in pixels
    % Estimate the camera pose of next view in the world coordinate system
    [worldPose, inlierIndex] = estworldpose(imagePoints, worldPoints, intrinsics, ...
        MaxReprojectionError=maxAbsPoseError, MaxNumTrials=1e4);

    inlierImagePoints=imagePoints(inlierIndex,:);
    inlierWorldPoints=worldPoints(inlierIndex,:);

    % Update 2-D to 3-D correspondences to get rid of outliers
    nextViewCorrespondences = nextViewCorrespondences(inlierIndex,:);

    % Perform motion-only bundle adjustment with inliers
    refinedPose = bundleAdjustmentMotion(inlierWorldPoints, inlierImagePoints, worldPose, intrinsics,...
        PointsUndistorted=true, AbsoluteTolerance=1e-9, RelativeTolerance=1e-16, MaxIterations=25);

Update View Graph and World Point Set

Update the view graph with the estimated camera pose.

    viewGraph = updateView(viewGraph, nextViewId, refinedPose);

Compute the relative pose between the next view and its connected views and update the connections.

    viewTable = connectedViews(viewGraph, nextViewId);
    connectedViewId = intersect(processedViewIds, viewTable.ViewId);
    for i = 1:numel(connectedViewId)
        relPose = rigidtform3d(findView(viewGraph, connectedViewId(i)).AbsolutePose.A\ refinedPose.A);
        if hasConnection(viewGraph, connectedViewId(i), nextViewId)
            viewGraph = updateConnection(viewGraph, connectedViewId(i), nextViewId, relPose);
        else
            viewGraph = updateConnection(viewGraph, nextViewId, connectedViewId(i), relPose.invert());
        end
    end

Add 2-D to 3-D correspondences to the world point set.

    wpSet = addCorrespondences(wpSet, nextViewId, nextViewCorrespondences(:,2), nextViewCorrespondences(:,1));

Step 3: Triangulate New 3-D Points

Triangulate new 3-D points from the point tracks that pass through the next view and do not have corresponding 3-D point in the next view.

Find Point Tracks of Next View

Find point tracks that pass through the next view, and extract the segment of the point track that have known camera poses, which are required for multi-view triangulation.

    [~, featureIndices] = findWorldPointsInView(wpSet,nextViewId);
    untriangulatedTracks = [];

    for trackIdx = 1:numel(tracks)
        currTrackSegment = tracks(trackIdx);
        hasNextView = ismember(nextViewId, currTrackSegment.ViewIds) && ...
            ~ismember(currTrackSegment.FeatureIndices(currTrackSegment.ViewIds==nextViewId), featureIndices);
        if hasNextView
            [currTrackSegment.ViewIds, ~, ib] = intersect([processedViewIds, nextViewId], currTrackSegment.ViewIds, "stable");

            if numel(ib) >= minNumViews
                currTrackSegment.FeatureIndices = currTrackSegment.FeatureIndices(ib);
                currTrackSegment.Points = currTrackSegment.Points(ib,:);
                untriangulatedTracks = [untriangulatedTracks, currTrackSegment]; %#ok<AGROW>
            end
        end
    end

RANSAC-Based Multi-View Triangulation

For each point track, perform multi-view triangulation. Point tracks may contain outliers due to geometric verification errors and ambiguous matches along an epipolar line from previous steps. A single mismatch can merge independent tracks and corrupt triangulation. To prevent this from happening, use ransac and triangulate to select a subset of observations that produce the best triangulation. Use maxReprojectionError and minTriangulationAngle to control the quality of triangulated 3-D points.

  • maxReprojectionError controls inlier selection during RANSAC, which affects both the number of observations used and their quality. Lower thresholds produce more accurate points by rejecting noisy observations, while higher thresholds accept more observations but may include outliers.

  • minTriangulationAngle ensures sufficient viewing angle between camera pairs to avoid ill-conditioned triangulation where small errors in 2-D observations lead to large errors in 3-D points.

    maxReprojectionError  = 4.0; % in pixels
    minTriangulationAngle = 1.5; % in degrees
    camPoses = poses(viewGraph, [processedViewIds, nextViewId]);
    for trackIdx = 1:numel(untriangulatedTracks)
        currTrackSegment = untriangulatedTracks(trackIdx);
        [xyzPoint, currTrackSegmentNew] = helperTriangulateMultiviewRANSAC(currTrackSegment, ...
            camPoses, intrinsics, MaxReprojectionError=maxReprojectionError, MinTriangulationAngle=minTriangulationAngle);

        if isempty(xyzPoint) || ~ismember(nextViewId, currTrackSegmentNew.ViewIds)
            continue
        end

Process the Triangulated 3-D Point

For each newly triangulated 3-D point, take one of the following actions:

  • Add. If none of the views in the point track has corresponding 3-D point, then add it to existing 3-D point set.

  • Merge. If the point track already has a corresponding 3-D point triangulated from previous views but not the next view, then reproject the existing 3-D point to the next view. If the reprojection error is below maxReprojectionError, merge the estimate with the existing 3-D point by computing an updated location as a weighted sum.

  • Discard. If the reprojection error exceeds the threshold, discard the newly triangulated 3-D point.

        % Check if triangulated points can be merged with existing 3-D points
        isMerged     = false;
        isDiscarded  = false;

        for j = 1:numel(currTrackSegmentNew.ViewIds)
            % Check if the track has a known 3-D point
            viewIdInTrack = currTrackSegmentNew.ViewIds(j);
            featureIdx = currTrackSegmentNew.FeatureIndices(j);
            [point3dIdx, point2dIdx] = findWorldPointsInView(wpSet, viewIdInTrack);
            [hasKnown3DPoint, Lib] = ismember(featureIdx, point2dIdx);

            if hasKnown3DPoint
                % Reproject the exiting 3-D point to the current
                % view and compute reprojection error
                currViewFeatureIdx = currTrackSegmentNew.FeatureIndices(currTrackSegmentNew.ViewIds==nextViewId);
                extrinsics         = nextView.AbsolutePose.invert();
                oldLocation        = wpSet.WorldPoints(point3dIdx(Lib),:);
                xy                 = world2img(oldLocation, extrinsics, intrinsics);
                reprojectionError  = norm(xy - nextView.Points{:}(currViewFeatureIdx).Location);

                % If reprojection error is low, merge the existing and the new triangulated 3-D points.
                % Otherwise, discard the triangulated point and keep the existing one.
                if reprojectionError < maxReprojectionError
                    % Compute merged 3-D point location as a weighted sum with the number of
                    % views as the weights
                    oldViews    = findViewsOfWorldPoint(wpSet, point3dIdx(Lib));
                    w1          = numel(oldViews);
                    w2          = numel(currTrackSegmentNew.ViewIds);
                    newLocation = (oldLocation * w1 + xyzPoint * w2) / (w1 + w2);

                    % Merge: Update 3-D point location and add 2-D to 3-D correspondence for the next view
                    wpSet       = updateWorldPoints(wpSet, point3dIdx(Lib), newLocation);
                    wpSet       = addCorrespondences(wpSet, nextViewId, point3dIdx(Lib), currViewFeatureIdx);
                    isMerged    = true;
                    break
                else
                    % Discard
                    isDiscarded = true;
                    break
                end
            end
        end

        % Add: If the triangulated point is not merged or discarded, add it to existing 3-D points.
        if ~isMerged && ~isDiscarded
            [wpSet, pointIndices] = addWorldPoints(wpSet, xyzPoint);

            % Add 2-D to 3-D correspondences
            for j = 1:numel(currTrackSegmentNew.ViewIds)
                viewIdInTrack = currTrackSegmentNew.ViewIds(j);
                wpSet = addCorrespondences(wpSet, viewIdInTrack, pointIndices, currTrackSegmentNew.FeatureIndices(j));
            end

            % Get color of triangulated points
            point3dColors(pointIndices,:) = helperGetpoint3dColors(wpSet, pointIndices, point2dColors);
        end

        % If a processed view is rejected during multi-view triangulation, remove its
        % 2-D to 3-D correspondence if the 3-D point is known before triangulation.
        [viewsRemoved, ia] = setdiff(currTrackSegment.ViewIds, currTrackSegmentNew.ViewIds, "stable");
        for k = 1: numel(viewsRemoved)
            viewIdInTrack = viewsRemoved(k);
            featureIdx = currTrackSegment.FeatureIndices(ia(k));
            [point3dIdx, point2dIdx] = findWorldPointsInView(wpSet, viewIdInTrack);
            [hasKnown3DPoint, Lib] = ismember(featureIdx,point2dIdx);
            if hasKnown3DPoint
                wpSet = removeCorrespondences(wpSet, viewIdInTrack, point3dIdx(Lib));
            end
        end
    end

Step 4: Iterative Bundle Adjustment and Re-Triangulation

Local Bundle Adjustment

To minimize accumulated errors during incremental SfM, it is essential to integrate bundle adjustment into the reconstruction pipeline after each round of multi-view triangulation. Since each new view primarily affects the local region of the scene, it is usually unnecessary to perform a global optimization after every addition. Instead, apply local bundle adjustment to refine the camera poses of the newly added view, its neighboring connected views that have large triangulation angle, and the 3-D points observed in these views.

    % Find the views to be refined
    [refinedViewIds, fixedViewIds] = helperFindViewToRefine(viewGraph, processedViewIds, nextViewId, wpSet);

    maxNumIterationsLocal = 2;
    for k = 1:maxNumIterationsLocal
        % Perform local bundle adjustment
        [wpSet, viewGraph, mapPointIdx, reprojectionErrors] = bundleAdjustment(...
            wpSet, viewGraph, [fixedViewIds; refinedViewIds; nextViewId], intrinsics, FixedViewIDs=fixedViewIds, ...
            PointsUndistorted=true, AbsoluteTolerance=1e-7, RelativeTolerance=1e-16, ...
            Solver="preconditioned-conjugate-gradient", MaxIterations=25);

To further enhance the quality of the reconstruction, identify and discard 3-D points with large reprojection errors after bundle adjustment. Bundle adjustment can be repeated until no more outlier points are detected or the maximum number of iterations (maxNumIterationsLocal) is reached. More iterations provides better convergence at the cost of slower reconstruction speed.

        isOutlierByError = reprojectionErrors > maxReprojectionError;
        if any(isOutlierByError)
            % Remove outlier 3-D points
            wpSet = removeWorldPoints(wpSet, mapPointIdx(isOutlierByError));

            % Remove color of 3-D points
            point3dColors(mapPointIdx(isOutlierByError),:) = [];
        else
            break
        end

Re-Triangulation

After each local bundle adjustment, repeat multi-view triangulation to recover additional 3-D points and improve the completeness of the reconstructed scene. The refined camera poses from bundle adjustment may enable successful triangulation of points that previously failed due to pose inaccuracies.

        % Get 2-D to 3-D correspondences of the next view after triangulation
        [~, featureIndices] = findWorldPointsInView(wpSet, nextViewId);

        for i = 1:numel(untriangulatedTracks)
            currTrackSegment = untriangulatedTracks(i);
            % Find point tracks that are not triangulated
            untriangulated = ~ismember(currTrackSegment.FeatureIndices(currTrackSegment.ViewIds==nextViewId), featureIndices);
            if untriangulated
                [wpSet,point3dColors] = helperTriangulate(nextView, camPoses, currTrackSegment, intrinsics, wpSet, point3dColors, point2dColors);
            end
        end
    end

Global Bundle Adjustment

Global bundle adjustment jointly refines all camera parameters and 3-D point across the entire scene. It is performed either after processing a substantial batch of views or once all images have been processed. This ensures the overall consistency and optimality of the reconstructed structure. Use batchSize to control the frequency of global bundle adjustment, and maxNumIterationsGlobal to control the convergence quality through iterative refinement.

    batchSize  = 10;
    maxNumIterationsGlobal= 5;

    needsGlobalBA = ~mod(numel(processedViewIds), batchSize) || numel(processedViewIds)==viewGraph.NumViews;
    if needsGlobalBA
        for iter = 1:maxNumIterationsGlobal
            [wpSet, viewGraph, mapPointIdx, reprojectionErrors] = bundleAdjustment(...
                wpSet, viewGraph, processedViewIds, intrinsics, FixedViewIDs=processedViewIds(1), ...
                PointsUndistorted=true, AbsoluteTolerance=1e-7, RelativeTolerance=1e-16, ...
                Solver="preconditioned-conjugate-gradient", MaxIterations=50);

            isOutlierByError = reprojectionErrors > maxReprojectionError;
            if any(isOutlierByError)
                wpSet = removeWorldPoints(wpSet, mapPointIdx(isOutlierByError));
                point3dColors(mapPointIdx(isOutlierByError), :)=[];
            else
                break
            end
        end
    end

    processedViewIds = [processedViewIds, nextViewId]; %#ok<*AGROW>

    % Display the 3-D points and camera poses
[ax,cam] = helperUpdatePlot(viewGraph, wpSet, point3dColors, ax, cam);
end

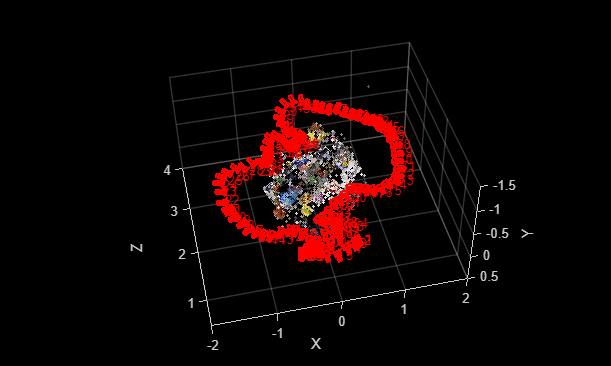

Figure contains an axes object. The axes object with xlabel X, ylabel Y contains 1041 objects of type line, text, patch, scatter.

disp(wpSet.Count + " out of " + numel(tracks) + " point tracks are successfully triangulated.")
7668 out of 9379 point tracks are successfully triangulated.

Compare Camera Poses Against Ground Truth

Compare the estimated camera poses with the ground truth poses.

camPoses = poses(viewGraph).AbsolutePose;
metrics = compareTrajectories(camPoses, gTruth, AlignmentType="similarity");

figure
metrics.plot("absolute-translation")
view(0,0)

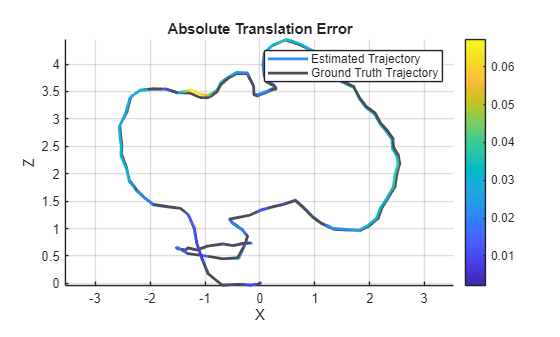

Figure contains an axes object. The axes object with title Absolute Translation Error, xlabel X, ylabel Y contains 2 objects of type patch, line. These objects represent Estimated Trajectory, Ground Truth Trajectory.

disp("RMSE of absolute rotation (deg): = " + metrics.AbsoluteRMSE(1));
RMSE of absolute rotation (deg): = 1.3285

disp("RMSE of absolute translation (m): = " + metrics.AbsoluteRMSE(2));
RMSE of absolute translation (m): = 0.024737

With the estimated camera poses and the sparse 3-D point cloud, you are now ready to perform dense reconstruction of the scene. See following examples for more details on the dense reconstruction workflow.

Supporting Files

helperFindCorrespondences compute visibility score for each candidate view.

function correspondences = helperFindCorrespondences(candidateViews, viewGraph, wpSet)

processedViewIds = wpSet.ViewIds;

% Store the feature indices and corresponding map point IDs for each
% candidate view
correspondences = cell(numel(candidateViews), 1);
for i = 1:numel(candidateViews)
    connViews = connectedViews(viewGraph, candidateViews(i));

    % Find the connected views within the processed views for each
    % candidate view
    connectedViewIds = intersect(processedViewIds, connViews.ViewId);

    correspondences{i} = zeros(0, 2);
    for j = 1:numel(connectedViewIds)
        % Find the map points observed in the connected view
        [pointIndices, featureIndices] = findWorldPointsInView(wpSet, connectedViewIds(j));

        if hasConnection(viewGraph, candidateViews(i), connectedViewIds(j))
            conn = findConnection(viewGraph, candidateViews(i), connectedViewIds(j));
            % Find the feature points in the current view with known 3-D
            % locations obtained from the connected view
            [~, ia, ib] = intersect(conn.Matches{:}(:,2), featureIndices, "stable");
            if ~isempty(ia)
                correspondences{i} = union(correspondences{i}, [conn.Matches{:}(ia,1), pointIndices(ib)], "rows");
            end
        else
            conn = findConnection(viewGraph, connectedViewIds(j), candidateViews(i));
            % Find the feature points in the current view with known 3-D
            % locations obtained from the connected view
            [~, ia, ib] = intersect(conn.Matches{:}(:,1), featureIndices, "stable");
            if ~isempty(ia)
                correspondences{i} = union(correspondences{i}, [conn.Matches{:}(ia,2), pointIndices(ib)], "rows");
            end
        end
    end
    [~, firstIdx] = unique(correspondences{i}(:, 2), "stable");
    correspondences{i} = correspondences{i}(firstIdx, :);
end
end

helperVisibilityScore compute visibility score for image points at different resolutions.

function score = helperVisibilityScore(imagePoints, imageSize)

height = imageSize(1);
width  = imageSize(2);

numLevels  = 6;
totalScore = 0;

% Calculate scores for each pyramid level
for level = 1:numLevels
    levelScore = (2^level)^2;

    % Calculate bin size for this level
    binsX = 2^level;
    binsY = 2^level;
    bin_width = width / binsX;
    bin_height = height / binsY;

    % Create occupancy grid for this level
    occupancy = false(binsY, binsX);

    % Mark occupied bins
    for i = 1:size(imagePoints, 1)
        x = imagePoints(i, 1);
        y = imagePoints(i, 2);

        % Convert to bin indices (0-based to 1-based)
        binX = min(floor(x / bin_width) + 1, binsX);
        binY = min(floor(y / bin_height) + 1, binsY);

        % Ensure indices are within bounds
        binX = max(1, min(binX, binsX));
        binY = max(1, min(binY, binsY));

        occupancy(binY, binX) = true;
    end

    % Add contribution from this level
    numOccupiedBins = sum(occupancy(:));
    totalScore = totalScore + numOccupiedBins * levelScore;
end
score = totalScore;
end

helperFindViewToRefine find view to be refined in local bundle adjustment.

function [refinedViewIds, fixedViewIds] = helperFindViewToRefine(viewGraph, processedViewIds, nextViewId, wpSet, args)
arguments
    viewGraph
    processedViewIds
    nextViewId
    wpSet
    args.MinNumRefinedViews    = 5
    args.MinTriangulationAngle = 6.0   % in degrees
    args.MaxNumFixedViews      = 5
end

[localViewTable, dist] = connectedViews(viewGraph,nextViewId,MaxDistance=2);
[localViewIds, ia] = intersect(localViewTable.ViewId, processedViewIds);

refinedViewIds = localViewIds(dist(ia)==1);

% Exclude views with low parallax
thetas75 = zeros(numel(refinedViewIds), 1);
[points3dIndices, points2dIndices] = findWorldPointsInView(wpSet, nextViewId);
for i = 1:numel(refinedViewIds)
    if hasConnection(viewGraph,refinedViewIds(i),nextViewId)
        conn = findConnection(viewGraph,refinedViewIds(i),nextViewId);
        matches = conn.Matches{:};
    else
        conn = findConnection(viewGraph,nextViewId,refinedViewIds(i));
        matches = conn.Matches{:}(:, [2 1]);
    end
    [~, ~, ib2] = intersect(matches(:,2), points2dIndices, "stable");
    points3d = wpSet.WorldPoints(points3dIndices(ib2), :);

    % Compute 75% percentile of triangulation angle
   thetas = helperComputeTriangulationAngle(points3d, poses(viewGraph).AbsolutePose([refinedViewIds(i), nextViewId]));
   thetas75(i) = quantile(thetas, 0.75);
end

% Pick views that have large parallax with the next view
hasLargeParallax = thetas75>args.MinTriangulationAngle;
if nnz(hasLargeParallax) < args.MinNumRefinedViews
    hasLargeParallax = thetas75>args.MinTriangulationAngle/2;
    if nnz(hasLargeParallax) < args.MinNumRefinedViews
        hasLargeParallax = thetas75>args.MinTriangulationAngle/4;
    end
end
refinedViewIds = refinedViewIds(hasLargeParallax);

fixedViewIds = localViewIds(dist(ia)==2);
fixedViewIds = fixedViewIds(1:min(numel(fixedViewIds), args.MaxNumFixedViews));
end

helperTriangulate create new 3-D point using RANSAC-based multi-view triangulation.

function [wpSet,point3dColors] = helperTriangulate(nextView, camPoses, currTrack, intrinsics, wpSet, point3dColors, point2dColors, args)
arguments
    nextView
    camPoses
    currTrack
    intrinsics
    wpSet
    point3dColors
    point2dColors
    args.MaxReprojectionError = 4
end

nextViewId = nextView.ViewId;

% After performing ransac-based triangulation, the point tracks are updated
% and some tracks may not contain the current view any more.
[xyzPoint, currTrackNew] = helperTriangulateMultiviewRANSAC(currTrack, camPoses, intrinsics);

if isempty(xyzPoint) || ~ismember(nextViewId, currTrackNew.ViewIds)
    return
end

isMerged = false;
isDiscarded = false;

for j = 1:numel(currTrackNew.ViewIds)
    viewIdToRemove = currTrackNew.ViewIds(j);
    featureIdx = currTrackNew.FeatureIndices(j);
    [point3dIdx, point2dIdx] = findWorldPointsInView(wpSet, viewIdToRemove);
    [Lia, Lib] = ismember(featureIdx,point2dIdx);

    % If an image point in the track already has a known 3-D point,
    % then check if the track is different and can be merged. If not,
    % then the triangulated 3-D point is contributed by refined current
    % view pose. The 2-D to 3-D correspondence was rejected when
    % estimating the current view pose, but now with refined view pose,
    % the correspondence becomes valid.
    if Lia
        currViewFeatureIdx = currTrackNew.FeatureIndices(currTrackNew.ViewIds==nextViewId);
        extrinsics = nextView.AbsolutePose.invert();
        oldLocation = wpSet.WorldPoints(point3dIdx(Lib),:);
        xy = world2img(oldLocation, extrinsics, intrinsics);
        reprojectionError = norm(xy - nextView.Points{:}(currViewFeatureIdx).Location);
        % Do not add the new 3-D point. Just add correspondence
        % between the existing 3-D point and the current view.
        if reprojectionError < args.MaxReprojectionError
            oldViews=findViewsOfWorldPoint(wpSet, point3dIdx(Lib));
            w1 = numel(oldViews);
            w2 = numel(currTrackNew.ViewIds);
            newLocation = (oldLocation * w1 + xyzPoint * w2) / (w1 + w2);
            wpSet = updateWorldPoints(wpSet, point3dIdx(Lib), newLocation);
            wpSet = addCorrespondences(wpSet, nextViewId, point3dIdx(Lib), currViewFeatureIdx);
            isMerged = true;
            break
        else
            isDiscarded = true;
            break
        end
    end
end

% If a processed view is rejected during triangulation of a point
% track, remove the 2-D to 3-D correspondence if the 3-D point is known
% before triangulation.
[viewsRemoved, ia] = setdiff(currTrack.ViewIds, currTrackNew.ViewIds, "stable");
for k = 1: numel(viewsRemoved)
    viewIdToRemove = viewsRemoved(k);
    featureIdx = currTrack.FeatureIndices(ia(k));
    [point3dIdx, point2dIdx] = findWorldPointsInView(wpSet, viewIdToRemove);
    [Lia, Lib] = ismember(featureIdx,point2dIdx);
    if Lia
        wpSet = removeCorrespondences(wpSet, viewIdToRemove, point3dIdx(Lib));
    end
end

if ~isMerged && ~isDiscarded

    [wpSet, pointIndices] = addWorldPoints(wpSet, xyzPoint);
    % Add 2-D to 3-D correspondences
    for j = 1:numel(currTrackNew.ViewIds)
        viewIdToRemove = currTrackNew.ViewIds(j);
        wpSet = addCorrespondences(wpSet, viewIdToRemove, pointIndices, currTrackNew.FeatureIndices(j));
    end

    point3dColors(pointIndices,:) = helperGetpoint3dColors(wpSet, pointIndices, point2dColors);
end
end

helperComputeTriangulationAngle computer triangulation angle of 3-D points for two cameras.

function theta = helperComputeTriangulationAngle(point3Ds, camPosePair)

camCenters = [camPosePair(1).Translation; camPosePair(2).Translation];

theta = zeros(size(point3Ds,1),1);
for j=1:size(point3Ds,1)
    rays = point3Ds(j,:) - camCenters;
    rays = rays ./ vecnorm(rays, 2, 2);

    cosTheta = dot(rays(1,:), rays(2,:));
    cosTheta = max(-1, min(1, cosTheta));
    theta(j) = acosd(cosTheta);
end
end

helperGetpoint3dColors compute color of 3-D points as the average of images that observe the points.

function point3dColors = helperGetpoint3dColors(wpSet, pointIndices, point2dColors)

point3dColors = zeros(numel(pointIndices), 3, "uint8");
for i = 1:numel(pointIndices)
    ptIdx = pointIndices(i);
    [viewIds, featureIndices] = findViewsOfWorldPoint(wpSet, ptIdx);
    allColors = zeros(numel(viewIds),3, "uint8");
    for idx = 1:numel(viewIds)
        allColors(idx,:) = point2dColors{viewIds(idx)}(featureIndices(idx), :);
    end
    point3dColors(i,:) = mean(allColors);
end
end

helperInitializePlot display 3-D points and camera poses

function [ax,cam] = helperInitializePlot(viewGraph, wpSet, point3dColors)

camPoses = poses(viewGraph);

f = figure;
f.Position(3:4)=1.2*f.Position(3:4);
f.Visible = "on";
ax = axes(f);

% Show 3-D points with colors
pcshow(wpSet.WorldPoints, point3dColors, Parent=ax, VerticalAxis="Y", ...
    VerticalAxisDir="Down", MarkerSize=30);
hold on

% Show camera poses
cam = plotCamera(camPoses, Size=0.05, Parent=ax);
ax.XLim = [-2, 2];
ax.YLim = [-1.5, 0.5];
ax.ZLim = [0.5, 4];
xlabel("X");
ylabel("Y");
zlabel("Z");
end

helperUpdatePlot update 3-D points and camera poses in the plot

function [ax, cam] = helperUpdatePlot(viewGraph, wpSet, point3dColors, ax, cam)

processedViewIds = wpSet.ViewIds;
camPoses = poses(viewGraph, processedViewIds).AbsolutePose;
% Update camera poses
for i = 1:numel(processedViewIds)
    cam(processedViewIds(i)).AbsolutePose = camPoses(i);
end

% Update 3-D point locations and colors
ax.Children(end).XData=wpSet.WorldPoints(:,1);
ax.Children(end).YData=wpSet.WorldPoints(:,2);
ax.Children(end).ZData=wpSet.WorldPoints(:,3);
ax.Children(end).CData=point3dColors;
drawnow limitrate
end

See Also

| | | | | | | |

Topics
