multiSensorParameters
R2026bDescription
The multiSensorParameters object stores a collection of mounting
poses and optional intrinsic parameters for multiple sensors, expressed in a common reference
coordinate system.
You can create a multiSensorParameters object using the
multiSensorParameters function described here. Use this object to manage
a set of sensors (for example, cameras, lidars, or IMUs) and query their poses, intrinsic
parameters, and their cross-sensor transformations.
The object stores one row per sensor in the Sensors table and tracks
the total number of sensors in Count. The
ReferenceFrame property specifies the coordinate system in which all
mounting poses are represented.
Creation
Syntax
Description
multiSensorObj = multiSensorParametersmultiSensorObj object, which can store the sensor
poses and intrinsic parameters for multiple sensors.
multiSensorObj = multiSensorParameters(PropertyName=Value)Count=2 sets the number of sensors to 2.
Properties
Object Functions
Examples
Import sensor mounting poses and intrinsic parameters from a YAML file from the Pandaset data set [1] into MATLAB® and store them in a multiSensorParameters object. The Pandaset data set uses a multi-sensor rig consisting of six cameras and two lidar sensors all rigidly mounted on the roof of a vehicle.
Download and Extract Sensor Parameters
Download the YAML file from the Pandaset Devkit [2], and save it to the current directory.
downloadURL = "https://raw.githubusercontent.com/scaleapi/pandaset-devkit/master/docs/static_extrinsic_calibration.yaml"; yamlFileName = "static_extrinsic_calibration.yaml"; websave(yamlFileName,downloadURL);
Read the YAML file using the helperParsePandasetYAML helper function, which returns a structure containing the sensor parameters. The file contains parameters for eight sensors:
Six cameras:
back_camera,front_camera,front_left_camera,front_right_camera,left_camera, andright_cameraTwo lidar sensors:
main_pandar64andfront_gt
Each sensor stores its extrinsic parameters as a rotation quaternion (w, x, y, z) and a translation vector (x, y, z). Camera sensors additionally include intrinsic parameters: a 3-by-3 camera matrix K and distortion coefficients D. The main_pandar64 lidar defines the reference frame as it is mounted at the origin.
data = helperParsePandasetYAML(yamlFileName)
data = struct with fields:
back_camera: [1×1 struct]
front_camera: [1×1 struct]
front_gt: [1×1 struct]
front_left_camera: [1×1 struct]
front_right_camera: [1×1 struct]
left_camera: [1×1 struct]
main_pandar64: [1×1 struct]
right_camera: [1×1 struct]
Add Sensor Mounting Poses and Intrinsic Parameters
Create a multiSensorParameters object to store the sensor mounting poses. In this data set, the extrinsic parameters for each sensor represent a transformation from the reference frame, which is defined by the main_pandar64 lidar sensor, to the frame of that sensor. Inverting the extrinsic parameters provides the transformation from the sensor frame to the reference frame. Use addSensor to add each sensor to the multiSensorParameters object by specifying its transformation to the reference sensor main_pandar64. For the cameras, use the cameraIntrinsicsFromOpenCV function to create cameraIntrinsics objects from their camera matrices and distortion coefficients.
% Get sensor names sensorNames = string(fieldnames(data)); % Create multiSensorParameters object and add the reference sensor first refSensor = "main_pandar64"; multiSensorObj = multiSensorParameters(ReferenceFrame=refSensor); multiSensorObj = addSensor(multiSensorObj,refSensor,"lidar",rigidtform3d()); % Process each remaining sensor for i = 1:length(sensorNames) sensorName = sensorNames(i); if sensorName == refSensor continue end sensorData = data.(sensorName); % Determine sensor type: non-camera sensors in this file are lidar % sensors if contains(sensorName, "camera") sensorType = "camera"; else sensorType = "lidar"; end % Create extrinsic parameters from quaternions and translations, then invert to get % the transformations from the sensor frame to the reference frame quat = [sensorData.qw,sensorData.qx,sensorData.qy,sensorData.qz]; trvec = [sensorData.tx,sensorData.ty,sensorData.tz]; extrinsics = se3(quat,"quat",trvec); tformTRef = inv(extrinsics); % Add each sensor to the multiSensorParameters object if sensorType == "camera" % Extract intrinsic parameters intrinsicsMatrix = reshape(sensorData.K,3,3)'; distortionCoefficients = sensorData.D; % All cameras have the same image resolution imageSize = [1080 1920]; % Create cameraIntrinsics object camIntrinsics = cameraIntrinsicsFromOpenCV(intrinsicsMatrix,distortionCoefficients,imageSize); % Add camera with intrinsics multiSensorObj = addSensor(multiSensorObj,sensorName,sensorType,tformTRef,refSensor, ... Intrinsics=camIntrinsics); else % Add sensor without intrinsics multiSensorObj = addSensor(multiSensorObj,sensorName,sensorType,tformTRef,refSensor); end end
Visualize the sensor mounting configuration in the reference frame main_pandar64.
plot(multiSensorObj, ShowFrameAxisLabels=false);
hold off
Change Reference Frame to Vehicle Coordinate System
For automated driving applications, the vehicle coordinate system follows the ISO 8855 convention: the origin is on the ground directly below the midpoint of the rear axle, with the x-axis pointing forward, y-axis pointing left, and z-axis pointing up. In the Pandar64 reference frame used by your multiSensorParameters object,
, the x-axis points to the left of the vehicle and the y-axis points backward, which corresponds to a 90-degree rotation about the z-axis relative to the vehicle frame. The Pandar64 lidar sensor is mounted on the roof of the vehicle, approximately 0.36 m forward of and 1.85 m above the rear axle center. Use the changeReferenceFrame object function to transform all sensor mounting poses from the Pandar64 frame to the vehicle coordinate system.
% Pandar64 [X, Y, Z] axes correspond to [Y, -X, Z] in the vehicle frame, % which is a 90-degree rotation about the Z-axis. pandarRotation = [0 -1 0; 1 0 0; 0 0 1]; % Pandar64 position, in vehicle coordinates: [forward,left,up] in meters pandarTranslation = [0.36 0 1.85]; pandarToVehicleTransform = se3(pandarRotation,pandarTranslation); multiSensorObj = changeReferenceFrame(multiSensorObj,pandarToVehicleTransform,"vehicle");

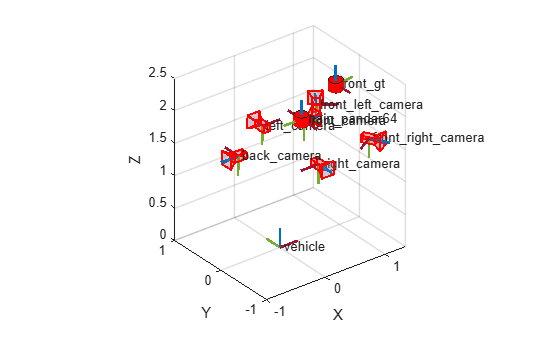

Visualize the sensor mounting configuration in the vehicle coordinate system.
plot(multiSensorObj, ShowFrameAxisLabels=false);
References
[1] Xiao, Pengchuan, Zhenlei Shao, Steven Hao, et al. “PandaSet: Advanced Sensor Suite Dataset for Autonomous Driving.” 2021 IEEE International Intelligent Transportation Systems Conference (ITSC), September 19, 2021, 3095–101. https://doi.org/10.1109/ITSC48978.2021.9565009.
[2] Scale AI. pandaset-devkit. https://github.com/scaleapi/pandaset-devkit.
Import the mounting poses and intrinsic parameters of sensors on the TurtleBot3 Waffle Pi robot [1] from a Unified Robot Description Format (URDF) file into MATLAB®, and store them in a multiSensorParameters object. The robot includes a Raspberry Pi camera, a 360-degree LDS lidar, and an IMU, all rigidly mounted to the robot base using fixed joints.
Import Robot Model
Import the URDF file as a rigidBodyTree (Robotics System Toolbox) object. Each rigid body in the tree represents a component of the robot, and each joint defines the spatial relationship between connected components.
urdfFileName = "robotisTurtleBot3WafflePi.urdf";
robot = importrobot(urdfFileName);
showdetails(robot)-------------------- Robot: (10 bodies) Idx Body Name Joint Name Joint Type Parent Name(Idx) Children Name(s) --- --------- ---------- ---------- ---------------- ---------------- 1 base_link base_joint fixed base_footprint(0) camera_link(2) caster_back_left_link(5) caster_back_right_link(6) imu_link(7) base_scan(8) wheel_left_link(9) wheel_right_link(10) 2 camera_link camera_joint fixed base_link(1) camera_rgb_frame(3) 3 camera_rgb_frame camera_rgb_joint fixed camera_link(2) camera_rgb_optical_frame(4) 4 camera_rgb_optical_frame camera_rgb_optical_joint fixed camera_rgb_frame(3) 5 caster_back_left_link caster_back_left_joint fixed base_link(1) 6 caster_back_right_link caster_back_right_joint fixed base_link(1) 7 imu_link imu_joint fixed base_link(1) 8 base_scan scan_joint fixed base_link(1) 9 wheel_left_link wheel_left_joint revolute base_link(1) 10 wheel_right_link wheel_right_joint revolute base_link(1) --------------------
Extract Sensor Transforms
The addSensor object function expects transformations from each sensor frame to the reference frame, but the camera on this robot has a chain of frames from camera_link to camera_rgb_frame to camera_rgb_optical_frame. For a camera, the sensor frame is the optical frame, and the optical frame camera_rgb_optical_frame where the z-axis points forward along the optical axis. For details, see . The lidar sensor corresponds to the base_scan body, and the IMU corresponds to imu_link.
sensorNames = ["camera_rgb_optical_frame","imu_link","base_scan"];
Use getTransform (Robotics System Toolbox) to compute the transformation from the working frame of each sensor to the base, accounting for the entire kinematic chain. This is important for the camera, where the optical frame connects to the base through multiple intermediate frames.
% Initialize sensor transformations for all three sensors tformToRef = repmat(se3,1,3); % Get transformation from working frame from each sensor to the robot base config = homeConfiguration(robot); for i = 1:numel(sensorNames) tform = getTransform(robot,config,sensorNames(i),robot.BaseName); tformToRef(i) = se3(tform); end
Extract Sensor Intrinsic Parameters
The URDF file contains sensor-specific parameters in Gazebo extension tags, including camera field of view, image dimensions, and IMU noise characteristics. Use the helperExtractSensorIntrinsicsFromURDF helper function to parse the file and extract the camera and IMU sensor parameters.
params = helperExtractSensorIntrinsicsFromURDF(urdfFileName)
params = struct with fields:
camera: [1×1 struct]
imu: [1×1 struct]
Compute the focal length of the camera from the horizontal field of view, assuming a pinhole camera model with square pixels and the principal point at the image center. Then, construct a camera intrinsic parameters object using cameraIntrinsicsFromOpenCV with the intrinsic matrix and distortion coefficients.
imageSize = params.camera.imageSize; focalLength = (imageSize(2)/2)/tan(params.camera.horizontalFOV/2); principalPoint = imageSize([2 1])/2; intrinsicMatrix = [focalLength,0,principalPoint(1);0,focalLength,principalPoint(2);0,0,1]; camIntrinsics = cameraIntrinsicsFromOpenCV(intrinsicMatrix,params.camera.distortion,imageSize);
Construct a factorIMUParameters (Navigation Toolbox) object, from the IMU noise parameters. The URDF file provides noise standard deviations, which must be squared to get the variances required by factorIMUParameters.
imuIntrinsics = factorIMUParameters( ... GyroscopeNoise=params.imu.rateNoise.stddev^2, ... GyroscopeBiasNoise=params.imu.rateNoise.biasStddev^2, ... AccelerometerNoise=params.imu.accelNoise.stddev^2, ... AccelerometerBiasNoise=params.imu.accelNoise.biasStddev^2);
Add Sensors to multiSensorParameters
Create a multiSensorParameters object and set the reference frame as the base name of the robot platform. Then add all sensors using the transformations from the sensor frame to the reference frame.
multiSensorObj = multiSensorParameters(ReferenceFrame=robot.BaseName); multiSensorObj = addSensor(multiSensorObj,sensorNames(1),"camera",tformToRef(1),Intrinsics=camIntrinsics); multiSensorObj = addSensor(multiSensorObj,sensorNames(2),"IMU",tformToRef(2),Intrinsics=imuIntrinsics); multiSensorObj = addSensor(multiSensorObj,sensorNames(3),"lidar",tformToRef(3));
Visualize Sensor Configuration
Visualize the sensor mounting poses in the reference frame base_footprint.
plot(multiSensorObj,SensorSize=0.02,FrameSize=0.05);
References
[1] https://emanual.robotis.com/docs/en/platform/turtlebot3/features/. Accessed on April 10th, 2026
Version History
Introduced in R2026b
