scale

Scale mesh in each dimension

Since R2020b

Description

example

scaledMesh = scale(mesh,scaleFactor) scales the object mesh by scaleFactor. scaleFactor can be the same for all dimensions or defined separately as elements of a 1-by-3 vector in the order x, y, and z.

scaledMesh = scale(mesh,[sx sy sz]) scales the object mesh along the dimensions x, y, and z by the scaling factors sx, sy, and sz.

Examples

collapse all

Create an extendedObjectMesh object and scale the object.

Construct a cuboid mesh of unit dimensions.

 cuboid = extendedObjectMesh('cuboid');

Scale the mesh by different factors along each of the three axes.

scaledCuboid = scale(cuboid,[100 30 20]);

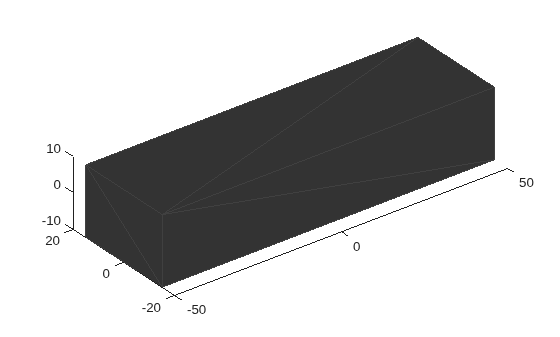

Visualize the mesh.

show(scaledCuboid);

Input Arguments

collapse all

Extended object mesh, specified as an extendedObjectMesh object.

Scaling factor for the object mesh, specified as a positive real scalar or as a 1-by-3 vector in the order x, y, and z.

Data Types: single | double

Scaling factor for x-axis, specified as a positive real scalar.

Data Types: single | double

Scaling factor for y-axis, specified as a positive real scalar.

Data Types: single | double

Scaling factor for z-axis, specified as a positive real scalar.

Data Types: single | double

Output Arguments

collapse all

Scaled object mesh, returned as an extendedObjectMesh object.

Version History

Introduced in R2020b
