Custom Data Communication
R2026bEfficiently pack data for transmission and interpret received data for reliable communication between STM32 processors and other devices. Use the blocks to create and manage custom communication formats for STM32 processors to exchange information accurately with external devices.
Blocks
 | Byte Pack | Convert input signals to uint8 vector |
 | Byte Unpack | Convert uint8 vector to input signals |
 | Byte Reversal | Reverse order of bytes in input word |
 | CAN Pack | Pack individual signals into CAN message |
 | CAN Unpack | Unpack individual signals from CAN messages |
 | CAN FD Pack | Pack individual signals into message for CAN FD bus |
 | CAN FD Unpack | Unpack individual signals from CAN FD messages |
 | Memory Copy | Copy data from and to memory section |
 | Idle Task | Create free-running task (Since R2024a) |
 | Protocol Encoder | Encode input data into a uint8 byte stream by specifying the packet structure (Since R2023a) |
 | Protocol Decoder | Decode a uint8 byte stream by specifying the packet structure (Since R2023a) |
 | Execution Profiler | Profile execution time of functions using either DWT Timer, GPIO or Timer measurement modes (Since R2025a) |
 | Register Read/Write | Read from or write to various bit fields of STM32 registers (Since R2026a) |
Topics
- Configure STM32CubeMX with Simulink
Configure STM32 processor-based boards using an STM32CubeMX project in Simulink.
- Set Up Scheduling Options for STM32 Processor-Based Boards
Configure single-rate or multi-rate scheduling on an STM32 processor.
Featured Examples
Send and Receive CAN or FDCAN Messages on a STM32 processor
Exchange data between STM32 processor based boards using CAN or FDCAN communication.

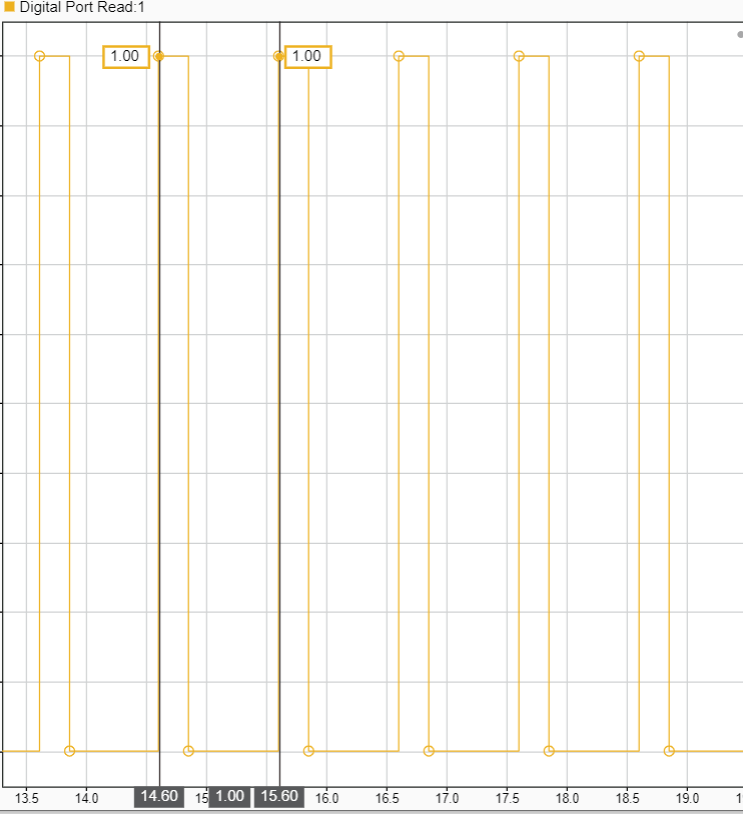

Signal Monitoring and Parameter Tuning of Generated PWM Output
Generate PWM signals on an STM32 processor-based board and tune parameters in real time using External mode.

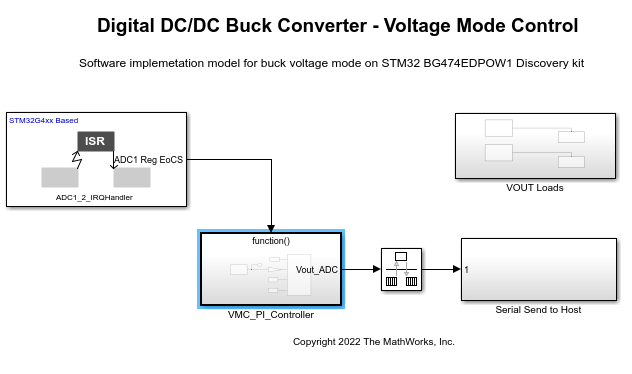

Voltage Mode Control of DC-DC Buck Converter and Boost Converter Using STMicroelectronics STM32 Processor
Implement a DC-DC buck converter or Boost Converter control system using the B-G474E-DPOW1 Discovery kit for STM32™ Microcontroller Blockset.

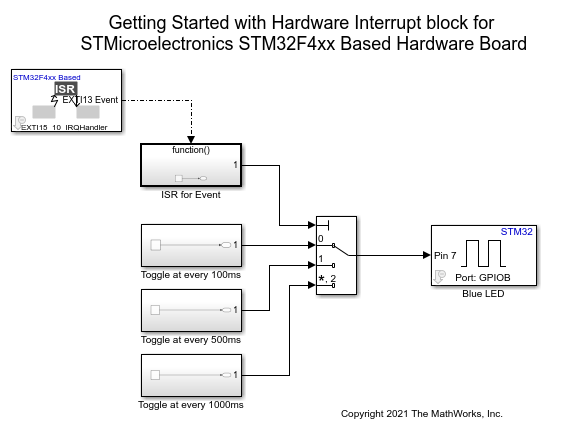

Using Hardware Interrupt Block to Create an ISR on STMicroelectronics STM32 Processor Based Boards
Use a Hardware Interrupt block to create an interrupt service routine (ISR) in the generated code for STM32™ Microcontroller Blockset.

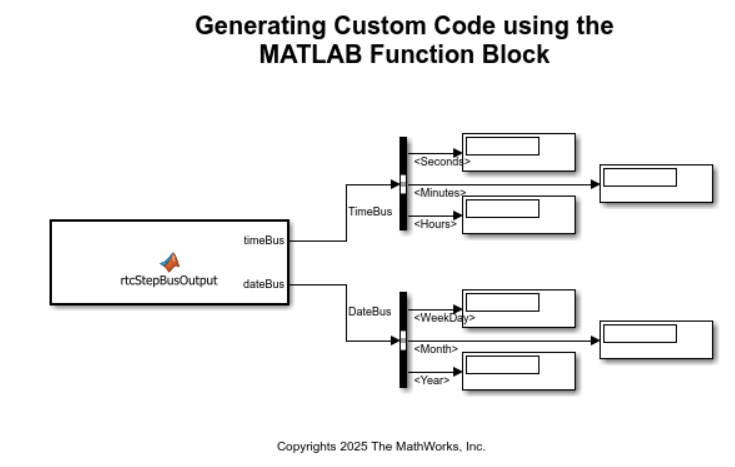

Custom Code Integration for STM32 Processors
Integrate custom C code into a Simulink® model by implementing a real-time clock (RTC) peripheral on STM32 processor based boards. The example shows how to call external driver code, exchange data between Simulink and the hardware, and compare different integration methods.
