Model Discretizer selectively replaces continuous Simulink^{®} blocks with discrete equivalents. Discretization is a critical step in digital
controller design and for hardware in-the-loop simulations.

You can use the Model Discretizer to:

Identify a model's continuous blocks

Change a block's parameters from continuous to discrete

Apply discretization settings to all continuous blocks in the model or selected blocks

Create configurable subsystems that contain multiple discretization candidates along with the original continuous block(s)

Switch among the different discretization candidates and evaluate the resulting model simulations

To use Model Discretizer

You must have a Control System Toolbox™ license, Version 5.2 or later.

Make sure your model does not contain any obsolete blocks and is upgraded to the current Simulink version. For more information, see Model Upgrades

To discretize a model:

Start the Model Discretizer

Specify the Transform Method

Specify the Sample Time

Specify the Discretization Method

Discretize the Blocks

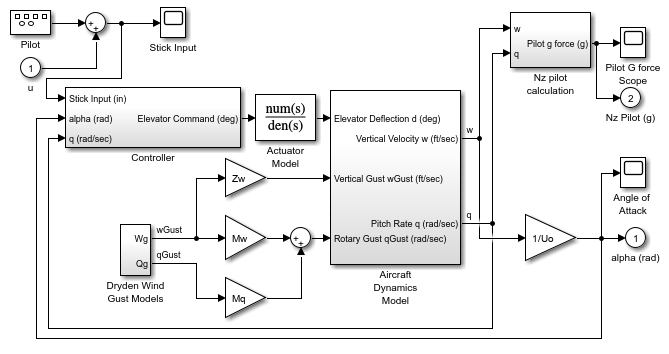

The `f14`

model shows the steps in discretizing a model.

To open the tool, in the Simulink Editor, on the **Apps** tab, under
**Apps**, under **Control Systems**, click
**Model Discretizer**.

The **
Simulink Model Discretizer** opens.

Alternatively, you can open Model Discretizer from the MATLAB^{®} Command Window using the `slmdldiscui`

function.

The following command opens the **Simulink Model Discretizer** window
with the `f14`

model:

slmdldiscui('f14')

To open a new model or library from Model Discretizer, select **File** > ** Load model**.

The transform method specifies the type of algorithms used in the discretization. For more information on the different transform methods, see the Control System Toolbox.

The **Transform method** list contains the following options:

`Zero-order hold`

Zero-order hold on the inputs.

`First-order hold`

Linear interpolation of inputs.

`Tustin`

Bilinear (Tustin) approximation.

`Tustin with prewarping`

Tustin approximation with frequency prewarping.

`Matched pole-zero`

Matched pole-zero method (for SISO systems only).

Enter the sample time in the **Sample time** field. For
the Model Discretizer, this value must be numeric.

You can specify an offset time by entering a two-element vector for discrete blocks or configurable subsystems. The first element is the sample time and the second element is the offset time. For example, an entry of [1.0 0.1] would specify a 1.0 second sample time with a 0.1 second offset. If no offset is specified, the default is zero.

You can enter workspace variables when discretizing blocks in the s-domain. See Discrete blocks (Enter parameters in s-domain).

Specify the discretization method in the **Replace current
selection with** field. The options are

Discrete blocks (Enter parameters in s-domain)

Creates a discrete block whose parameters are retained from the corresponding continuous block.

Discrete blocks (Enter parameters in z-domain)

Creates a discrete block whose parameters are “hard-coded“ values placed directly into the block's dialog.

Configurable subsystem (Enter parameters in s-domain)

Create multiple discretization candidates using s-domain values for the current selection. A configurable subsystem can consist of one or more blocks.

Configurable subsystem (Enter parameters in z-domain)

Create multiple discretization candidates in z-domain for the current selection. A configurable subsystem can consist of one or more blocks.

**Discrete blocks (Enter parameters in s-domain). **Creates a discrete block whose parameters are retained from the corresponding
continuous block. The sample time and the discretization parameters are also on the
block's parameter dialog box.

The block is implemented as a masked discrete block that uses `c2d`

to transform the continuous parameters to discrete parameters in the
mask initialization code.

These blocks have the unique capability of reverting to continuous behavior if the
sample time is changed to zero. Entering the sample time as a workspace variable
(`'Ts'`

, for example) allows for easy changeover from continuous to
discrete and back again. See Specify the Sample Time.

If you generated code from a model, parameters are not tunable when **Default parameter behavior** is set to
`Inlined`

in the model's Configuration Parameters dialog
box.

The following figure shows a continuous Transfer Function block next to a Transfer Function block that has been discretized in the s-domain. The block parameters dialog box for each block appears below the block.

**Discrete blocks (Enter parameters in z-domain). **Creates a discrete block whose parameters are “hard-coded” values
placed directly into the block's dialog box. Model Discretizer uses the `c2d`

function to obtain the discretized parameters, if needed.

For more help on the `c2d`

function, type the following in the
Command Window:

help c2d

The following figure shows a continuous Transfer Function block next to a Transfer Function block that has been discretized in the z-domain. The block parameters dialog box for each block appears below the block.

If you want to recover exactly the original continuous parameter values after the Model Discretization session, you should enter parameters in the s-domain.

**Configurable subsystem (Enter parameters in s-domain). **Create multiple discretization candidates using s-domain values for the current
selection. A configurable subsystem can consist of one or more blocks.

The **Location for block in configurable subsystem**
field becomes active when this option is selected. This option allows you to either
create a new configurable subsystem or overwrite an existing one.

The current folder must be writable in order to save the library or libraries for the configurable subsystem option.

**Configurable subsystem (Enter parameters in z-domain). **Create multiple discretization candidates in z-domain for the current selection. A
configurable subsystem can consist of one or more blocks.

The **Location for block in configurable subsystem**
field becomes active when this option is selected. This option allows you to either
create a new configurable subsystem or overwrite an existing one.

The current folder must be writable in order to save the library or libraries for the configurable subsystem option.

Configurable subsystems are stored in a library containing the discretization
candidates and the original continuous block. The library will be named
`<model name>_disc_lib`

and it will be stored in the current.
For example a library containing a configurable subsystem created from the
`f14`

model will be named `f14_disc_lib`

.

If multiple libraries are created from the same model, then the filenames will
increment accordingly. For example, the second configurable subsystem library created
from the `f14`

model will be named
`f14_disc_lib2`

.

You can open a configurable subsystem library by right-clicking on the subsystem in
the model and selecting **Library Link** > **Go to library block** from the context menu.

To discretize blocks that are linked to a library, you must either discretize the blocks in the library itself or disable the library links in the model window.

You can open the library from Model Discretizer by selecting **Load model** from the **File** menu.

You can disable the library links by right-clicking on the block and selecting **Library Link** > **Disable Link** from the context menu.

There are two methods for discretizing blocks.

**Select Blocks and Discretize**

Select a block or blocks in the Model Discretizer tree view pane.

To choose multiple blocks, press and hold the

**Ctrl**button on the keyboard while selecting the blocks.### Note

You must select blocks from the Model Discretizer tree view. Clicking blocks in the editor does not select them for discretization.

Select

**Discretize current block**from the**Discretize**menu if a single block is selected or select**Discretize selected blocks**from the**Discretize**menu if multiple blocks are selected.You can also discretize the current block by clicking the

**Discretize**button, shown below.

**Store the Discretization Settings and Apply Them to Selected Blocks in the
Model**

Enter the discretization settings for the current block.

Click

**Store Settings**.This adds the current block with its discretization settings to the group of preset blocks.

Repeat steps 1 and 2, as necessary.

Select

**Discretize preset blocks**from the**Discretize**menu.

You can delete a discretization candidate from a configurable subsystem by selecting
it in the **Location for block in configurable subsystem**
field and clicking the **Delete** button.

To undo a discretization, click the **Undo discretization**
button.

Alternatively, you can select **Undo discretization** from the
**Discretize** menu.

This operation undoes discretizations in the current selection and its children. For example, performing the undo operation on a subsystem will remove discretization from all blocks in all levels of the subsystem's hierarchy.

Model Discretizer displays the model in a hierarchical tree view.

The block's icon in the tree view becomes highlighted with a “**z**” when the block has been discretized.

The following figure shows that the Aircraft Dynamics Model subsystem has been discretized into a configurable subsystem with three discretization candidates.

The other blocks in this `f14`

model have not been
discretized.

The following figure shows the Aircraft Dynamics Model subsystem of the
`f14`

example model after discretization into a configurable subsystem
containing the original continuous model and three discretization candidates.

The following figure shows the library containing the Aircraft Dynamics Model configurable subsystem with the original continuous model and three discretization candidates.

To refresh the Model Discretizer tree view of the model when the model has been
changed, click the **Refresh** button.

Alternatively, you can select **View** > **Refresh**.

You can replace continuous blocks in a Simulink software model with the equivalent blocks discretized in the s-domain using the Discretizing library.

The procedure below shows how to replace a continuous Transfer Fcn block
in the Aircraft Dynamics Model subsystem of the `f14`

model with a
discretized Transfer Fcn block from the Discretizing Library. The block is
discretized in the s-domain with a zero-order hold transform method and a two second sample
time.

Open the

`f14`

model.Open the Aircraft Dynamics Model subsystem in the

`f14`

model.Open the Discretizing library window.

Enter

`discretizing`

at the MATLAB command prompt.The

**Library: discretizing**window opens.This library contains s-domain discretized blocks.

Add the Discretized Transfer Fcn (with initial states) block to the

**f14/Aircraft Dynamics Model**window.Click the Discretized Transfer Fcn block in the

**Library: discretizing**window.Drag it into the

**f14/Aircraft Dynamics Model**window.

Open the parameter dialog box for the Transfer Fcn.1 block.

Double-click the Transfer Fcn.1 block in the

**f14/Aircraft Dynamics Model**window.The Block Parameters: Transfer Fcn.1 dialog box opens.

Open the parameter dialog box for the Discretized Transfer Fcn block.

Double-click the Discretized Transfer Fcn block in the

**f14/Aircraft Dynamics Model**window.The Block Parameters: Discretized Transfer Fcn dialog box opens.

Copy the parameter information from the Transfer Fcn.1 block dialog box to the Discretized Transfer Fcn block's dialog box.

Enter

`2`

in the**Sample time**field.Select

`zoh`

from the**Method**dropdown list.The parameter dialog box for the Discretized Transfer Fcn now looks like this.

Click

**OK**.The

**f14/Aircraft Dynamics Model**window now looks like this.Delete the original Transfer Fcn.1 block.

Click the Transfer Fcn.1 block.

Press the

**Delete**key.The

**f14/Aircraft Dynamics Model**window now looks like this.

Add the Discretized Transfer Fcn block to the model.

Click the Discretized Transfer Fcn block.

Drag the Discretized Transfer Fcn block into position to complete the model.

The

**f14/Aircraft Dynamics Model**window now looks like this.

Use the `sldiscmdl`

function to discretize
Simulink software models from the MATLAB Command Window. You can specify the transform method, the sample time, and the
discretization method with the `sldiscmdl`

function.

For example, the following command discretizes the `f14`

model in the
s-domain with a 1-second sample time using a zero-order hold transform method:

sldiscmdl('f14',1.0,'zoh')
