delete
주석 삭제
설명
예제
주석 삭제하기
이 예제에서는 프로그래밍 방식으로 vdp
모델에서 주석을 삭제하는 방법을 보여줍니다.

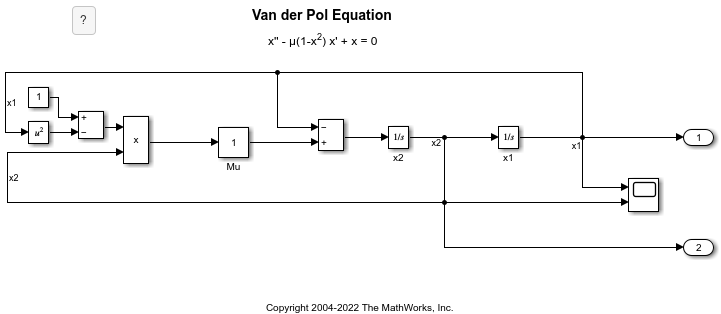

예제를 엽니다. 그런 다음 vdp
모델을 엽니다.
open_system('vdp')
모델에 있는 주석에 대한 핸들을 가져오기 위해 find_system
함수를 사용합니다.
h = find_system(gcs,'FindAll','on','Type','annotation');
주석을 식별하기 위해 주석 내에 있는 텍스트를 쿼리합니다.
get_param(h,'PlainText')
ans = 3x1 cell
{'Copyright 2004-2022 The MathWorks, Inc.'}
{'Van der Pol Equation' }
{'x'' - µ(1-x^2) x' + x = 0' }
모델의 제목인 'Van der Pol Equation'
을 삭제하기 위해 두 번째 핸들에 대응하는 Simulink.Annotation
객체를 가져옵니다.
an = get_param(h(2),'Object');
모델에서 주석을 삭제합니다.
delete(an)
모델에 있는 주석에 대한 핸들을 가져옵니다. 그런 다음 주석 내에 있는 텍스트를 쿼리합니다.
h1 = find_system(gcs,'FindAll','on','Type','annotation'); get_param(h1,'PlainText')
ans = 2x1 cell
{'Copyright 2004-2022 The MathWorks, Inc.'}
{'x'' - µ(1-x^2) x' + x = 0' }

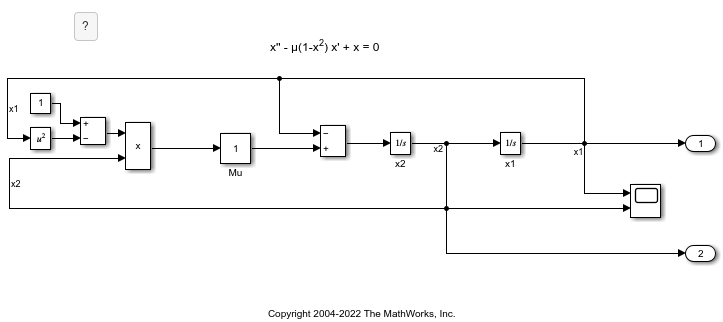

모델에 더 이상 'Van der Pol Equation'
이라는 텍스트를 가진 주석이 없습니다.
입력 인수
a
— 주석
Simulink.Annotation
객체
주석으로, Simulink.Annotation
객체로 지정됩니다.
버전 내역
R2006a 이전에 개발됨
