Parameter Writer

Write to block parameter or variable

  • Parameter Writer block icon

Libraries:
Simulink / Signal Routing

Description

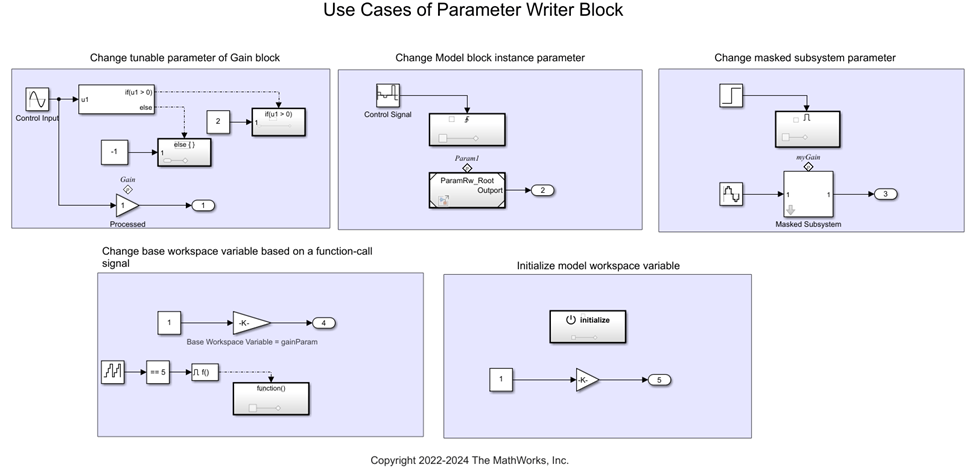

The Parameter Writer block changes block parameter values by writing to one of the following:

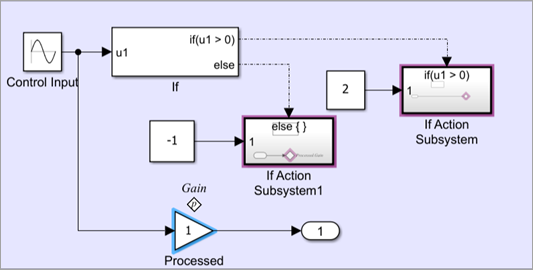

  • A parameter of a block that is tunable during simulation

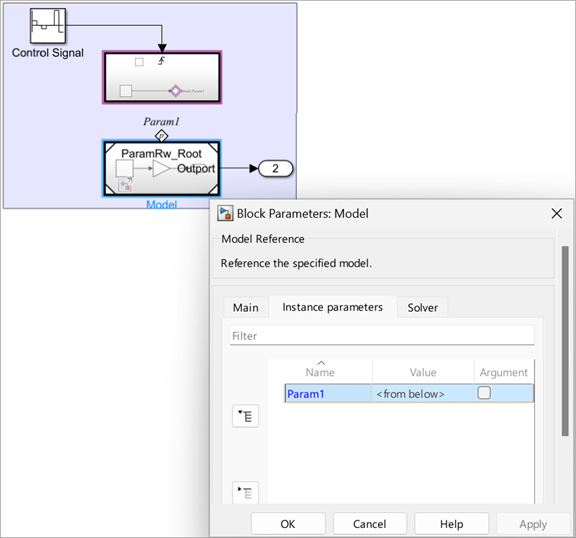

  • An instance parameter that belongs to a Model block that references a model

  • A masked subsystem parameter

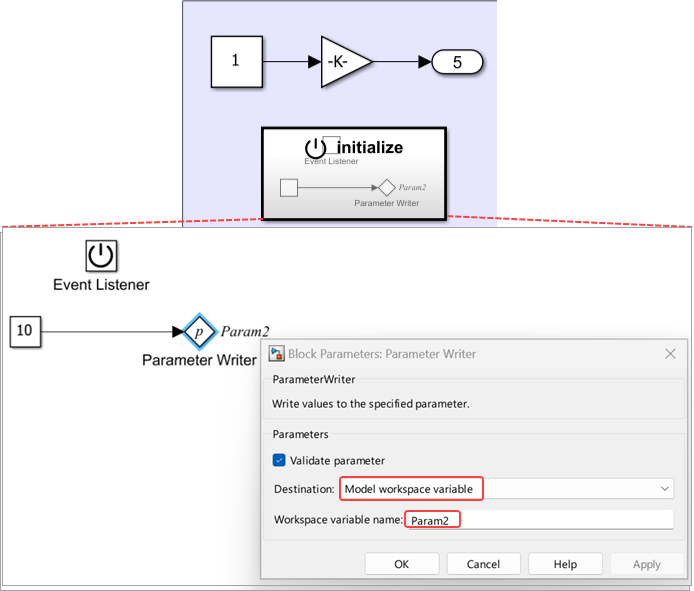

  • A model workspace variable

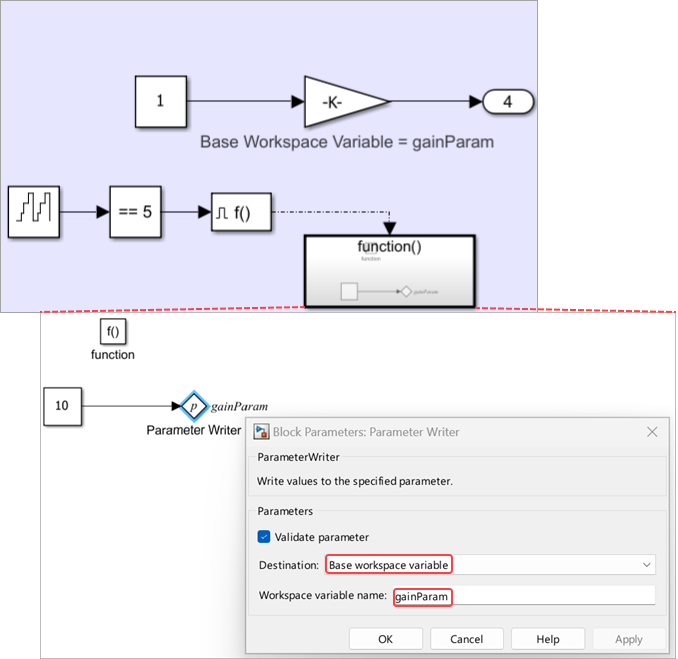

  • A base workspace variable

  • A variable created in Simulink.data.Dictionary.

A block with a parameter that can be written by a Parameter Writer block is called a parameter owner block. For the Parameter Writer block to find the supported parameters of a parameter owner block, the supported parameters must be enabled.

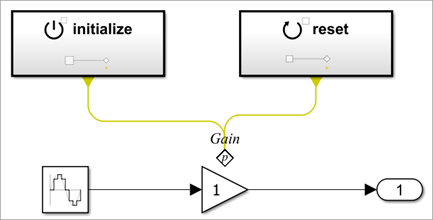

Use the Parameter Writer block with the Initialize Function, Reinitialize Function, and Reset Function blocks to respond to events. For example, an event could be reading the value from a hardware sensor and then updating a block parameter based on the sensor value.

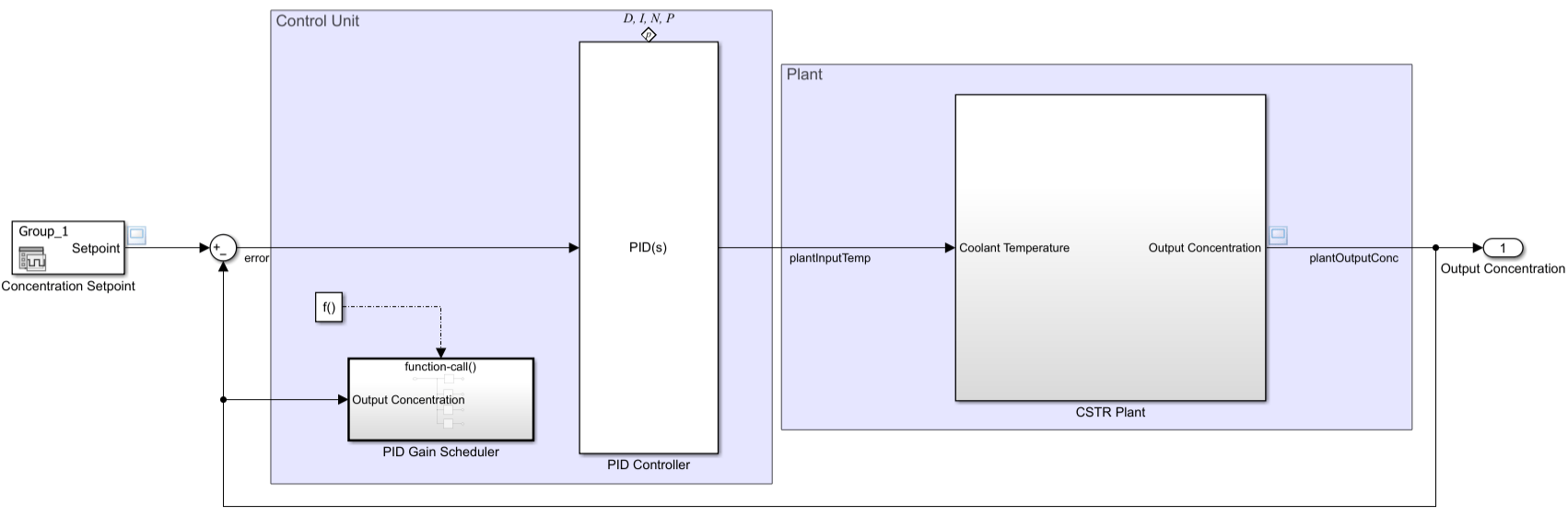

For more information about using the Parameter Writer block, see Initialize and Reset Parameter Values.

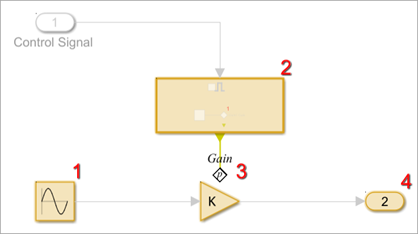

Otherwise, a Parameter Writer block must be in the same task as either:

  • The block whose parameter is directly written by the Parameter Writer block, which could be a built-in block such as a Gain block, a Model block, a masked subsystem block, or a User-Defined Functions block such as an S-Function block

  • The block whose parameter is indirectly written through a workspace variable

To write to a base or model workspace variable, a variable created in Simulink.data.Dictionary, mask parameter, or Model block instance parameter with a Parameter Writer block, the variable, mask parameter, or Model block instance parameter must be used by a parameter owner block or C MEX S-function with run-time tunable parameters.

For a Parameter Writer block in a masked subsystem, the Parameter Writer block and corresponding parameter owner block must have the same immediate parent masked subsystem.

When a Parameter Writer block writes values with data type other than double (the default data type) to a mask parameter, you must initialize the mask parameter with a value of the same data type as the value written by the Parameter Writer block. To initialize the mask parameter, double-click the block to open the mask dialog box, specify the data type and value of the mask parameter. Alternatively, to initialize mask parameter programmatically, use MaskValues parameter with set_param function. For more information, see Control Masks Programmatically.

In this example shown, a Parameter Writer block writes a value with data type single to a Gain block parameter inside a masked subsystem. The mask parameter is initialized to 1 with data type single. Mask parameter value setting when Parameter Writer block writes data with datatype other then double, to a parameter inside a masked subsystem

When a Parameter Writer block writes to an instance parameter with storage class set to Model default, the code generator uses the default configuration for Model parameter arguments when generating code for the parameter. See Specify Instance-Specific Parameter Values for Reusable Referenced Model (Simulink Coder).

When you create a library block with a Parameter Writer block, you must also include the corresponding parameter owner block in the library block.

Identify Parameter Owner Blocks

You can determine whether a block is a supported parameter owner block by the value of the IsParamOwnerBlock block parameter. Use the get_param function with the block name or handle, blk, and the IsParamOwnerBlock block parameter.

get_param(blk,'IsParamOwnerBlock')

The function returns 'on' if the block is a supported parameter owner block and 'off' otherwise.

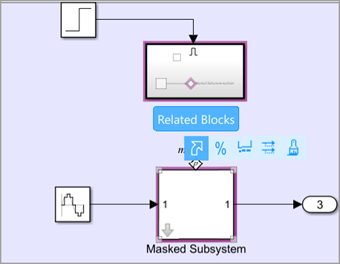

A Parameter Writer block and the parameter owner block of the value that the block writes constitute a set of related blocks. You can select a Parameter Writer block to highlight the related parameter owner block or vice versa. When a related block is highlighted, blocks in the current model that contain the related block are also highlighted. For example, an Initialize Function block is highlighted when it contains a Parameter Writer block that is related to the selected block. The blocks that are highlighted in the model canvas are also highlighted in the miniature map.

To show a related block in an open diagram or new tab, pause on the ellipsis that appears after selection. Then, select the Related Blocks button from the action bar. Window focus goes to the open diagram or new tab that shows the related block.

Limitations

A Parameter Writer block cannot be placed in a Simulink® function.

Ports

Input

expand all

Parameter value written by the block.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | enumerated | bus

Parameters

expand all

Since R2023a

Locally enable parameter validation for this block.

When parameter validation is disabled for a Paramer Writer block, normal mode simulation of the block is faster.

Tips

To globally enable or disable parameter validation for Parameter Writer blocks, use the Parameter Writer block validation configuration parameter.

Dependencies

To disable parameter validation for this block, the block must not directly or indirectly change the value of a Model block instance parameter. For example, the block must not change the value of variable or mask parameter that specifies the value of a Model block instance parameter.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter: IsParameterValidationOn
Values: 'on' (default) | 'off'

Example: set_param(gcb,'IsParameterValidationOn','off')

Since R2024a

Write to block parameters, model workspace variables, base workspace variables, or variables you create in Simulink.data.Dictionary. Select one of these options:

  • Block parameter — Write to block parameters.

  • Model workspace variable — Write to variables in the model workspace.

  • Base workspace variable — Write to variables in the base workspace or variables you create in Simulink.data.Dictionary.

Note

The Destination parameter replaces the Access model workspace parameter parameter.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter: Destination
Values: 'Block parameter' (default) | 'Model workspace variable' | 'Base workspace variable'

Example: set_param(gcb, 'Destination','Block parameter')

Specify the name of the workspace variable whose value this block writes.

Note

The Workspace variable name parameter replaces the existing Model workspace parameter name parameter. (since R2023b)

Dependencies

To enable this parameter, select the Model workspace variable or Base workspace variable from the Destination parameter options.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter: WorkspaceVariableName
Values: '' (default) | character vector | string scalar

Example: set_param(gcb,'WorkspaceVariableName','var')

Specify the block path of the parameter owner block and the name of the parameter whose value this block writes.

The Parameter Owner Selector Tree provides the writable parameters in a hierarchical tree list. Expand the nodes on the path to the parameter owner block. Then, select the parameter under the parameter owner block.

Tips

If the name of a parameter owner block contains a slash (/), the slash appears as two slashes (//) in the Parameter Writer block parameters. This notation distinguishes the slash in the block name itself from slashes that separate names at different levels of the model hierarchy.

Dependencies

To enable this parameter, select the Block parameter option from the Destination parameter list.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

First, specify the block path of a parameter owner block using the ParameterOwnerBlock parameter.

Parameter: ParameterOwnerBlock
Values: '' (default) | character vector | string scalar
Data Types: char | string

Example: set_param(gcb,'ParameterOwnerBlock','mymodel/Gain1')

Then, specify the programmatic name of a block parameter of the parameter owner block using the ParameterName parameter.

Parameter: ParameterName
Values: '' (default) | character vector | string scalar

Example: set_param(gcb,'ParameterName','Gain')

Block Characteristics

Data Types

Boolean | bus | double | enumerated | fixed point | integer | single

Direct Feedthrough

no

Multidimensional Signals

yes

Variable-Size Signals

no

Zero-Crossing Detection

no

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
