Utilities

시뮬레이션 환경을 설정하고 Simulink^® 모델과의 인터페이스를 구축하고 사용자 지정 컴포넌트를 즉석으로 생성하는 데 필요한 흔히 사용되는 블록

이 라이브러리에는 시뮬레이션 환경을 설정하고 Simulink 모델과의 인터페이스를 구축하고 사용자 지정 컴포넌트를 즉석으로 생성하는 데 필요한 흔히 사용되는 블록이 포함되어 있습니다.

Network Couplers 라이브러리에 있는 블록은 Simulink 연결을 통해 서로 인터페이스되는 개별 소규모 네트워크로 Simscape™ 네트워크를 분할할 수 있는 시작점을 제공합니다.

Simscape 블록

유틸리티 블록

Array Connection	Concatenate arrays of conserving connections into single array-of-nodes port (R2025a 이후)
Connection Label	Virtual connection between conserving ports
Connection Port	Physical Modeling connector port for subsystem
Probe	Output block variables as signals during simulation
PS-Simulink Converter	Convert physical signal into Simulink output signal
Simulink-PS Converter	Convert Simulink input signal into physical signal
Simscape Bus	Bus for conserving connection lines
Simscape Component	Deploy Simscape language component as custom block in model diagram
Solver Configuration	Physical network environment and solver configuration
Variant Connector	Remove or disconnect physical components from network

네트워크 커플러

Network Coupler (Compressible Link)	Split network at a mechanical translational connection (R2022a 이후)
Network Coupler (Flexible Shaft)	Split network at a mechanical rotational connection (R2022a 이후)
Network Coupler (Inductor)	Split network at an electrical connection by replacing an inductor (R2022a 이후)
Network Coupler (Capacitor)	Split network at an electrical connection by replacing a capacitor (R2022a 이후)
Network Coupler (Current-Voltage)	Split network at an electrical connection (R2022a 이후)
Network Coupler (Voltage-Current)	Split network at an electrical connection (R2022a 이후)
Network Coupler (Voltage-Voltage)	Split network at an electrical connection (R2022a 이후)
Network Coupler (Thermal Mass)	Split network at a thermal connection (R2022a 이후)
Network Coupler (Constant Volume Chamber (IL))	Split network at an isothermal liquid connection (R2022a 이후)
Network Coupler (Constant Volume Chamber (TL))	Split network at a thermal liquid connection (R2022a 이후)
Prediction (discrete->continuous)	Prevent accuracy loss when connecting fixed-step network to variable-step network (R2022a 이후)
Prediction (slow->fast)	Prevent accuracy loss when connecting fixed-step networks with different step sizes (R2022a 이후)
Smoothing (continuous->discrete)	Apply output smoothing when connecting variable-step network to fixed-step network (R2022a 이후)
Smoothing (fast->slow)	Apply output smoothing when connecting fixed-step networks with different step sizes (R2022a 이후)

블록

Spectrum Analyzer

Display frequency spectrum

함수

모두 확장

모델 생성 함수

`sscnew`	일반적으로 사용되는 필수 블록으로 채워진 새로운 Simscape 모델 만들기 (R2024b 이후)
`ssc_new`	(제거될 예정임) 일반적으로 사용되는 필수 블록으로 채워진 새로운 Simscape 모델 생성
`simscape.addConnection`	Connect physical modeling ports (R2025a 이후)
`simscape.connectionPortProperties`	Get information about names, labels, and connection types of physical modeling ports (R2025a 이후)

Connection Bus 객체

`Simulink.ConnectionBus`	Specify properties of physical connection buses (R2021b 이후)
`Simulink.ConnectionElement`	Specify properties of elements of physical connection buses (R2021b 이후)

프로브 객체

`simscape.probe.VariableTable`	Store and manage block variable data for probing (R2024b 이후)
`simscape.probe.VariableConfiguration`	Configuration of variable for probing (R2024b 이후)

프로브 함수

`simscape.probe.defaultVariableTable`	Construct default variable table for block (R2024b 이후)
`simscape.probe.getVariableTable`	View variable table attached to Probe block (R2024b 이후)
`simscape.probe.setVariableTable`	Attach existing variable table to Probe block (R2024b 이후)

도움말 항목

기본 기법

Creating a New Simscape Model
Quick way to create a new model.
Essential Physical Modeling Techniques
Brief summary of physical modeling rules and techniques.
Modeling Best Practices
How to use best practices in your model architecture to avoid numerical simulation issues.

연결 버스

Design Rigid Interface Specifications for Conserving Connections
Lock down connection types for Simscape Bus and Connection Port blocks.

네트워크 커플러

Using Network Couplers to Split Physical Networks
General workflow and types of models that can benefit from splitting their network.

변형

Using Variant Connectors to Implement Variations in Physical Networks
Implement variations in physical network.
Model Variants in an Electrical Circuit Using Variant Connector Blocks
Restrict propagation of Variant condition in an electrical circuit using primary and nonprimary type Variant Connector blocks.
Model Variants in a Mechanical System Using Variant Connector Blocks
Restrict propagation of Variant condition in a mechanical system using leaf type Variant Connector block.

추천 예제

Probe 블록이 있는 회로 차단기

이 예제에서는 전기 스위치 블록 내의 전류와 전압에 액세스하기 위해 Simscape Probe 블록을 사용하여 회로 차단기를 모델링하고, 다른 Simscape Probe 블록을 사용하여 부하에 걸리는 전압에 액세스합니다.

모델 열기

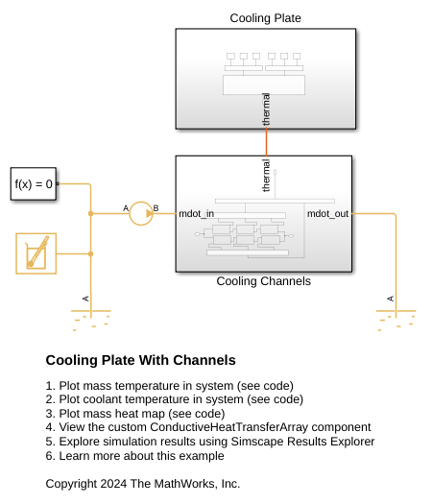

A discretized cooling plate with cooling channels, divided into six segments: three on the top and three on the bottom. Each cooling plate segment is modeled as a thermal mass, while cooling channels are modeled using the Pipe (TL). The ConductiveHeatTransferArray, a custom component, models thermal conduction between the cooling plate segments.

모델 열기

Configuring an EV Simulation for Multirate HIL

An electric vehicle model suitable for multirate Hardware-In-the-Loop (HIL) deployment. The example uses the Simscape™ Network Couplers Library to split the model into separate Simulink® subsystems that can be deployed at different sample rates. This allows you to run parts of the system (for example thermal components) with a slower sample time thereby reducing overall computational cost.

모델 열기

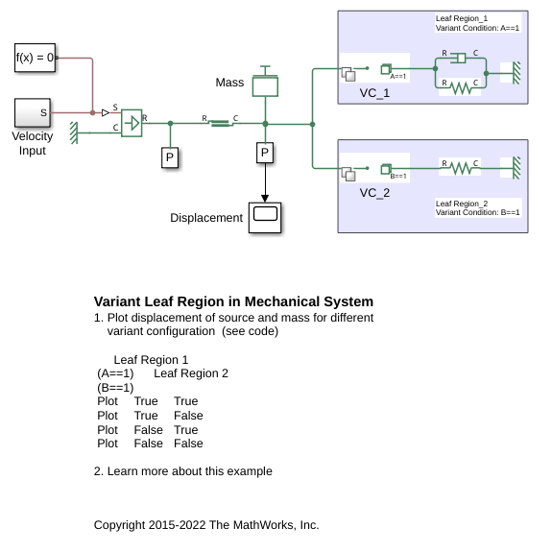

Variant Leaf Region in Mechanical System

Simulate the displacement of velocity sources and mass by using the leaf type of the Variant Connector block. The leaf Variant Connector block forms a leaf region that allows you to vary the displacement during simulation.

모델 열기

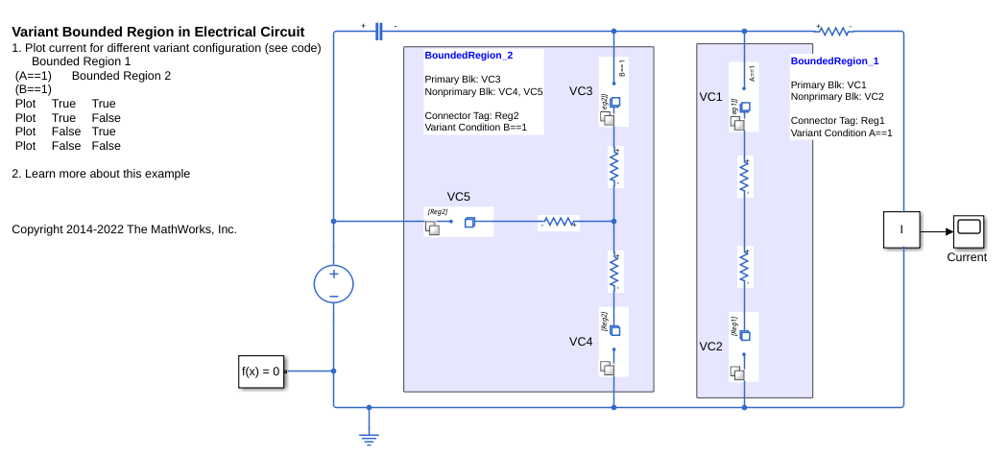

Variant Bounded Region in Electrical Circuit

Activate or deactivate the flow of a current to a set of components in an electrical circuit by using the primary and nonprimary type Variant Connector blocks. The primary and nonprimary Variant Connector blocks form a bounded region that allows you to vary the electrical circuit during simulation.
