Mechanisms
휠 및 차축과 같은 단순한 위치 및 각도 기반 메커니즘
이 라이브러리에는 단순한 위치 및 각도 기반 메커니즘을 표현하는 블록이 포함되어 있습니다.
Simscape 블록
| Cam and Follower (AB-PB) | Position-and-angle-based cam and follower mechanism (R2026a 이후) |
| Wheel and Axle (AB-PB) | Position-and-angle-based wheel and axle mechanism (R2026a 이후) |
관련 정보
추천 예제
Interfacing Angle-Based Rotational and Position-Based Translational Networks
Demonstrates how you can define positive directions for translation and rotation in your physical view and adjust the Simscape™ network to achieve the desired behavior. It highlights the flexibility of Simscape in mapping physical directions to schematic representations.
새로 만들기

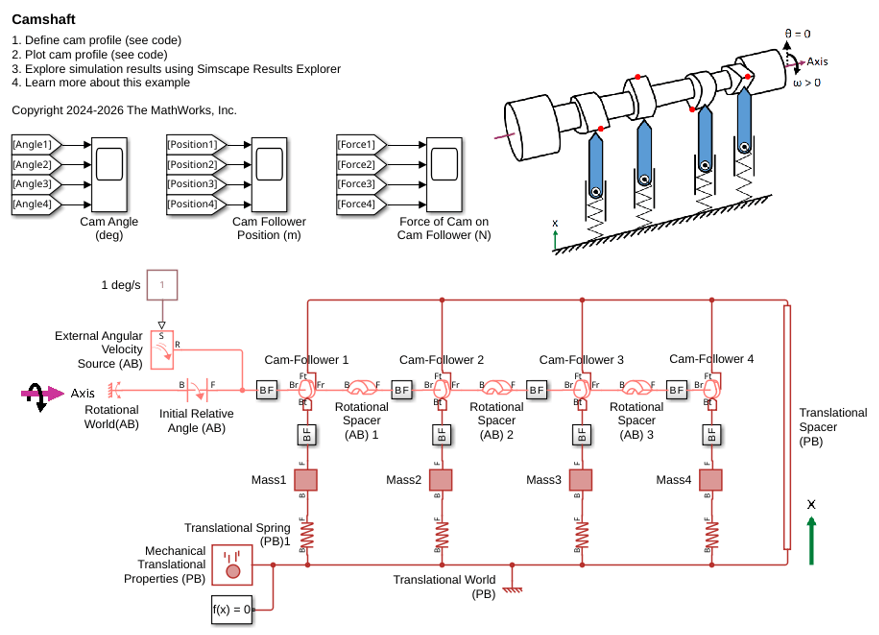

Camshaft
Model a camshaft using Cam and Follower (AB-PB) blocks. The camshaft has four cams, each driving a knife-edge follower on a spring. This example describes how to set up the cam profile, offset angles between the cams, and initial conditions.
