위치 기반 병진 기계 시스템
위치 기반 병진 기계 도메인과 라이브러리를 사용하는 예제를 살펴봅니다. 위치 기반 모델링 프레임워크, 개념과 규칙에 대해 자세히 알아보려면 Modeling Position-Based Mechanical Translational Systems 항목을 참조하십시오. 그런 다음 아래의 예제를 나열된 순서대로 검토해 보십시오.
도움말 항목
- Modeling Position-Based Mechanical Translational Systems
Steps and guidelines for position-based mechanical translational modeling.
추천 예제
Force Flow in the Position-Based Translational Domain
Describes how to interpret forces in a Simscape™ position-based mechanical translational network. The example summarizes rules for interpreting the signs of logged forces and then considers forces in three types of systems: springs being pulled or pushed from different ends, simple systems with external forces applied at a mid-point, and a more complex system with an external force applied at the mid-point.
Gravity and Friction in the Position-Based Translational Domain
Configure gravity and gravity-induced friction effects in a position-based mechanical translational network.
Hard Stops in the Position-Based Translational Domain
Configure Translational Hard Stop (PB) blocks in several simple position-based mechanical translational models and interpret the model behavior. This example describes how to model systems with upper and lower bounds, choose a hard stop model parameterization, set initial targets for variables, and interpret the logged forces.
Rope Pull In the Position-Based Translational Domain

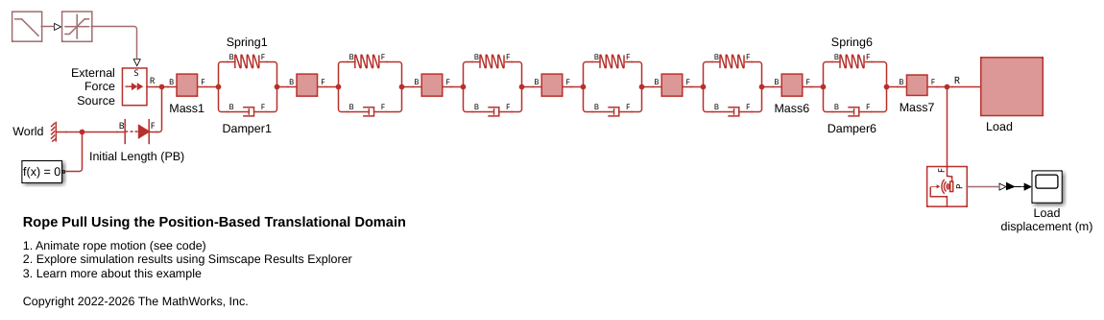

A force pulling on the end of a cable or rope that has a large load on its other end. The rope is modeled with distributed mass and elasticity using Mass With Length (PB), Translational Spring (PB), and Translational Damper (PB) blocks. When the force increases from 0 N to 1,000 N, it excites longitudinal vibrations in the rope.
