기어
R2026b기어 세트는 알려진 비율로 하나의 구동계 축에서 다른 구동계 축으로 회전 운동과 토크를 전달하는 역할을 합니다. Simscape™ Driveline™에는 회전 운동과 토크를 전달하는 각 기어(angular gear)와 병진 운동과 힘을 전달하는 선형 기어(linear gear)가 포함되어 있습니다. 기어 블록의 열 변형을 사용하여 열 발생이 구동계 컴포넌트의 효율과 온도에 미치는 영향을 확인하십시오.
Simscape 블록
 | Compound Planetary Gear | Planetary gear train with stepped planet gear set |
 | Cycloidal Drive | High-ratio speed reducer based on cycloidal disc motion |
 | Differential | Gear mechanism that allows driven shafts to spin at different speeds |
 | Double-Pinion Planetary Gear | Planetary gear train with two meshed planet gear sets |
 | Harmonic Drive | High-ratio speed reducer based on elastic deformation of an elliptical gear |
 | Limited-Slip Differential | Reduce velocity difference between two connected shafts |
 | Planetary Gear | Gear train with sun, planet, and ring gears |
 | Ravigneaux Gear | Planetary gear with two sun gears and two planet gear sets |
 | Simple Gear | Simple gear of base and follower wheels with adjustable gear ratio, friction losses, and triggered faults |
 | Simple Gear with Variable Efficiency | Gear set with parallel-axis rotation and variable meshing efficiency |
 | Worm Gear | Worm gear with adjustable gear ratio and friction losses |
 | Planet-Planet | Planetary gear set of carrier, inner planet, and outer planet wheels with adjustable gear ratio and friction losses |
 | Ring-Planet | Planetary gear set of carrier, planet, and ring wheels with adjustable gear ratio and friction losses |
 | Sun-Planet | Planetary gear set of carrier, planet, and sun wheels with adjustable gear ratio and friction losses |
 | Sun-Planet Bevel | Planetary gear set of carrier and beveled planet and sun wheels with adjustable gear ratio, assembly orientation, and friction losses |
 | Sun-Planet Worm Gear | Planetary gear set of carrier, worm planet, and sun wheels with adjustable gear ratio, worm thread type, and friction losses |
 | Leadscrew | Leadscrew gear set of threaded rotating screw and translating nut, with adjustable thread and friction losses |
 | Rack & Pinion | Rack and pinion gear coupling translational and rotational motion, with adjustable pinion radius and friction losses |
도움말 항목
- Couple Two Spinning Inertias with a Simple Gear
Use gears to couple inertias that are spinning at the same or at different velocities.
- Couple Two Spinning Inertias with a Variable Ratio Transmission
Model a transmission that has a variable gear ratio.
- Couple Three Spinning Inertias with a Planetary Gear
Model a simple planetary gear and a planetary gear with a locked carrier.
- Custom Planetary Gear Model
Model a coupled planetary gear train.
- Model Gears with Losses
Model frictional losses in gear couplings.
- Constant and Load-Dependent Gear Efficiencies
Model power loss due to nonideal gear meshing.
- Couple Rotational Motion with Gears
Learn about the rules for coupling gears.
- Rotational-Translational Couplings
Couple rotational and translational dynamics.
- Model Thermal Losses in Driveline Components
Evaluate the effects of thermal losses on device temperature and performance.
추천 예제
Custom Gear Library
Use the custom Simscape™ Gear Library to build and analyze different gear‑train configurations, ranging from a simple gear pair to planetary and differential systems. The library provides a graphical, component‑level way to model gear mechanisms so that your Simscape diagram closely resembles a traditional gear stick diagram. The gear stick diagram is a side‑view representation where gear axes lie in the plane of the Simulink® canvas.
Custom Planetary Gear
Illustrates how you can build your own custom planetary gear components from the Simscape™ Driveline™ Planetary Subcomponents library. The example is based on Example 10.7 published in K.J. Waldron, G.L. Kinzel "Kinematics, Dynamics, and Design of Machinery", 1999. It consists of a coupled planetary train built from simple and compound planetary trains with a common carrier and bevel gears. The simple train fundamental train ratio is -N_4/N_2 * N_7/N_4 = -N_7/N_2. It connects shafts S2 and S7. The compound planetary train fundamental ratio is -N_4/N_2 * N_6/N_5 and it connects shafts S2 and S6. When the input shaft of the train is rotated at 100 rpm, the model shows the output shaft rotates at 1.4456 rpm as given in the reference.
Epicyclic Gear Efficiency Measurement
An epicyclic gear drive with overall ratio of 256:1 and verifies its transmission efficiency given the individual gear meshing efficiencies. The example is based on Tuplin, W.A. "Designing Compound Epicyclic Gear Trains for Maximum Speed at High Velocity Ratios", Machine Design, April 4, 1957. The drive is built of two ring-planet elements as shown in the gearbox schematic. The example confirms the transmission efficiency value of 0.22 as predicted by the analytical analysis presented in the paper.
Gear with Backlash
Model a gear with backlash using the Simple Gear block with two different backlash models: a spring-damper model and a coefficient of restitution model. The backlash is set to 1 mm, which is equivalent to 0.032 degrees rotation of the input gear that has a radius of 100 mm or 0.016 degrees rotation of the output gear that has a radius of 200 mm. Parameters in the two backlash models are adjusted so that there are a few oscillations when the torque is applied, and the models have similar behavior.
Gearbox Efficiency Measurement
A test for measuring gear box efficiency. The input shaft is driven at a fixed speed and a variable torque is applied to the output shaft. Power is measured on both the input and output shafts, and efficiency is calculated as the ratio of output to input power. The simulation results match the parameters specified for the efficiency of the gear.

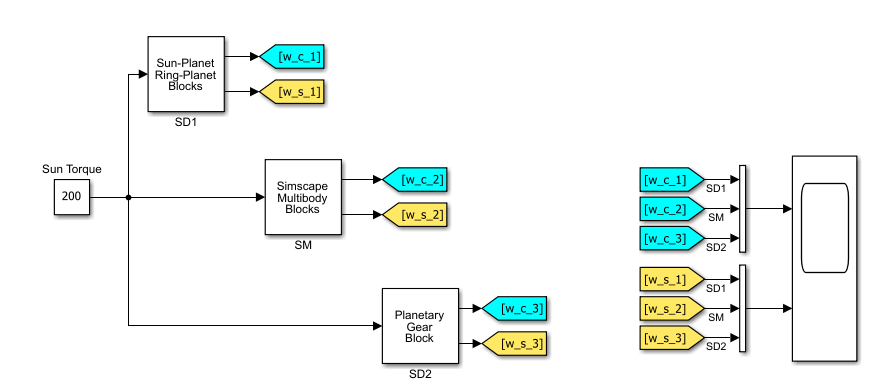

Planetary Gear Comparison
Compares three physically identical implementations of a planetary gearbox with a moving sun, planets and carrier, and a fixed outer ring.
Simple Gear
A simple gear coupling two inertias (shafts). The gear ratio between the follower (F) and base (B) is 2:1. Thus the angular velocity of the follower shaft is half the angular velocity of the base shaft. The follower shaft torque is twice the base shaft torque.
Variable Ratio Gear
A variable ratio gear coupling two inertias (shafts). The gear ratio between the follower (F) and the base (B) is steadily increased from 1:1 to 2:1. The ratio of the follower to base angular speed decreases with gear ratio, and conversely the ratio of the follower to base torque increases with gear ratio. The variable gear is implemented using the Variable Ratio Transmission block which includes compliance. Appropriate stiffness and damping values for the compliance will depend upon the levels of torque transmitted by the variable gear. If the compliance damping is unrealistically low, the system can develop high frequency oscillations that require small simulation time steps.
