wilkinsonSplitterUnequal

Create unequal Wilkinson splitter

Since R2021b

Description

Use the wilkinsonSplitterUnequal object to create an unequal Wilkinson power splitter. You can use the unequal Wilkinson splitter to divide power unequally between two output ports. Unequal splitters are also used to feed power to antenna arrays for beam shaping.

To analyze the behavioral model for the unequal Wilkinson power splitter, set the Behavioral property in the sparameters to true or 1.

Creation

Syntax

splitter = wilkinsonSplitterUnequal

splitter = wilkinsonSplitterUnequal(Name=Value)

Description

splitter = wilkinsonSplitterUnequal creates an unequal Wilkinson splitter with default properties for a resonating frequency of 1 GHz.

splitter = wilkinsonSplitterUnequal(Name=Value) sets Properties using one or more name-value arguments. For example, wilkinsonSplitterUnequal(PortLineLength=0.0300) creates a Wilkinson splitter with an input and output line length of 0.0300 meters. Properties not specified retain their default values.

Properties

PortLineLength — Length of input and output line

0.0070 (default) | positive scalar

Length of the input and the output line in meters, specified as a positive scalar.

Example: splitter = wilkinsonSplitterUnequal(PortLineLength=0.0070)

Data Types: double

PortLineWidth — Width of input and output line

0.0051 (default) | positive scalar

Width of the input and the output line in meters, specified as a positive scalar.

Example: splitter = wilkinsonSplitterUnequal(PortLineWidth=0.0070)

Data Types: double

SplitLineLength — Length of 70-ohm line

0.0279 (default) | positive scalar

Length of the 70-ohm line in meters, specified as a positive scalar. The typical length of a Wilkinson splitter is λ/4.

Example: splitter = wilkinsonSplitterUnequal(SplitLineLength=0.0570)

Data Types: double

SplitLineWidth — Width of 70-ohm line

[0.0014 0.0049] (default) | two-element vector

Width of the 70-ohm line in meters, specified as a two-element vector of positive elements.

Example: splitter = wilkinsonSplitterUnequal(SplitLineWidth=[0.00780 0.00890])

Data Types: double

MatchLineLength — Length of output matching line

0.0277 (default) | positive scalar

Length of the output matching line in meters, specified as a positive scalar.

Example: splitter = wilkinsonSplitterUnequal(MatchLineLength=0.0780)

Data Types: double

MatchLineWidth — Width of output matching line

[0.0039 0.0066] (default) | two-element vector

Width of the output matching line in meters, specified as a two-element vector of positive elements.

Example: splitter = wilkinsonSplitterUnequal(MatchLineWidth=[0.0049 0.0076])

Data Types: double

ResistorLength — Length of resistor in meters

0.0020 (default) | positive scalar

Length of the resistor in meters, specified as a positive scalar.

Example: splitter = wilkinsonSplitterUnequal(ResistorSLength=0.0050)

Data Types: double

Resistance — Resistance value

106 (default) | positive scalar

Resistance value in ohms, specified as a positive scalar.

Example: splitter = wilkinsonSplitterUnequal(Resistance=50)

Data Types: double

Height — Height of Wilkinson splitter from ground plane

0.0016 (default) | positive scalar

Height of the Wilkinson splitter from the ground plane in meters, specified as a positive scalar.

Example: splitter = wilkinsonSplitterUnequal(Height=0.0076)

Data Types: double

GroundPlaneWidth — Width of ground plane in meters

0.0300 (default) | positive scalar

Width of the ground plane in meters, specified as a positive scalar.

Example: splitter = wilkinsonSplitterUnequal(GroundPlaneWidth=0.046)

Example: double

Substrate — Type of dielectric material

dielectric object

Type of dielectric material used as a substrate, specified as a dielectric object. The dielectric material in a wilkinsonSplitterUnequal object with default properties is Teflon. The thickness of the default dielectric material Teflon is 0.0016 m or the same value as the Height property.

Example: d = dielectric("FR4"); splitter = wilkinsonSplitterUnequal(Substrate=d)

Data Types: string | char

Conductor — Type of metal used in conducting layers

metal object

Type of metal used in the conducting layers, specified as a metal object. The type of metal in a wilkinsonSplitterUnequal object with default properties is Copper.

Example: m = metal("PEC"); splitter = wilkinsonSplitterUnequal(Conductor=m)

Data Types: string | char

Object Functions

charge	Calculate and plot charge distribution
current	Calculate and plot current distribution
design	Design unequal Wilkinson splitter around specified frequency
feedCurrent	Calculate current at feed port
layout	Plot all metal layers and board shape
mesh	Change and view mesh properties of metal or dielectric in PCB component
shapes	Extract all metal layer shapes of PCB component
show	Display PCB component structure or PCB shape
sparameters	Calculate S-parameters for RF PCB objects
optimize	Optimize pcb catalog object
EHfields	Electric and magnetic fields of PCB components

Examples

Create Default Unequal Wilkinson Splitter

Create and view a default unequal Wilkinson splitter.

splitter = wilkinsonSplitterUnequal

splitter =
  wilkinsonSplitterUnequal with properties:

      PortLineLength: 0.0070
       PortLineWidth: 0.0051
     SplitLineLength: 0.0279
      SplitLineWidth: [0.0014 0.0049]
     MatchLineLength: 0.0277
      MatchLineWidth: [0.0039 0.0066]
      ResistorLength: 0.0020
          Resistance: 106
              Height: 0.0016
    GroundPlaneWidth: 0.0300
           Substrate: [1×1 dielectric]
           Conductor: [1×1 metal]

show(splitter)

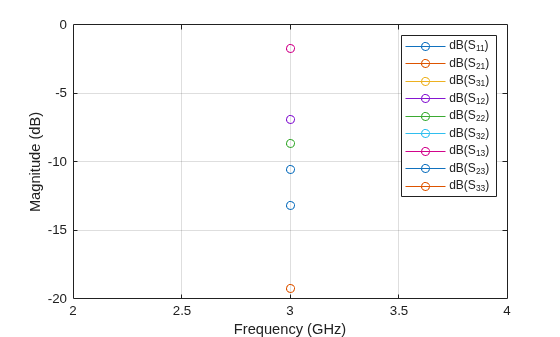

Calculate and plot the S-parameters of the splitter at 3 GHz.

spar=sparameters(splitter,3e9);
figure
rfplot(spar);

Create Multilayer Unequal Wilkinson Splitter

Create and view a multilayer unequal Wilkinson splitter.

sub =  dielectric(Name=["Teflon","Teflon"],EpsilonR=[2.1 2.1], ...
    LossTangent=[0 0],Thickness=[0.8e-3 0.8e-3]);
unsplitter = wilkinsonSplitterUnequal(Height=0.8e-3,Substrate=sub);
show(unsplitter)

Plot the charge and current on this splitter at 3 GHz.

figure

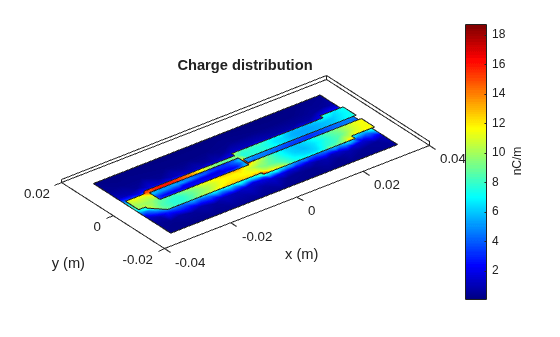

charge(unsplitter,3e9)

figure

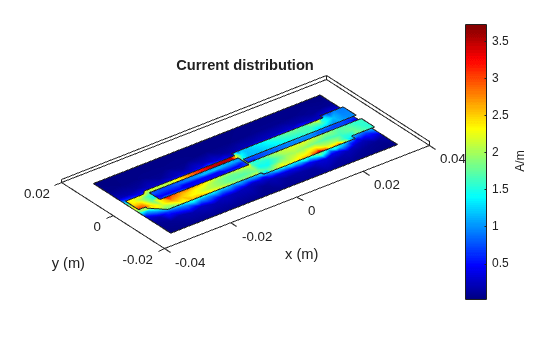

current(unsplitter,3e9)

References

[1] Pozar, David M. Microwave Engineering. 4th ed. Hoboken, NJ: Wiley, 2012.

Version History

Introduced in R2021b

R2022b: Behavioral Analysis for Unequal Wilkinson Power Splitter

Use the sparameters function and the pcbElement object to perform the behavioral analysis of an unequal Wilkinson power splitter.
