design

Design unequal Wilkinson splitter around specified frequency

Since R2021b

Syntax

uwsplitter = design(uwsplitterobj,frequency)

uwsplitter = design(___,Name=Value)

Description

uwsplitter = design(uwsplitterobj,frequency) designs an unequal Wilkinson splitter around the specified frequency.

uwsplitter = design(___,Name=Value) designs an unequal Wilkinson splitter with additional options specified using name-value arguments.

Note

PCB components designed using the design function operate around the specified frequency with a 10-15% tolerance.

Examples

Design Unequal Wilkinson Splitter at 1.8 GHZ

Design an unequal wilkinson at 1.8 GHz with a characteristic impedance of 50 ohms and a PowerRatio of 6.

uwilk = design(wilkinsonSplitterUnequal,1.8e9,Z0=50,PowerRatio=6);

View the splitter

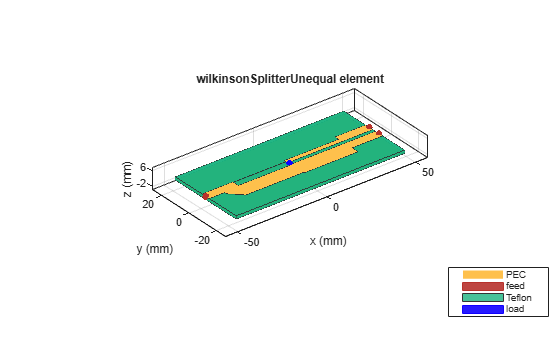

show(uwilk);

Input Arguments

uwsplitterobj — Unequal Wilkinson splitter

wilkinsonSplitterUnequal object

Unequal Wilkinson splitter, specified as a wilkinsonSplitterUnequal object.

Example: uwsplitterobj = wilkinsonSplitterUnequal; design(wsplitterobj,2e9) designs an unequal Wilkinson splitter around a frequency of 2 GHz.

frequency — Design frequency of unequal Wilkinson splitter

real positive scalar

Design frequency of the unequal Wilkinson splitter, specified as a real positive scalar in hertz.

Example: 2.5e9

Data Types: double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: Z0=75

Z0 — Characteristic impedance of splitter

50 (default) | positive scalar

Characteristic impedance of the splitter, specified as a positive scalar in ohms.

Data Types: double

PowerRatio — Power division ratio between two output ports of splitter

2 (default) | positive scalar

Power division ratio between the two output ports of the splitter, specified as a positive scalar.

Data Types: double

Output Arguments

uwsplitter — Unequal Wilkinson splitter operating around specified frequency

wilkinsonSplitterUnequal object

Unequal Wilkinson splitter operating around the specified frequency, returned as a wilkinsonSplitterUnequal object.

Version History

Introduced in R2021b
