rotateY

Rotate RF PCB shape about y-axis and angle

Since R2021b

collapse all in page

Syntax

c = rotateY(shape,angle)

Description

c = rotateY(shape,angle) rotates a shape by the specified angle about the y-axis.

example

Examples

collapse all

Open Live Script

Create and display a spiral trace.

trace = traceSpiral;
show(trace)

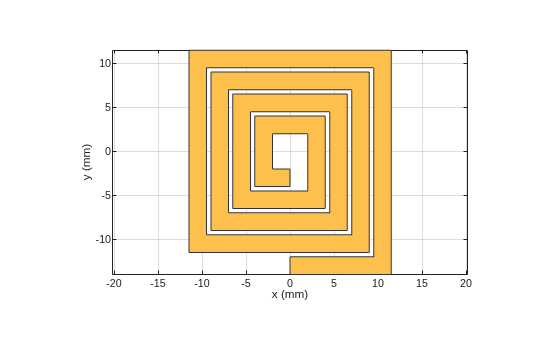

Figure contains an axes object. The axes object with xlabel x (mm), ylabel y (mm) contains 2 objects of type patch. These objects represent PEC, myspiral.

Rotate the spiral trace by 45 degrees about the y-axis.

traceRotY = rotateY(trace,45);

Display the rotated shape. Set the camera line of sight to display in 3-D space.

show(traceRotY)
view(60,10)

Figure contains an axes object. The axes object with xlabel x (mm), ylabel y (mm) contains 2 objects of type patch. These objects represent PEC, myspiral.

Input Arguments

collapse all

RF PCB shape created using custom elements and shape objects of RF PCB Toolbox™, specified as an object.

Example: shape = bendCurved; specifies the shape as a bendCurved object.

Angle of rotation, specified as a scalar in degrees.

Example: 45 rotates the shape around the y-axis by 45 degrees.

Data Types: double

Version History

Introduced in R2021b
