시나리오 시각화

R2026b

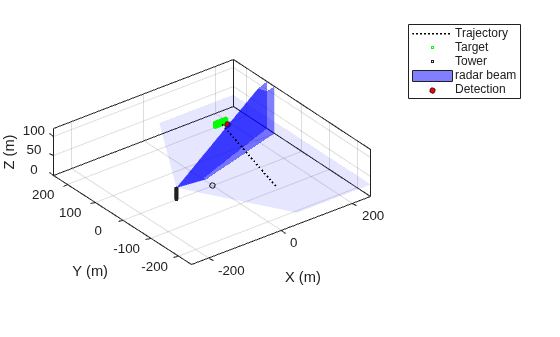

레이다 추적 시나리오에서 객체, 검출, 트랙 플로팅

시나리오를 표시하려면 시어터(theater) 플롯을 사용합니다. 객체 위치, 검출, 트랙 및 방향, 기타 시나리오 속성을 플로팅합니다.

함수

`theaterPlot`	Plot objects, detections, and tracks in Scenario
`clearData`	Clear data from specific plotter of theater plot
`findPlotter`	Return array of plotters associated with theater plot
`clearPlotterData`	Clear plotter data from theater plot
`coveragePlotter`	Coverage plotter for theater plot
`plotCoverage`	Plot set of beams and scan limits in theater coverage plotter
`detectionPlotter`	Detection plotter for theater plot
`plotDetection`	Plot set of detections in theater detection plotter
`orientationPlotter`	Orientation plotter for theater plot
`plotOrientation`	Plot set of orientations in orientation plotter
`platformPlotter`	Platform plotter for theater plot
`plotPlatform`	Plot set of platforms in platform plotter
`trackPlotter`	Track plotter for theater plot
`plotTrack`	Plot set of tracks in theater track plotter
`surfacePlotter`	Create surface plotter (R2022b 이후)
`plotSurface`	Plot surfaces in theater surface plotter (R2022b 이후)
`surfacePlotterData`	Data for surface plotter (R2022b 이후)
`clutterRegionPlotter`	Create clutter region plotter (R2022b 이후)
`plotClutterRegion`	Plot clutter region in theater plot (R2022b 이후)
`clutterRegionData`	Create data structure used as input to clutter region plotter (R2022b 이후)
`trajectoryPlotter`	Trajectory plotter for theater plot
`plotTrajectory`	궤적 플로터에서 일련의 궤적 플로팅
