plotOrientation

Plot set of orientations in orientation plotter

Since R2021a

Description

example

plotOrientation(oPlotter,orientations) specifies the orientations of M objects to show for the orientation plotter, oPlotter. The orientations argument can be either an M-by-1 array of quaternions, or a 3-by-3-by-M array of rotation matrices.

plotOrientation(oPlotter,roll,pitch,yaw) specifies the orientations of M objects to show for the orientation plotter, oPlotter. The arguments roll, pitch, and yaw are M-by-1 vectors measured in degrees.

plotOrientation(oPlotter,___,positions) also specifies the positions of the objects as an M-by-3 matrix. Each column of positions corresponds to the x-, y-, and z-coordinates of the object locations, respectively.

plotOrientation(oPlotter,___,positions,labels) also specifies the labels as an M-by-1 cell array of character vectors that correspond to the M orientations.

Examples

collapse all

Create a theater plot object and a trajectory plotter.

tp = theaterPlot('XLimit',[-2 2],'YLimit',[-2 2],'ZLimit',[-2 2]);
op = orientationPlotter(tp,'DisplayName','Orientation',...
    'LocalAxesLength',2);

Create some random rotations.

pose = randrot(20,1);

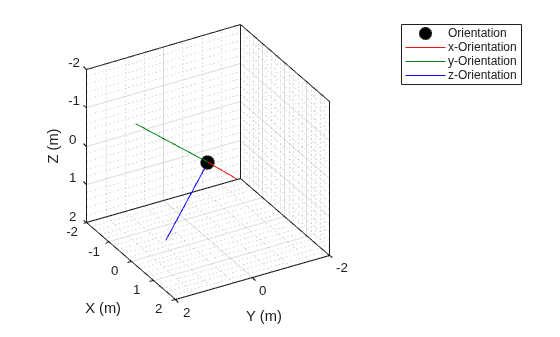

Loop through the pose information to animate the orientations.

for i=1:numel(pose)
    plotOrientation(op,pose(i))
    drawnow
end

Input Arguments

collapse all

Orientation plotter, specified as an orientationPlotter object.

Orientations of M objects, specified as either an M-by-1 array of quaternions, or a 3-by-3-by-M array of rotation matrices.

Roll, pitch, and yaw angles defining the orientations of M objects, specified as M-by-1 vectors. Angles are measured in degrees.

Object positions, specified as an M-by-3 real-valued matrix, where M is the number of objects. Each column of the matrix corresponds to the x-, y-, and z-coordinates of the objects locations in meters. The default value of positions is at the origin.

Object labels, specified as a M-by-1 cell array of character vectors, where M is the number of objects. labels contains the text labels corresponding to the M objects specified in positions. If labels is omitted, no labels are plotted.

Version History

Introduced in R2021a
