plotTrajectory
Description
plotTrajectory(
plots trajectories specified by trajPlotter
,trajCoordList
)trajCoordList
via the trajectory
plotter on a theater plot.
Examples
Plot Trajectories in Theater Plot
Define the coordinates for three trajectories.
coordinates1 = [(1:10)' (2:11)' (11:-1:2)']; coordinates2 = coordinates1 + 1; coordinates3 = coordinates1 + 2;
Create a theaterPlot
object, set the view angles, and create a trajectoryPlotter
object.
tp = theaterPlot;
view(14,50)
trajPlotter = trajectoryPlotter(tp,DisplayName="Trajectories");

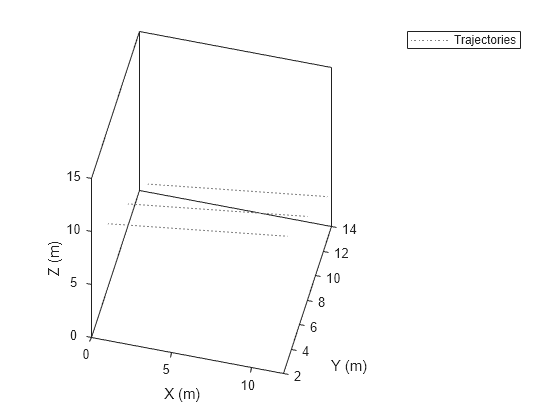

Plot the three trajectories.
plotTrajectory(trajPlotter,{coordinates1,coordinates2,coordinates3})
Input Arguments
trajPlotter
— Trajectory plotter
trajectoryPlotter
object
Trajectory plotter, specified as a trajectoryPlotter
object.
trajCoordList
— Coordinates of trajectories
cell array
Coordinates of the trajectories to show, specified as an N-element cell array, where N is the number of trajectories. Each cell element, representing a trajectory, contains an M-by-3 matrices, where M is the number of points in the trajectory. The matrices in different cells can have a different number of rows. The first, second, and third columns of each matrix correspond to the x-, y-, and z-coordinates of the corresponding trajectory.
Example: coordList = {[1 2 3; 4 5 6; 7,8,9];[4 2 1; 4 3 1];[4 4 4; 3 1 2; 9
9 9; 1 0 2]}
specifies three different trajectories.
Version History
Introduced in R2021a
See Also
trajectoryPlotter
| theaterPlot
| clearData
| clearPlotterData
