# nearestFace

## Description

## Examples

### Faces of 3-D Geometry Closest to Specified Points

Find faces of a block nearest to the specified points.

Create a block geometry.

gm = multicuboid(3,2,1)

gm = DiscreteGeometry with properties: NumCells: 1 NumFaces: 6 NumEdges: 12 NumVertices: 8 Vertices: [8x3 double]

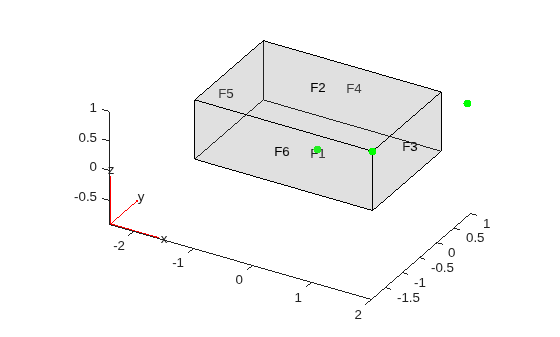

Plot the geometry with the face labels. Add the points with the coordinates (0 0 0.1), (2 0.9 1), and (1.5 -1 1) to the plot.

pdegplot(gm,"FaceLabels","on","FaceAlpha",0.2) hold on scatter3([0 2 1.5],[0 0.9 -1],[0.1 1 1],"filled","MarkerFaceColor","g")

Find faces closest to the points with the coordinates (0 0 0.1), (2 0.9 1), and (1.5 -1 1). If several faces are equally close (within the tolerance) to the point, `nearestFace`

returns the ID of one of the faces.

faceIDs = nearestFace(gm,[0 0 0.1; 2 0.9 1; 1.5 -1 1])

`faceIDs = `*1×3*
1 3 6

### Faces of 2-D Geometry Closest to Specified Points

Find faces of the L-shaped membrane nearest to the specified points.

Create a model and include this geometry. The geometry of the L-shaped membrane is described in the file `lshapeg`

.

model = createpde(); gm = geometryFromEdges(model,@lshapeg)

gm = AnalyticGeometry with properties: NumCells: 0 NumFaces: 3 NumEdges: 10 NumVertices: 8 Vertices: [8x2 double]

Plot the geometry with the face labels. Add the points with the coordinates (0 0), (1.1 -0.2), and (-0.5 0.5) to the plot.

pdegplot(gm,"FaceLabels","on") hold on scatter([0 1.1 -0.5],[0 -0.2 0.5],"filled")

Find faces closest to the points with the coordinates (0 0), (1.1 -0.2), and (-0.5 0.5). If several faces are equally close (within the tolerance) to the point, `nearestFace`

returns the ID of one of the faces.

faceIDs = nearestFace(gm,[0 0; 1.1 -0.2; -0.5 0.5])

`faceIDs = `*1×3*
2 3 1

## Input Arguments

`g`

— Geometry

`fegeometry`

object | `DiscreteGeometry`

object | `AnalyticGeometry`

object

Geometry, specified as an `fegeometry`

object, a `DiscreteGeometry`

object, or an `AnalyticGeometry`

object.

`Coords`

— Coordinates

`N`

-by-2 numeric matrix | `N`

-by-3 numeric matrix

Coordinates of the points, specified as an `N`

-by-2 or
`N`

-by-3 numeric matrix for a 2-D or 3-D geometry, respectively.
Here, `N`

is the number of points.

**Data Types: **`double`

## Output Arguments

`FaceID`

— IDs of faces nearest to specified point

positive number | vector of positive numbers

IDs of faces nearest to the specified point, returned as a positive number or a vector of positive numbers.

## Version History

**Introduced in R2021a**

### R2023a: Finite element model

`nearestFace`

now accepts geometries specified by `fegeometry`

objects.
