faceEdges

Find edges belonging to specified faces

Since R2021a

collapse all in page

    Syntax

    EdgeID = faceEdges(g,RegionID)
    EdgeID = faceEdges(g,RegionID,FilterType)

    Description

    example

    EdgeID = faceEdges(g,RegionID) finds edges belonging to the faces with ID numbers listed in RegionID.

    example

    EdgeID = faceEdges(g,RegionID,FilterType) returns internal, external, or all edges belonging to the faces with ID numbers listed in RegionID. This syntax is valid for 3-D geometries only.

    Examples

    collapse all

    Open Live Script

    Find edges belonging to the top and bottom faces of a block.

    Create a block geometry.

    gm = multicuboid(3,2,1)
    gm =
  DiscreteGeometry with properties:

       NumCells: 1
       NumFaces: 6
       NumEdges: 12
    NumVertices: 8
       Vertices: [8x3 double]

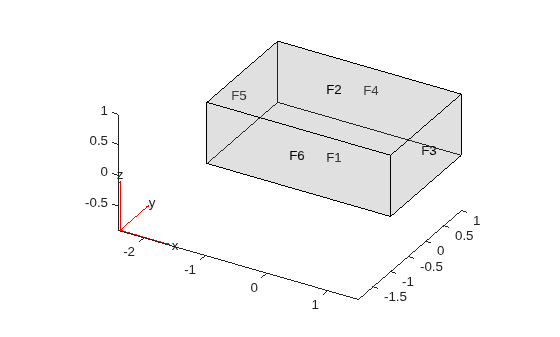

    Plot the geometry with the face labels.

    pdegplot(gm,"FaceLabels","on","FaceAlpha",0.2)

    Find edges belonging to faces 1 and 2.

    edgeIDs = faceEdges(gm,[1 2])
    edgeIDs = 1×8

     1     2     3     4     5     6     7     8

    Plot the geometry with the edge labels.

    figure
pdegplot(gm,"EdgeLabels","on","FaceAlpha",0.2)

    Open Live Script

    Find edges belonging to two faces of the L-shaped membrane.

    Create a model and include this geometry. The geometry of the L-shaped membrane is described in the file lshapeg.

    model = createpde();
gm = geometryFromEdges(model,@lshapeg)
    gm =
  AnalyticGeometry with properties:

       NumCells: 0
       NumFaces: 3
       NumEdges: 10
    NumVertices: 8
       Vertices: [8x2 double]

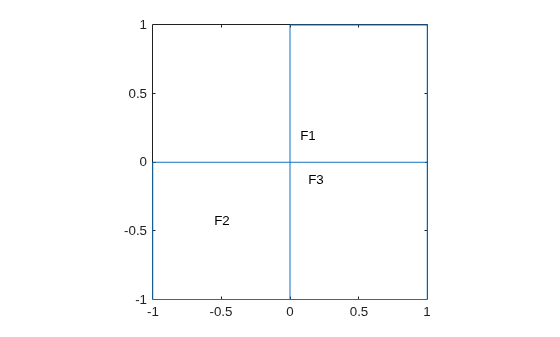

    Plot the geometry with the face labels.

    pdegplot(gm,"FaceLabels","on")

    Find edges belonging to faces 1 and 2.

    edgeIDs = faceEdges(gm,[1 2])
    edgeIDs = 1×8

     1     2     3     6     7     8     9    10

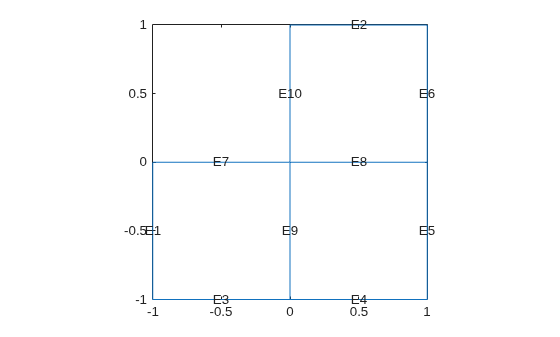

    Plot the geometry with the edge labels.

    figure
pdegplot(gm,"EdgeLabels","on")

    Open Live Script

    Find edges belonging to the side face of the inner cuboid in a geometry consisting of two nested cuboids.

    Create a geometry that consists of two nested cuboids of the same height.

    gm = multicuboid([2 5],[4 10],3)
    gm =
  DiscreteGeometry with properties:

       NumCells: 2
       NumFaces: 12
       NumEdges: 24
    NumVertices: 16
       Vertices: [16x3 double]

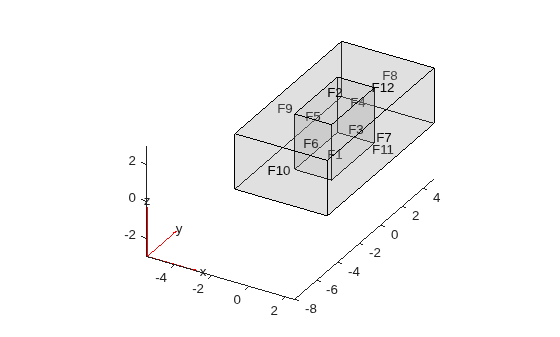

    Plot the geometry with the face labels.

    pdegplot(gm,"FaceLabels","on","FaceAlpha",0.2)

    Find all edges belonging to the side face of the inner cuboid.

    edgeIDs = faceEdges(gm,6)
    edgeIDs = 1×4

     1     5    10    12

    From all edges belonging to that face, return the edges belonging to only the internal faces. Internal faces are faces shared between multiple cells.

    edgeIDs = faceEdges(gm,6,"internal")
    edgeIDs = 1×2

    10    12

    From all edges belonging to that face, return the edges belonging to the external faces.

    edgeIDs = faceEdges(gm,6,"external")
    edgeIDs = 1×2

     1     5

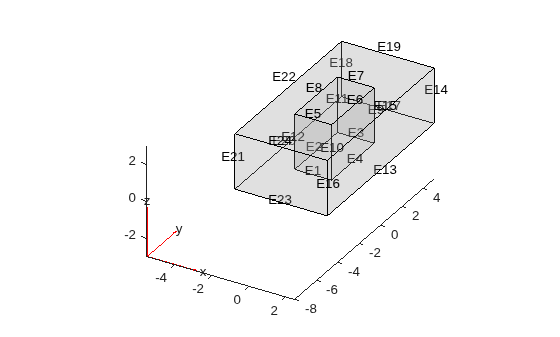

    Plot the geometry with the edge labels.

    pdegplot(gm,"EdgeLabels","on","FaceAlpha",0.2)

    Input Arguments

    collapse all

    Geometry, specified as an fegeometry object, a DiscreteGeometry object, or an AnalyticGeometry object.

    Face ID, specified as a positive number or a vector of positive numbers. Each number represents a face ID.

    Type of edges to return, specified as "internal", "external", or "all". Depending on this argument, faceEdges returns these types of faces for a 3-D geometry:

    • "internal" — Edges belonging to only internal faces. Internal faces are faces shared between multiple cells.

    • "external" — Edges belonging to only external faces. External faces are faces not shared between multiple cells.

    • "all" — All edges belonging to the specified cells.

    Output Arguments

    collapse all

    IDs of edges belonging to the specified faces, returned as a positive number or a vector of positive numbers.

    Version History

    Introduced in R2021a
