egoGeometry

Geometric properties of ego bodies

Syntax

[egoIDs,geomStruct] = egoGeometry(capsuleListObj)

[egoIDs,geomStruct] = egoGeometry(capsuleListObj,selectEgoIDs)

[egoIDs,geomStruct,status] = egoGeometry(capsuleListObj,selectEgoIDs)

Description

[egoIDs,geomStruct] = egoGeometry(capsuleListObj) returns the ego ID and the geometry parameters for each ego body in the capsule list.

[egoIDs,geomStruct] = egoGeometry(capsuleListObj,selectEgoIDs) specifies which ego bodies to return the ID and geometry parameters for.

[egoIDs,geomStruct,status] = egoGeometry(capsuleListObj,selectEgoIDs) returns an indicator of whether each ID in selectEgoIDs exists.

Examples

Create and Modify Capsule-Based Ego Bodies

Add ego bodies to an environment using the dynamicCapsuleList object. Modify the properties of the ego bodies. Remove an ego body from the environment. Visualize the states of all objects in the environment at different timestamps.

Create the dynamicCapsuleList object. Extract the maximum number of steps to use as the number of time stamps for the object paths.

capsuleList = dynamicCapsuleList;
numSteps = capsuleList.MaxNumSteps;

Add Ego Bodies

Specify the states for the two ego bodies as a linear path from x = 0 m to x = 100 m. The two ego bodies are separated by 5 m in opposite directions on the y-axis.

egoState = linspace(0,1,numSteps)'.*[100 0 0];
egoState1 = egoState+[0 5 0];
egoState2 = egoState+[0 -5 0];

Generate default poses and geometric structures for the two ego bodies using ego IDs.

[egoIDs,egoPoseStruct] = egoPose(capsuleList,[1 2]);
[egoIDs,egoGeomStruct] = egoGeometry(capsuleList,egoIDs);

Update Ego Bodies

Assign the states to the ego bodies.

egoPoseStruct(1).States = egoState1;
egoPoseStruct(2).States = egoState2;

Increase the radius of the first ego body to 2 m.

egoGeomStruct(1).Geometry.Radius = 2;

Update the ego bodies using the updateEgoPose and updateEgoGeometry object functions.

updateEgoPose(capsuleList,egoIDs,egoPoseStruct);
updateEgoGeometry(capsuleList,egoIDs,egoGeomStruct);

Visualize the ego bodies.

show(capsuleList,'TimeStep',1:numSteps);
axis equal

Remove Ego Body

Remove the first ego body from the capsule list by specifying its ID.

removeEgo(capsuleList,1);

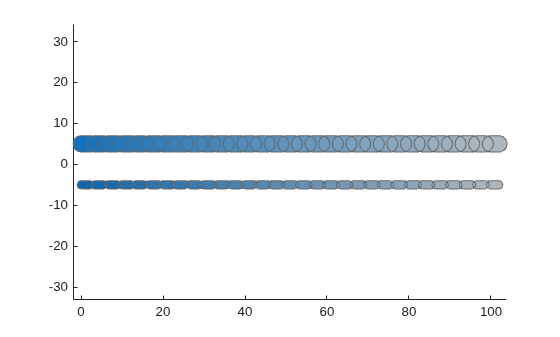

Visualize the ego bodies again.

show(capsuleList,'TimeStep',1:numSteps);
axis equal

Input Arguments

capsuleListObj — Dynamic capsule list

dynamicCapsuleList object | dynamicCapsuleList3D object

Dynamic capsule list, specified as a dynamicCapsuleList or dynamicCapsuleList3D object.

selectEgoIDs — Ego body IDs

vector of positive integers

Ego body IDs, specified as a vector of positive integers. The function returns the ego IDs and geometry parameters for only the ego bodies specified in this vector.

Output Arguments

egoIDs — IDs of ego bodies

vector of positive integers

IDs of ego bodies, returned as a vector of positive integers.

geomStruct — Geometry parameters for ego bodies

structure | structure array

Geometry parameters for ego bodies, returned as a structure or structure array where each structure contains the fields from the structure in the Geometry field of the associated ego body. The fields of this structure depend on whether you are using a dynamicCapsuleList or dynamicCapsuleList3D object.

status — Indication of ego body existence

N-element column vector

Indication of ego body existence, returned as a N-element column vector of ones, zeros, and negative ones. Each value indicates whether the associated body exists (1), updated (0), or a duplicate (-1). If you specify the same ego body ID more than once in the selectEgoIDs argument, then the function marks all instances of that ID after the first as duplicates and ignores them.
