This example shows how to design model predictive controller with one measured output, one manipulated variable, one measured disturbance, and one unmeasured disturbance in a typical workflow.

The discrete time linear open-loop dynamic model is defined below with sample time `Ts`

.

sys = ss(tf({1,1,1},{[1 .5 1],[1 1],[.7 .5 1]})); Ts = 0.2; model = c2d(sys,Ts);

Define type of input signals: the first signal is a manipulated variable, the second signal is a measured disturbance, the third one is an unmeasured disturbance.

model = setmpcsignals(model,'MV',1,'MD',2,'UD',3);

Create the controller object with sampling period, prediction and control horizons.

mpcobj = mpc(model,Ts,10,3);

-->The "Weights.ManipulatedVariables" property of "mpc" object is empty. Assuming default 0.00000. -->The "Weights.ManipulatedVariablesRate" property of "mpc" object is empty. Assuming default 0.10000. -->The "Weights.OutputVariables" property of "mpc" object is empty. Assuming default 1.00000.

Define constraints on the manipulated variable.

mpcobj.MV = struct('Min',0,'Max',1,'RateMin',-10,'RateMax',10);

For unmeasured input disturbances, its model is an integrator driven by white noise with variance = 1000.

mpcobj.Model.Disturbance = tf(sqrt(1000),[1 0]);

`sim`

CommandSpecify simulation parameters.

Tstop = 30; % simulation time Tf = round(Tstop/Ts); % number of simulation steps r = ones(Tf,1); % reference signal v = [zeros(Tf/3,1);ones(2*Tf/3,1)]; % measured disturbance signal

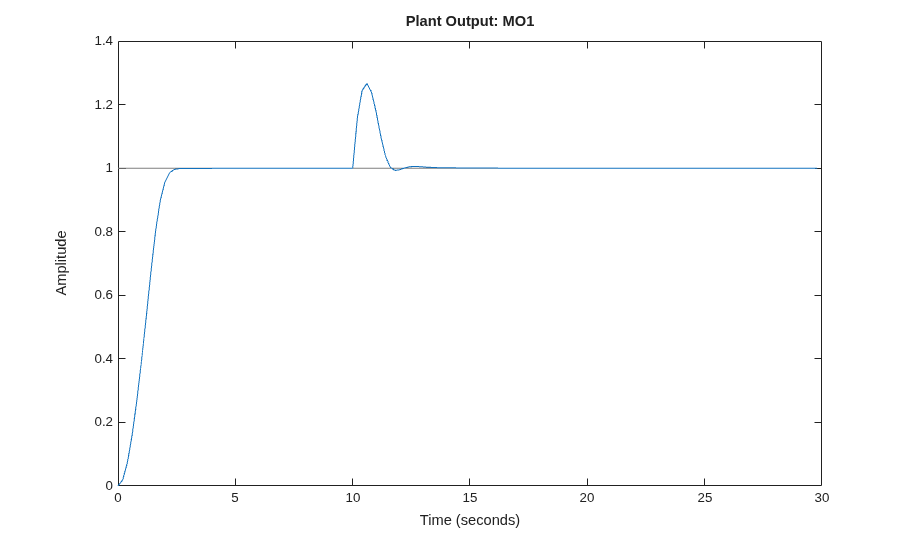

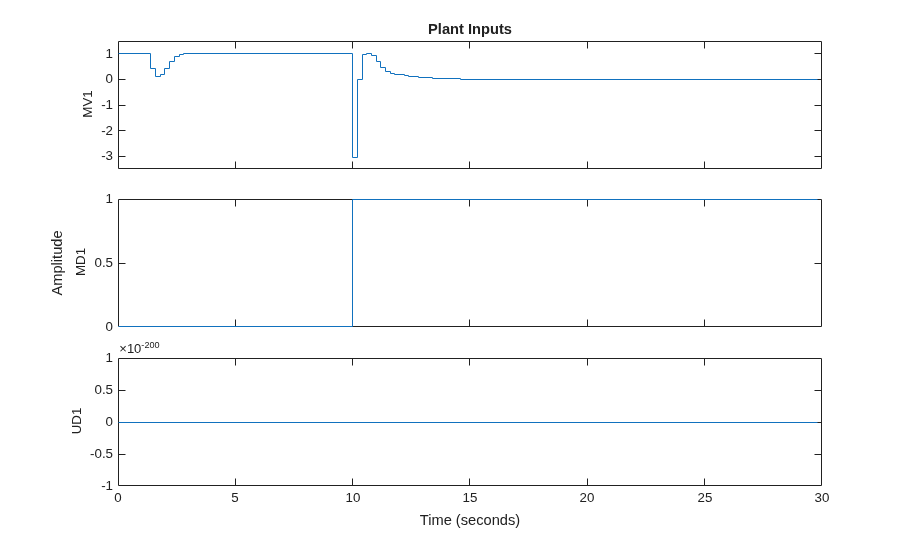

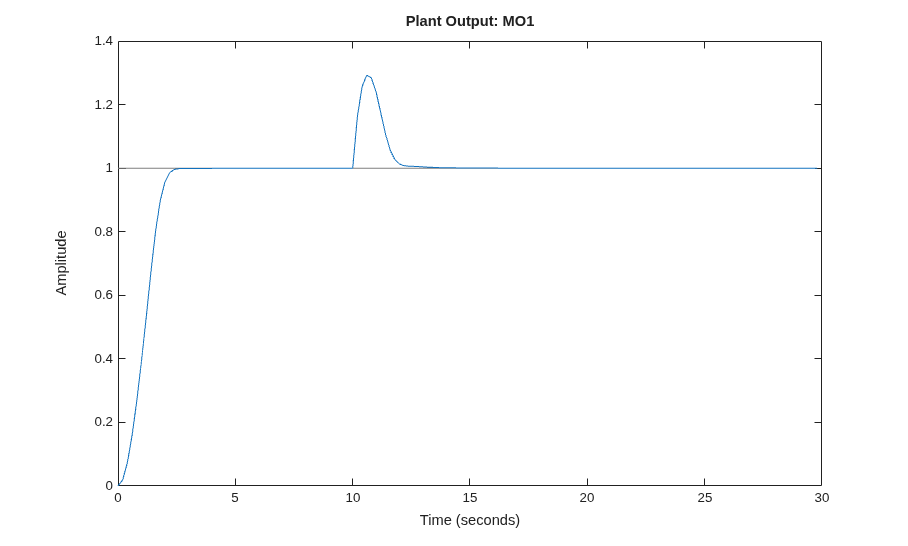

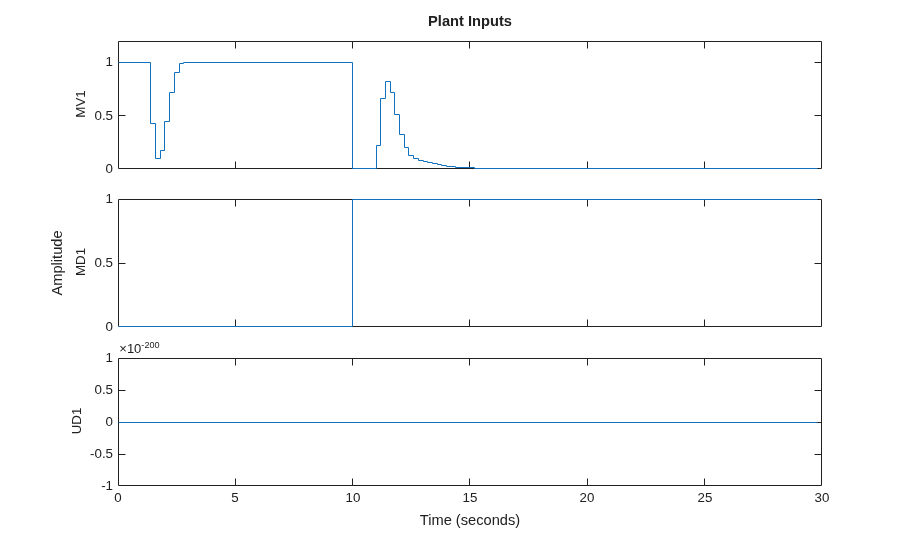

Run the closed-loop simulation and plot results.

sim(mpcobj,Tf,r,v)

Assuming no disturbance added to measured output channel #1. -->The "Model.Noise" property of the "mpc" object is empty. Assuming white noise on each measured output channel.

Specify disturbance and noise signals in simulation option object.

SimOptions = mpcsimopt(mpcobj); d = [zeros(2*Tf/3,1);-0.5*ones(Tf/3,1)]; SimOptions.Unmeas = d; % unmeasured input disturbance signal SimOptions.OutputNoise=.001*(rand(Tf,1)-.5); % output measurement noise SimOptions.InputNoise=.05*(rand(Tf,1)-.5); % noise on manipulated variables

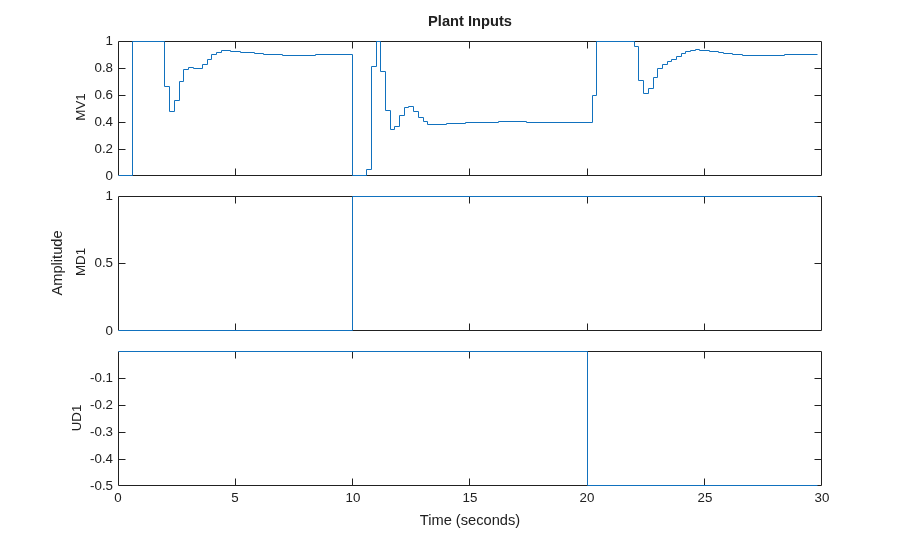

Run the closed-loop simulation and save the results to the workspace.

[y,t,u,xp] = sim(mpcobj,Tf,r,v,SimOptions);

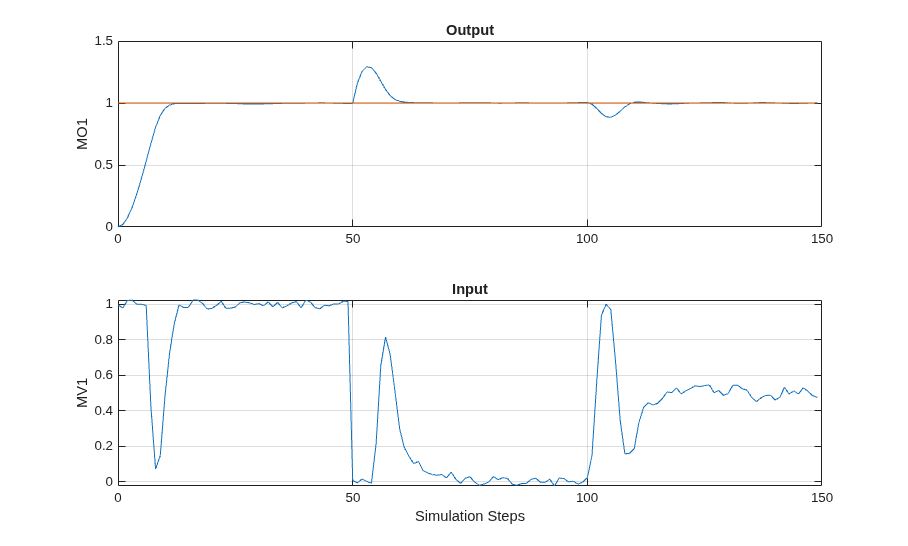

Plot results.

figure subplot(2,1,1) plot(0:Tf-1,y,0:Tf-1,r) title('Output') grid subplot(2,1,2) plot(0:Tf-1,u) title('Input') grid

Test the robustness of the MPC controller against a model mismatch. Specify the true plant `simModel`

, with a nominal output value of `0.1`

.

simModel = ss(tf({1,1,1},{[1 .8 1],[1 2],[.6 .6 1]})); simModel = setmpcsignals(simModel,'MV',1,'MD',2,'UD',3); simModel = struct('Plant',simModel); simModel.Nominal.Y = 0.1; simModel.Nominal.X = -.1*[1 1 1 1 1];

Create option object.

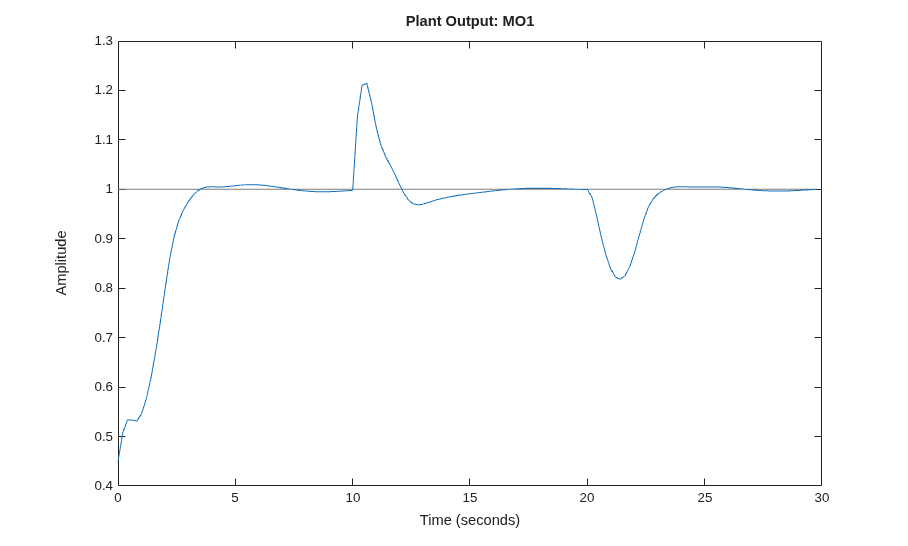

SimOptions.Model = simModel; SimOptions.plantinit = [0.1 0 -0.1 0 .05]; % Initial state of the true plant SimOptions.OutputNoise = []; % remove output measurement noise SimOptions.InputNoise = []; % remove noise on manipulated variables % Run the closed-loop simulation and plot results. sim(mpcobj,Tf,r,v,SimOptions)

-->Converting model to discrete time.

Relax the constraints on manipulated variables from hard to soft.

mpcobj.MV.MinECR = 1; mpcobj.MV.MaxECR = 1;

Define an output constraint.

mpcobj.OV.Max = 1.1;

Run a new closed-loop simulation.

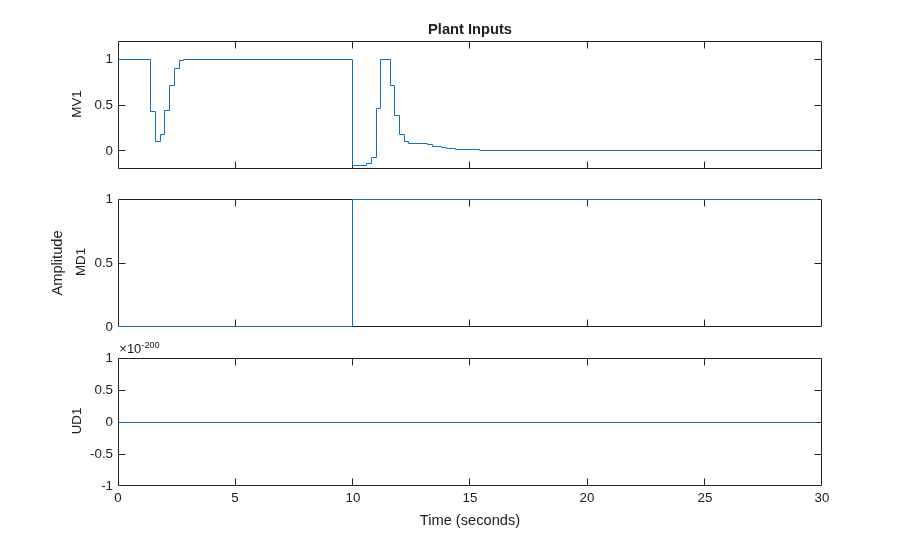

sim(mpcobj,Tf,r,v)

Assuming no disturbance added to measured output channel #1. -->The "Model.Noise" property of the "mpc" object is empty. Assuming white noise on each measured output channel.

MV constraint has been slightly violated while MO constraint has been violated more. Penalize more output constraint and rerun the simulation.

```
mpcobj.OV.MaxECR = 0.001; % The closer to zero, the harder the constraint
sim(mpcobj,Tf,r,v)
```

Assuming no disturbance added to measured output channel #1. -->The "Model.Noise" property of the "mpc" object is empty. Assuming white noise on each measured output channel.

Now MO constraint has been slightly violated while MV constraint has been violated more as expected.

Model Predictive Control Toolbox™ software provides a default Kalman filter to estimate the state of plant, disturbance, and noise models. You can change the Kalman gains.

First, retrieve the default Kalman gains and state-space matrices.

[L,M,A1,Cm1] = getEstimator(mpcobj);

The default observer poles are:

e = eig(A1-A1*M*Cm1)

e = 0.5708 + 0.4144i 0.5708 - 0.4144i 0.4967 + 0.0000i 0.9334 + 0.1831i 0.9334 - 0.1831i 0.8189 + 0.0000i

Design a new state estimator by pole-placement.

poles = [.8 .75 .7 .85 .6 .81]; L = place(A1',Cm1',poles)'; M = A1\L; setEstimator(mpcobj,L,M);

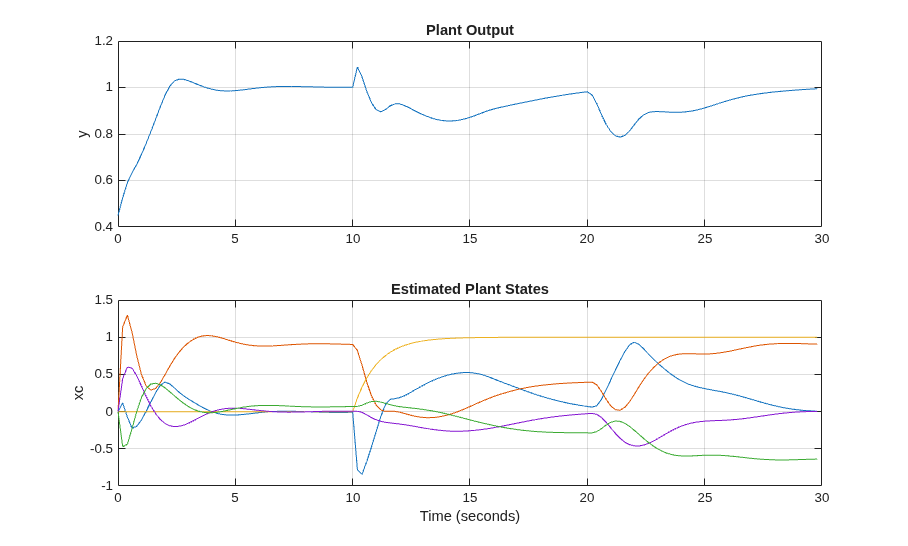

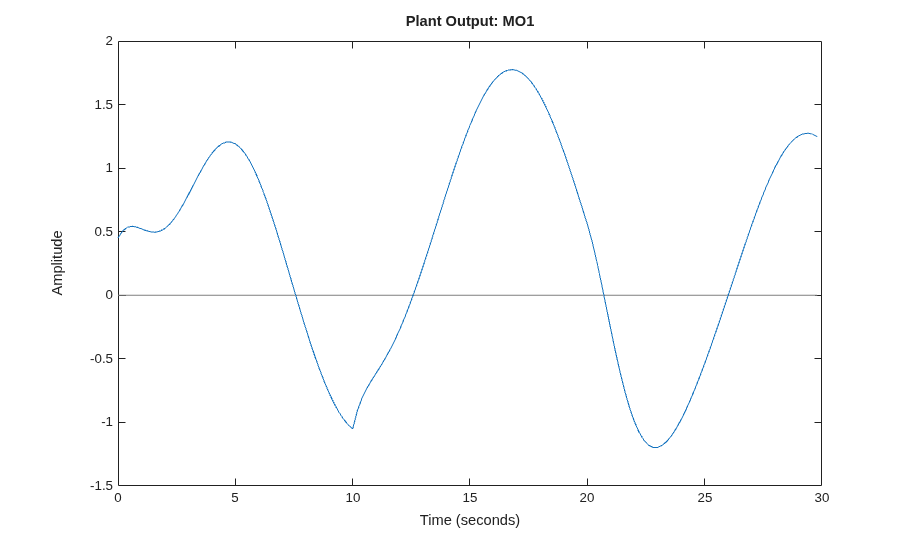

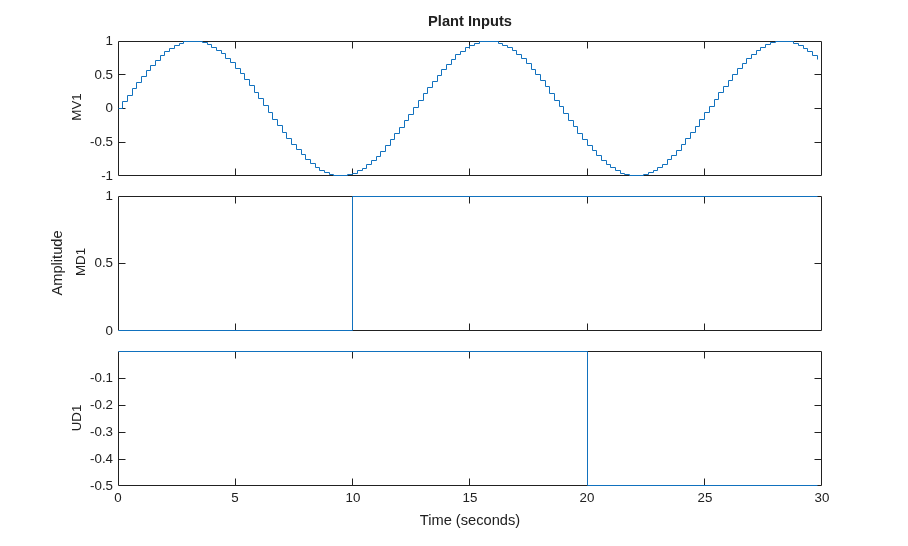

Test the behavior of plant in open-loop using the `sim`

command. Set the `OpenLoop`

flag to `on`

, and provide the sequence of manipulated variables that excite the system.

```
SimOptions.OpenLoop = 'on';
SimOptions.MVSignal = sin((0:Tf-1)'/10);
```

As the reference signal will be ignored, we can avoid specifying it.

sim(mpcobj,Tf,[],v,SimOptions)

Assuming no disturbance added to measured output channel #1. -->The "Model.Noise" property of the "mpc" object is empty. Assuming white noise on each measured output channel. -->Converting model to discrete time.

To examine whether the MPC controller will be able to reject constant output disturbances and track constant setpoint with zero offsets in steady-state, compute the DC gain from output disturbances to controlled outputs using the `cloffset`

command.

```
DC = cloffset(mpcobj);
fprintf('DC gain from output disturbance to output = %5.8f (=%g) \n',DC,DC);
```

DC gain from output disturbance to output = 0.00000000 (=3.10862e-15)

A zero gain means that the output will track the desired setpoint.

`mpcmove`

First, obtain the discrete-time state-space matrices of the plant.

[A,B,C,D] = ssdata(model); Tstop = 5; % Simulation time x = [0 0 0 0 0]'; % Initial state of the plant xmpc = mpcstate(mpcobj); % Initial state of the MPC controller r = 1; % Output reference signal

Store the closed-loop MPC trajectories in arrays `YY`

, `UU`

, and `XX`

.

YY=[]; UU=[]; XX=[];

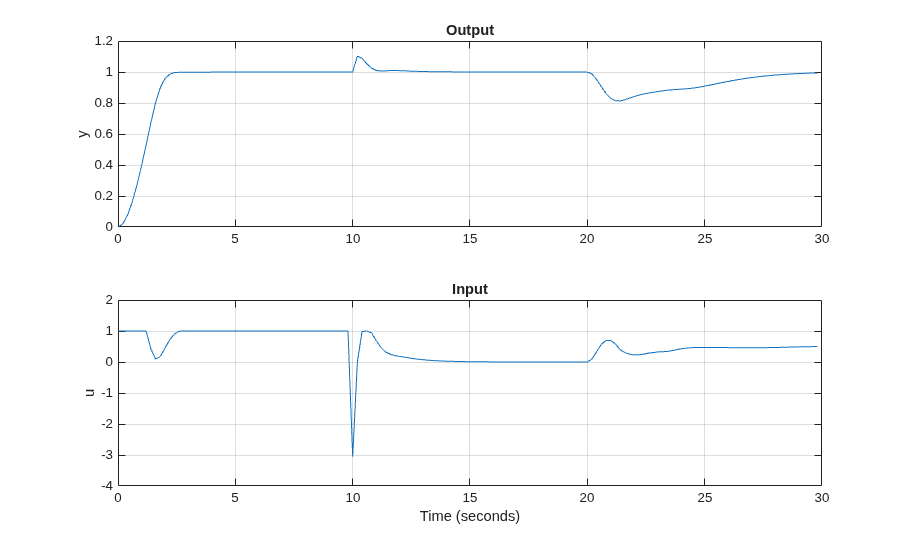

Run the simulation loop

for t=0:round(Tstop/Ts)-1 % Store states XX = [XX,x]; %#ok<*AGROW> % Define measured disturbance signal v = 0; if t*Ts>=10 v = 1; end % Define unmeasured disturbance signal d = 0; if t*Ts>=20 d = -0.5; end % Plant equations: output update (no feedthrough from MV to Y) y = C*x + D(:,2)*v + D(:,3)*d; YY = [YY,y]; % Compute MPC action u = mpcmove(mpcobj,xmpc,y,r,v); % Plant equations: state update x = A*x + B(:,1)*u + B(:,2)*v + B(:,3)*d; UU = [UU,u]; end

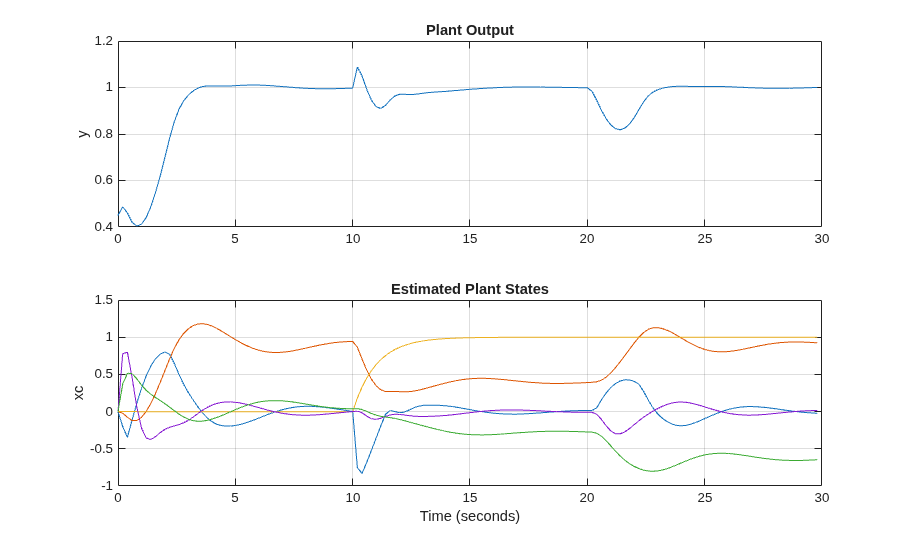

Plot the results.

figure subplot(2,1,1) plot(0:Ts:Tstop-Ts,YY) grid title('Output') subplot(2,1,2) plot(0:Ts:Tstop-Ts,UU) grid title('Input')

If at any time during the simulation you want to check the optimal predicted trajectories, it can be returned by `mpcmove`

as well. Assume you want to start from the current state and have a set-point change to 0.5, and assume the measured disturbance is gone.

r = 0.5; v = 0; [~,Info] = mpcmove(mpcobj,xmpc,y,r,v);

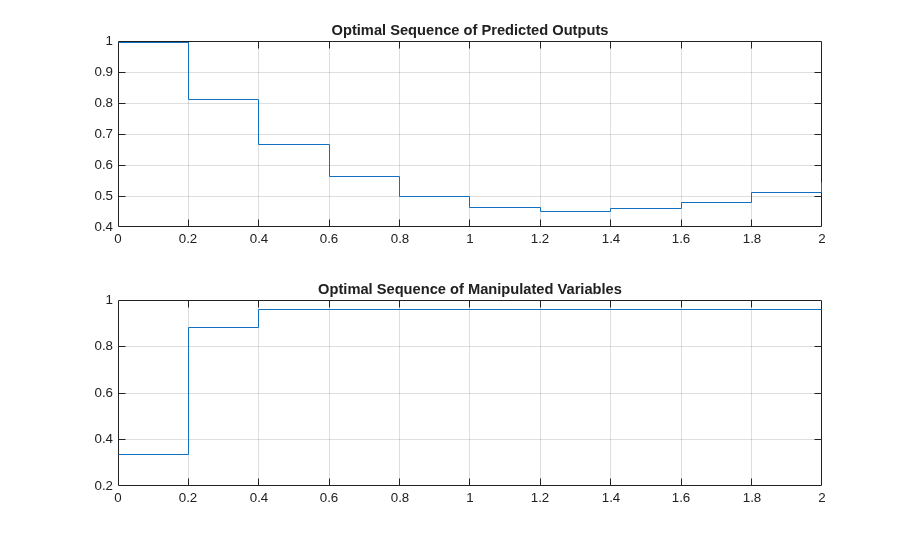

We now extract the optimal predicted trajectories.

topt = Info.Topt; yopt = Info.Yopt; uopt = Info.Uopt; figure subplot(2,1,1) stairs(topt,yopt) title('Optimal sequence of predicted outputs') grid subplot(2,1,2) stairs(topt,uopt) title('Optimal sequence of manipulated variables') grid

When the constraints are not active, MPC controller behaves like a linear controller. You can get the state-space form of the MPC controller.

```
LTI = ss(mpcobj,'rv');
```

Get state-space matrices of linearized controller.

[AL,BL,CL,DL] = ssdata(LTI);

Simulate linear MPC closed-loop system and compare the linearized MPC controller with the original MPC controller with constraints turned off.

mpcobj.MV = []; % No input constraints mpcobj.OV = []; % No output constraints Tstop = 5; %Simulation time xL = zeros(size(BL,1),1); % Initial state of linearized MPC controller x = [0 0 0 0 0]'; % Initial state of plant y = 0; % Initial measured output r = 1; % Output reference set-point u = 0; % Previous input command YY = []; XX = []; xmpc = mpcstate(mpcobj); for t = 0:round(Tstop/Ts)-1 YY = [YY,y]; XX = [XX,x]; v = 0; if t*Ts>=10 v = 1; end d = 0; if t*Ts>=20 d = -0.5; end uold = u; % Compute the linear MPC control action u = CL*xL+DL*[y;r;v]; % Compare the input move with the one provided by MPCMOVE uMPC = mpcmove(mpcobj,xmpc,y,r,v); dispStr(t+1) = {sprintf('t=%5.2f, u=%7.4f (provided by LTI), u=%7.4f (provided by MPCOBJ)',t*Ts,u,uMPC)}; %#ok<*SAGROW> % Update plant equations x = A*x + B(:,1)*u + B(:,2)*v + B(:,3)*d; % Update controller equations xL = AL*xL + BL*[y;r;v]; % Update output equations y = C*x + D(:,1)*u + D(:,2)*v + D(:,3)*d; end

Display the results.

for t=0:round(Tstop/Ts)-1 disp(dispStr{t+1}); end

t= 0.00, u= 5.2478 (provided by LTI), u= 5.2478 (provided by MPCOBJ) t= 0.20, u= 3.0134 (provided by LTI), u= 3.0134 (provided by MPCOBJ) t= 0.40, u= 0.2281 (provided by LTI), u= 0.2281 (provided by MPCOBJ) t= 0.60, u=-0.9952 (provided by LTI), u=-0.9952 (provided by MPCOBJ) t= 0.80, u=-0.8749 (provided by LTI), u=-0.8749 (provided by MPCOBJ) t= 1.00, u=-0.2022 (provided by LTI), u=-0.2022 (provided by MPCOBJ) t= 1.20, u= 0.4459 (provided by LTI), u= 0.4459 (provided by MPCOBJ) t= 1.40, u= 0.8489 (provided by LTI), u= 0.8489 (provided by MPCOBJ) t= 1.60, u= 1.0192 (provided by LTI), u= 1.0192 (provided by MPCOBJ) t= 1.80, u= 1.0511 (provided by LTI), u= 1.0511 (provided by MPCOBJ) t= 2.00, u= 1.0304 (provided by LTI), u= 1.0304 (provided by MPCOBJ) t= 2.20, u= 1.0053 (provided by LTI), u= 1.0053 (provided by MPCOBJ) t= 2.40, u= 0.9920 (provided by LTI), u= 0.9920 (provided by MPCOBJ) t= 2.60, u= 0.9896 (provided by LTI), u= 0.9896 (provided by MPCOBJ) t= 2.80, u= 0.9925 (provided by LTI), u= 0.9925 (provided by MPCOBJ) t= 3.00, u= 0.9964 (provided by LTI), u= 0.9964 (provided by MPCOBJ) t= 3.20, u= 0.9990 (provided by LTI), u= 0.9990 (provided by MPCOBJ) t= 3.40, u= 1.0002 (provided by LTI), u= 1.0002 (provided by MPCOBJ) t= 3.60, u= 1.0004 (provided by LTI), u= 1.0004 (provided by MPCOBJ) t= 3.80, u= 1.0003 (provided by LTI), u= 1.0003 (provided by MPCOBJ) t= 4.00, u= 1.0001 (provided by LTI), u= 1.0001 (provided by MPCOBJ) t= 4.20, u= 1.0000 (provided by LTI), u= 1.0000 (provided by MPCOBJ) t= 4.40, u= 0.9999 (provided by LTI), u= 0.9999 (provided by MPCOBJ) t= 4.60, u= 1.0000 (provided by LTI), u= 1.0000 (provided by MPCOBJ) t= 4.80, u= 1.0000 (provided by LTI), u= 1.0000 (provided by MPCOBJ)

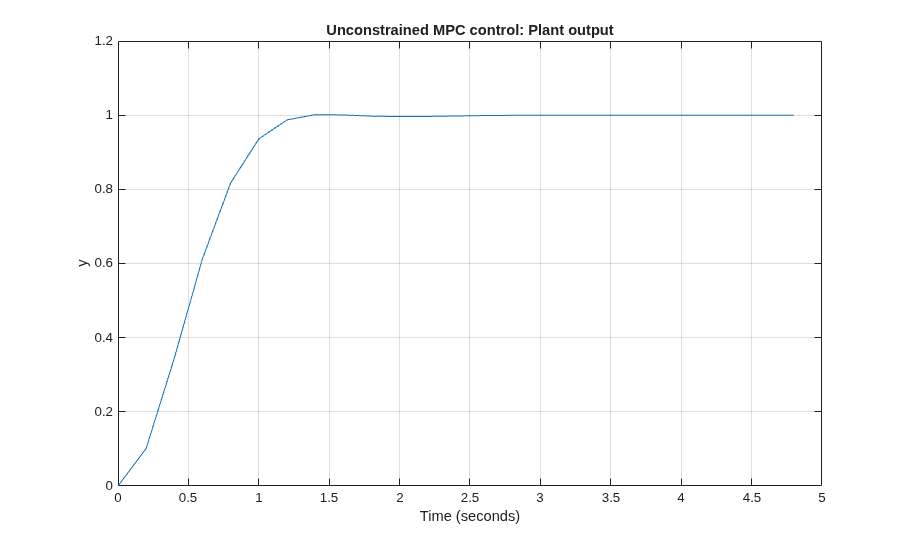

Plot the results.

figure plot(0:Ts:Tstop-Ts,YY) grid

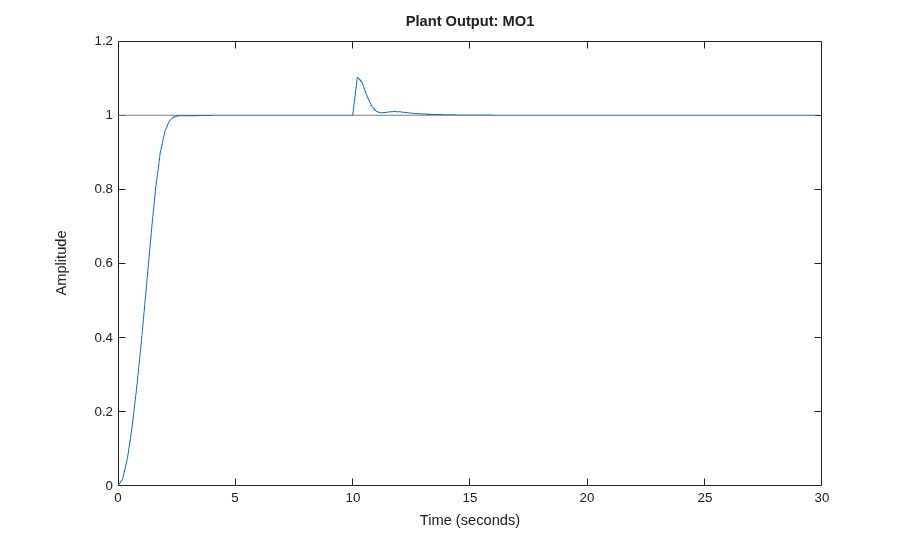

Running a closed-loop where all constraints are turned off is easy using `sim`

. We just specify an option in the SimOptions structure:

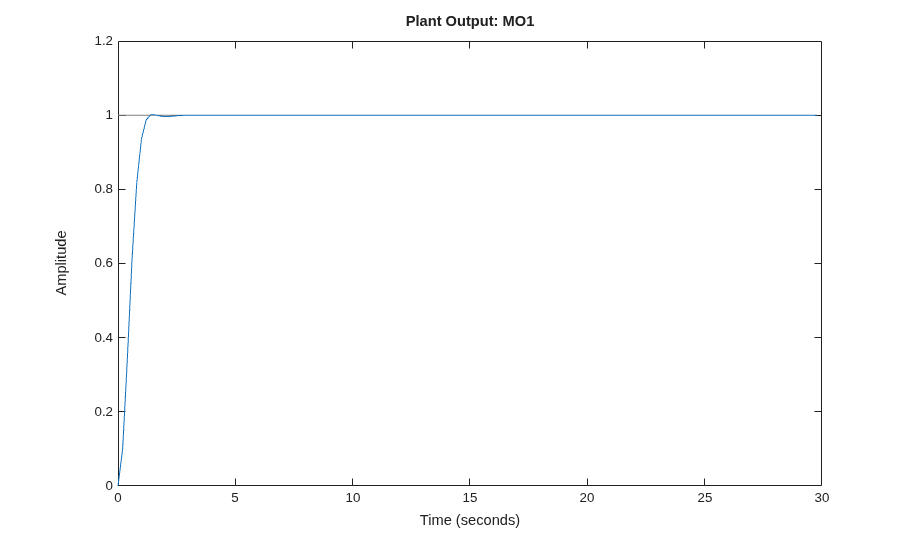

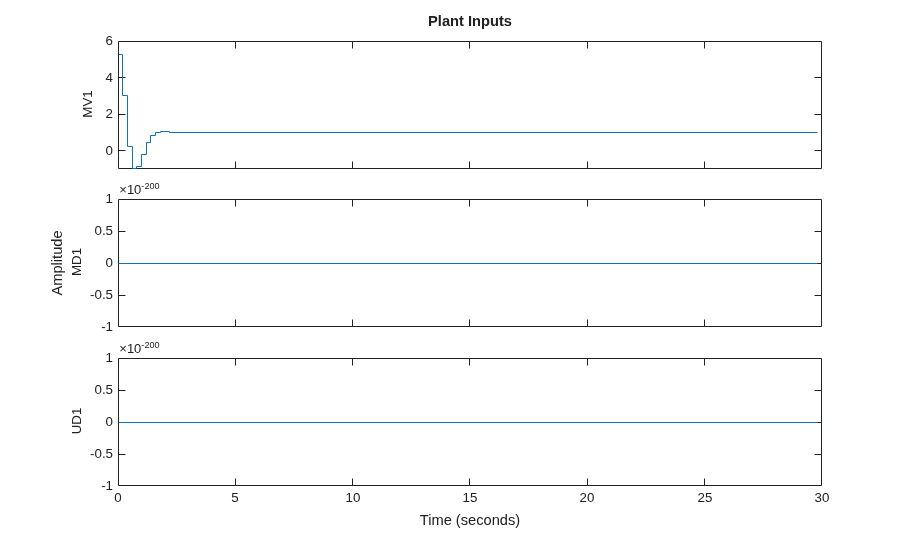

SimOptions = mpcsimopt(mpcobj); SimOptions.Constr = 'off'; % Remove all MPC constraints SimOptions.Unmeas = d; % unmeasured input disturbance sim(mpcobj,Tf,r,v,SimOptions);

To run this example, Simulink® is required.

if ~mpcchecktoolboxinstalled('simulink') disp('Simulink(R) is required to run this part of the example.') return end

Recreate the MPC controller.

mpcobj = mpc(model,Ts,10,3); mpcobj.MV = struct('Min',0,'Max',1,'RateMin',-10,'RateMax',10); mpcobj.Model.Disturbance = tf(sqrt(1000),[1 0]);

-->The "Weights.ManipulatedVariables" property of "mpc" object is empty. Assuming default 0.00000. -->The "Weights.ManipulatedVariablesRate" property of "mpc" object is empty. Assuming default 0.10000. -->The "Weights.OutputVariables" property of "mpc" object is empty. Assuming default 1.00000.

The continuous-time plant to be controlled has the following state-space realization:

[A,B,C,D] = ssdata(sys);

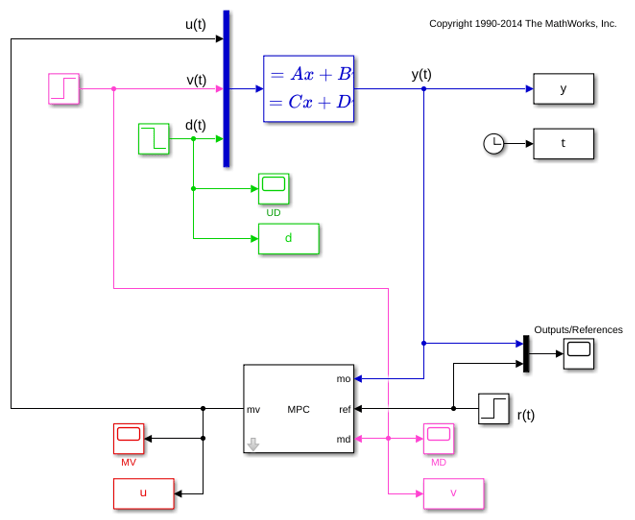

Simulate closed-loop MPC in Simulink.

```
mdl1 = 'mpc_miso';
open_system(mdl1)
sim(mdl1)
```

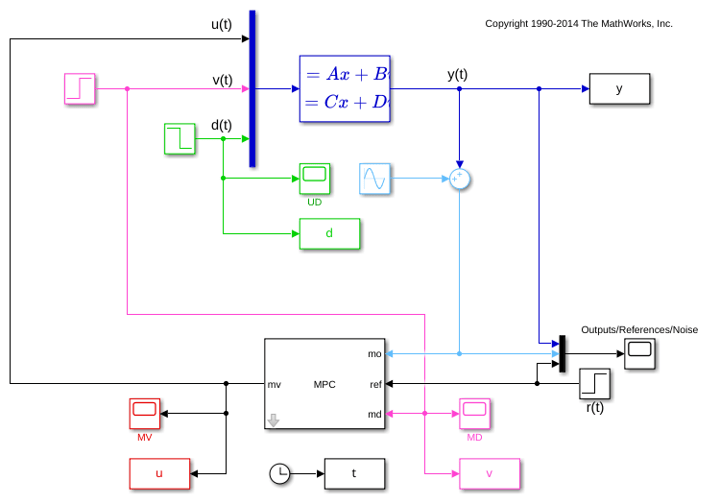

Next, run a simulation with sinusoidal output noise. Assume output measurements are affected by a sinusoidal measurement noise of frequency 0.1 Hz. You want to inform the MPC object about this so that state estimates can be improved.

omega = 2*pi/10; mpcobj.Model.Noise = 0.5*tf(omega^2,[1 0 omega^2]);

Revise the MPC design and specify a white Gaussian noise unmeasured disturbance with zero mean and variance `0.1`

.

mpcobj.Model.Disturbance = tf(0.1); mpcobj.weights = struct('MV',0,'MVRate',0.1,'OV',0.005); mpcobj.predictionhorizon = 40; mpcobj.controlhorizon = 3;

Run the simulation.

```
Tstop = 150;
mdl2 = 'mpc_misonoise';
open_system(mdl2)
sim(mdl2,Tstop)
```

-->Assuming output disturbance added to measured output channel #1 is integrated white noise. -->A feedthrough channel in NoiseModel was inserted to prevent problems with estimator design.

bdclose(mdl1) bdclose(mdl2)
