extractFrame

Extract pixel data for one frame of 2-D medical image series

Since R2022b

Syntax

X = extractFrame(medImage,frame)

Description

X = extractFrame(medImage,frame) extracts the pixel data for the frame at index frame of the medicalImage object medImage.

Examples

Extract Frame from Medical Image Series

Specify the name of an echocardiogram series stored as a DICOM file.

fileName = "heartUltrasoundSequence.dcm";

Create a medical image object for the echocardiogram series.

medImage = medicalImage(fileName);

Check the NumFrames property value to determine the number of frames in the series. medImage contains three frames.

numFrames = medImage.NumFrames

numFrames = 3

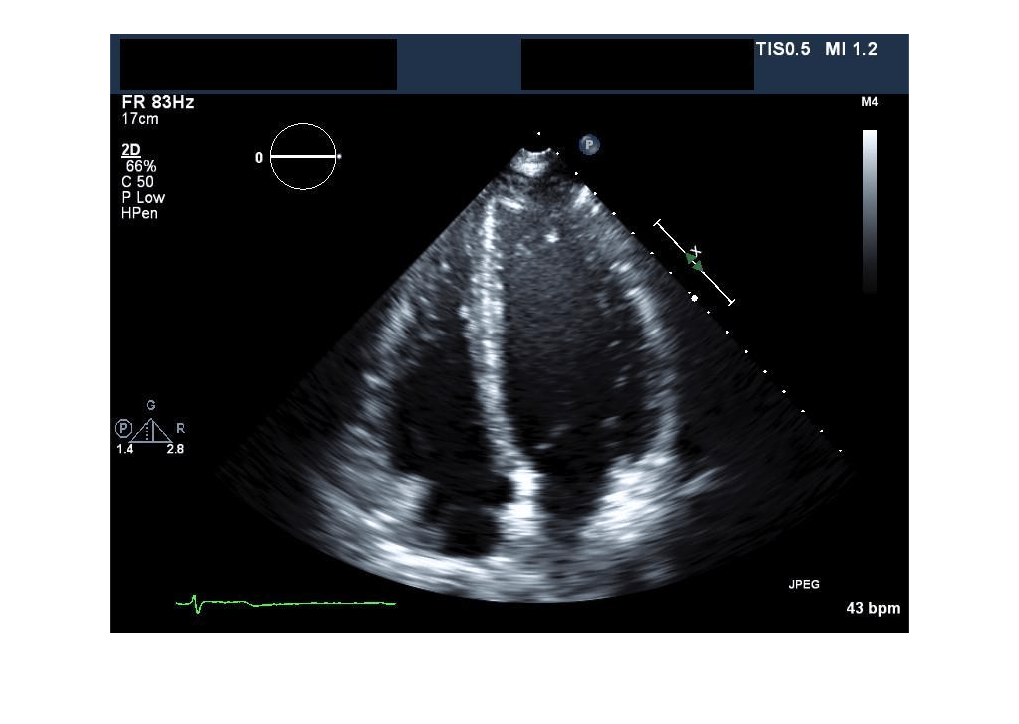

Extract the second frame in the image series. Display the extracted frame image.

X = extractFrame(medImage,2);
imshow(X)

Input Arguments

medImage — Medical image

medicalImage object

Medical image, specified as a medicalImage object.

frame — Frame index

positive integer scalar in range [1, numFrames]

Frame index, specified as a positive integer scalar in the range [1, numFrames], where numFrames is the number of frames in the image or series of images in medImage. The number of frames is specified by the NumFrames property of medImage.

Data Types: double

Output Arguments

X — Pixel data of extracted frame

m-by-n numeric matrix

Pixel data of the extracted frame, returned as an m-by-n numeric matrix, where m and n are the first two dimensions of the image frame extracted from medImage. The X output matrix is the same data type as the Pixels property of medImage.

Version History

Introduced in R2022b
