imregdeform

Deformable registration of grayscale images or intensity volumes using total variation method

Since R2022b

Syntax

``[dispField,reg] = imregdeform(moving,fixed)``
``[dispField,reg] = imregdeform(moving,fixed,Name=Value)``

Description

The `imregdeform` function uses the total variation method to perform deformable registration of grayscale images or intensity volumes. You can use this function to register medical images or volumes deformed due to local transformations.

````[dispField,reg] = imregdeform(moving,fixed)` transforms the grayscale image or intensity volume `moving`, so that it is registered with the reference image or volume `fixed`, and returns the displacement field `dispField` and the registered image or volume `reg`.```

example

````[dispField,reg] = imregdeform(moving,fixed,Name=Value)` specifies options for the total variation method using one or more optional name-value arguments.```

Examples

collapse all

Load a reference image and an image to be registered into the workspace. Convert the images to grayscale.

```fixedImg = imread("hands1.jpg"); fixed = im2gray(fixedImg); movingImg = imread("hands2.jpg"); moving = im2gray(movingImg);```

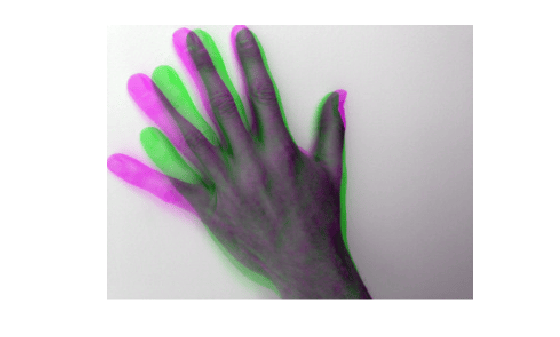

Display the fixed image and the moving image. Observe the deformation in the alignment of the images.

```figure imshowpair(fixed,moving)```

Register the moving image to the fixed image.

`[dispField,reg] = imregdeform(moving,fixed,NumPyramidLevels=6,GridRegularization=0.6);`
```--------------------------- Pyramid Level = 6 -------------------------------- Normalized Function local Closeness to Iteration rmse minima Step-size optimal solution 1 1.64147 37024.85 4.19 49.62783 2 1.48633 31590.32 24.34 48.04233 3 1.63155 30339.11 18.00 46.47121 4 1.33748 29085.22 7.83 60.12520 5 1.29691 28578.16 10.20 74.34988 6 1.35689 28002.80 14.17 78.68985 7 1.36835 27701.23 7.44 65.67400 8 1.17573 27384.96 8.51 35.42655 9 1.08997 26944.82 13.44 53.24290 10 0.95153 26374.55 5.58 29.71761 11 0.91025 26169.77 2.55 26.32110 12 0.91195 25891.90 5.95 34.23311 13 1.14507 25726.65 14.50 41.34727 14 1.22759 25281.23 11.61 33.04872 15 0.97035 24703.21 7.40 34.35227 16 1.03194 24307.52 9.90 34.04009 17 1.03114 24077.92 7.69 41.98692 18 0.98282 23736.04 14.83 46.11518 19 0.95928 23317.39 14.87 37.88543 20 0.92435 22891.46 17.10 45.98425 21 0.81884 22398.19 11.15 37.09230 22 0.70854 22097.88 6.20 23.16606 23 0.65405 21979.78 3.92 20.64745 24 0.58632 21890.52 3.22 17.18440 25 0.59774 21767.81 7.38 17.62879 26 0.63929 21698.98 8.36 22.69476 27 0.50519 21574.89 2.62 15.70961 28 0.50145 21491.14 3.01 12.74984 29 0.50583 21419.94 3.16 14.86162 30 0.48495 21390.37 4.85 13.89448 31 0.46792 21363.09 1.43 13.67136 32 0.40962 21356.92 1.65 9.81103 33 0.40800 21356.83 0.18 9.50099 --------------------------- Pyramid Level = 5 -------------------------------- Normalized Function local Closeness to Iteration rmse minima Step-size optimal solution 1 0.44400 23959.26 5.30 22.96675 2 0.39054 23254.00 9.46 18.54226 3 0.36834 23134.24 5.02 22.51686 4 0.33450 23051.56 1.59 12.51227 5 0.33048 23004.59 2.58 10.00633 6 0.32744 22960.51 3.02 8.53760 7 0.35590 22882.32 6.67 25.78812 8 0.32620 22788.98 1.99 10.72627 9 0.31109 22735.69 1.69 7.66283 10 0.30765 22695.63 2.81 6.17570 11 0.30926 22686.24 1.23 7.16721 12 0.31211 22682.41 0.80 6.14514 13 0.31531 22680.85 0.64 4.67112 14 0.31613 22680.72 0.19 4.48773 --------------------------- Pyramid Level = 4 -------------------------------- Normalized Function local Closeness to Iteration rmse minima Step-size optimal solution 1 0.28145 28405.52 4.99 21.00908 2 0.26476 27597.03 9.61 12.38693 3 0.24598 27383.91 4.02 15.36024 4 0.23363 27324.84 1.62 7.73944 5 0.23838 27210.31 2.64 5.38586 6 0.23927 27069.79 3.11 8.21936 7 0.24557 26887.38 5.87 15.04404 8 0.23496 26800.32 1.50 8.34007 9 0.23145 26768.71 1.57 4.85061 10 0.23168 26719.01 2.55 6.54169 11 0.23681 26642.15 5.61 15.08804 12 0.23464 26630.58 0.24 13.59382 13 0.23266 26610.13 0.46 10.57840 14 0.23255 26601.49 0.22 9.64808 --------------------------- Pyramid Level = 3 -------------------------------- Normalized Function local Closeness to Iteration rmse minima Step-size optimal solution 1 0.16744 30346.55 7.61 9.96159 2 0.16423 30102.90 4.35 8.32040 3 0.16156 29980.10 2.71 5.30050 4 0.16202 29875.25 3.51 5.31045 5 0.16292 29776.73 4.77 7.43418 6 0.16392 29666.28 4.26 6.45350 7 0.16464 29634.29 3.28 6.47225 8 0.16468 29602.16 3.41 9.24660 9 0.16277 29597.64 2.84 4.73214 10 0.16176 29572.86 3.45 4.35966 11 0.16176 29572.86 0.00 4.35966 --------------------------- Pyramid Level = 2 -------------------------------- Normalized Function local Closeness to Iteration rmse minima Step-size optimal solution 1 0.12139 29164.12 9.06 7.14654 2 0.11765 28862.99 5.23 7.51096 3 0.11638 28735.95 3.36 5.13431 4 0.11604 28645.66 3.50 6.77245 5 0.11627 28571.44 4.39 7.44083 6 0.11643 28484.52 3.61 6.90521 7 0.11650 28430.70 2.00 4.35053 8 0.11647 28378.27 2.95 6.94751 9 0.11613 28331.36 3.26 7.69638 10 0.11584 28303.83 2.11 6.46119 11 0.11552 28262.96 2.64 4.12784 12 0.11530 28249.84 2.80 11.04359 13 0.11536 28165.72 3.59 7.07857 14 0.11575 28115.74 1.89 4.88700 15 0.11620 28076.12 2.02 7.58377 16 0.11622 28074.33 0.16 7.56144 --------------------------- Pyramid Level = 1 -------------------------------- Normalized Function local Closeness to Iteration rmse minima Step-size optimal solution 1 0.08227 31990.04 11.46 9.08691 2 0.08242 31703.92 3.95 6.42656 3 0.08259 31673.28 2.83 5.67240 4 0.08258 31592.70 1.62 2.86764 5 0.08248 31472.07 3.63 3.94958 6 0.08236 31394.89 4.08 8.77305 7 0.08236 31318.72 3.15 6.37370 8 0.08241 31284.27 2.45 7.80299 9 0.08246 31261.99 2.13 5.12847 10 0.08250 31229.43 2.73 9.01949 11 0.08251 31184.45 2.76 3.64364 12 0.08250 31134.16 2.36 4.62542 13 0.08248 31093.55 2.19 4.72330 14 0.08242 31058.02 3.06 4.89104 15 0.08241 31054.33 0.65 4.79400 16 0.08241 31043.46 4.64 4.55499 17 0.08246 30993.96 1.31 4.77176 18 0.08250 30974.60 1.80 2.70114 19 0.08252 30930.28 3.55 2.98516 20 0.08254 30888.53 3.00 6.73955 21 0.08255 30859.24 0.88 3.84293 22 0.08255 30832.77 0.33 4.47996 23 0.08256 30830.20 0.29 4.08079 24 0.08256 30822.42 0.76 3.60567 25 0.08256 30821.96 0.31 3.39626 26 0.08256 30818.17 0.43 3.08195 ```

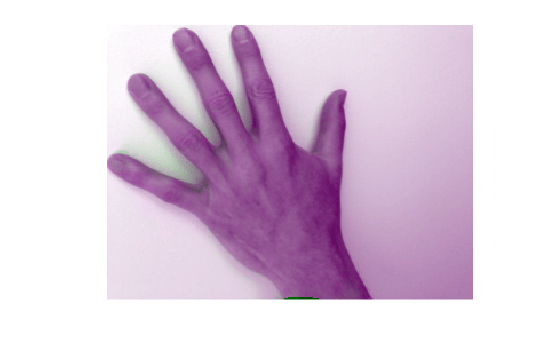

Display the fixed image and the registered image. Observe the alignment of the images.

```figure imshowpair(fixed,reg)```

Load a MAT file containing a reference volume into the workspace. Convert the reference volume to data type double.

```load mristack.mat fixed = im2double(squeeze(mristack));```

Create a deformed volume using local transformations.

```local = fixed(160:200,100:140,:); local = imrotate(local,90); moving = fixed; moving(160:200,100:140,:) = local;```

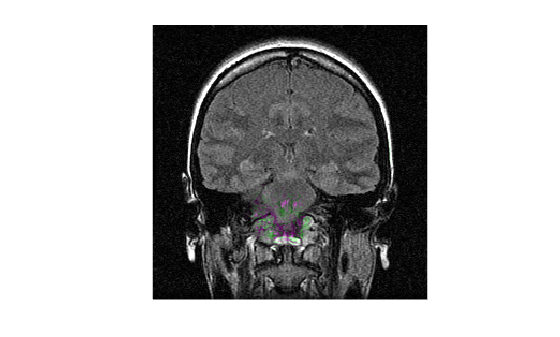

Display a slice of the fixed volume and a corresponding slice of the moving volume. Observe the deformation in the alignment of the volumes.

```figure imshowpair(fixed(:,:,10),moving(:,:,10))```

Register the moving volume to the fixed volume.

`[dispField,reg]=imregdeform(moving,fixed,GridRegularization=0.001);`
```--------------------------- Pyramid Level = 3 -------------------------------- Normalized Function local Closeness to Iteration rmse minima Step-size optimal solution 1 0.00016 34081.23 4.60 79.85176 2 0.00016 27591.18 16.75 70.06876 3 0.00019 26948.09 23.68 65.83620 4 0.00018 26498.21 5.02 59.19717 5 0.00018 25872.69 8.68 43.63346 6 0.00019 25774.23 7.70 46.14477 7 0.00019 25774.23 0.00 46.14477 --------------------------- Pyramid Level = 2 -------------------------------- Normalized Function local Closeness to Iteration rmse minima Step-size optimal solution 1 0.00009 24832.60 6.00 46.80394 2 0.00012 24491.93 29.78 58.92927 3 0.00014 21486.74 9.76 59.40296 4 0.00010 20100.15 7.82 36.86658 5 0.00010 19653.02 5.40 32.11689 6 0.00009 19344.57 6.25 27.88253 7 0.00009 19179.94 6.32 26.61265 8 0.00008 19105.13 6.35 25.79584 9 0.00008 19105.13 0.00 25.79584 --------------------------- Pyramid Level = 1 -------------------------------- Normalized Function local Closeness to Iteration rmse minima Step-size optimal solution 1 0.00005 22834.26 6.43 25.64158 2 0.00006 21498.26 20.85 63.44257 3 0.00007 20173.48 11.87 81.18027 4 0.00006 20039.11 21.12 51.90494 5 0.00006 19909.26 3.44 51.33763 6 0.00005 19738.00 4.92 45.68723 7 0.00005 19542.03 6.75 37.99851 8 0.00005 19430.34 7.47 30.56819 9 0.00005 19396.99 4.20 26.59914 ```

Display the same slice of the fixed volume and the corresponding slice of the registered volume. Observe the improved alignment of the volumes.

```figure imshowpair(fixed(:,:,10),reg(:,:,10))```

Input Arguments

collapse all

Image or volume to be registered, specified as a 2-D numeric matrix or 3-D numeric array, respectively. The size of `moving` must be the same as the size of `fixed`.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

Reference image or volume, specified as a 2-D numeric matrix or 3-D numeric array, respectively. The size of `fixed` must be the same as the size of `moving`.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: ```[dispField,reg] = imregdeform(moving,fixed,NumPyramidLevels=6)``` registers `moving` to `fixed` using six pyramid levels.

Grid spacing, specified as a two-element or three-element numeric vector.

If `moving` and `fixed` are 2-D grayscale images, `GridSpacing` must be a two-element vector, and its default value is `[4 4]`. If `moving` and `fixed` are 3-D intensity volumes, `GridSpacing` must be a three-element vector, and its default value is `[4 4 4]`. Smaller values of `GridSpacing` specify a finer grid resolution.

Data Types: `double`

Pixel size, specified as a two-element or three-element numeric vector. Values are in millimeters.

If `moving` and `fixed` are 2-D grayscale images, `PixelResolution` must be a two-element vector, and its default value is `[1 1]`. If `moving` and `fixed` are 3-D intensity volumes, `PixelResolution` must be a three-element vector, and its default value is `[1 1 1]`.

Data Types: `double`

Number of multiresolution pyramid levels, specified as a positive integer.

• If `moving` and `fixed` are 2-D grayscale images of size M-by-N, then the value of `NumPyramidlevels` must satisfy the condition ```min([M N]) > (2^NumPyramidLevels)*0.7```.

• If `moving` and `fixed` are 3-D intensity volumes of size M-by-N-by-P, then the value of `NumPyramidlevels` must satisfy the condition `min([M N P]) > (2^NumPyramidLevels)*0.7`.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

Weighing factor for grid displacement regularization, specified as a nonnegative scalar.

A large value for `GridRegularization` can create a smooth output displacement field, whereas a small value can create more localized displacements.

Data Types: `double`

Progress information output, specified as a numeric or logical `1` (`true`) or `0` (`false`). Specify `DisplayProgress` as `true` to display information such as the number of iterations, normalized root mean square error (RMSE), function local minima, step size, and closeness to optimal solution.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `logical`

Output Arguments

collapse all

Displacement field, returned as a 3-D or 4-D numeric array.

If `moving` and `fixed` are 2-D grayscale images of size M-by-N, the displacement field `dispField` is a 3-D numeric array of size M-by-N-by-2, where `dispField(:,:,1)` and `dispField(:,:,2)` contain the displacements in the X- and Y- directions, respectively. If `moving` and `fixed` are 3-D intensity volumes of size M-by-N-by-P, the displacement field `dispField` is a 4-D numeric array of size M-by-N-by-P-by-3, where `dispField(:,:,1)`, `dispField(:,:,2)`, and `dispField(:,:,3)` contain the displacements in the X-, Y- and Z- directions, respectively.

Data Types: `double`

Registered image or volume, returned with the same size and data type as `moving`.

References

[1] Vishnevskiy, Valery, Tobias Gass, Gabor Szekely, Christine Tanner, and Orcun Goksel. “Isotropic Total Variation Regularization of Displacements in Parametric Image Registration.” IEEE Transactions on Medical Imaging 36, no. 2 (February 2017): 385–95. https://doi.org/10.1109/TMI.2016.2610583.

Version History

Introduced in R2022b
