plot
알파 셰이프 플로팅
설명
예제
3차원 알파 셰이프 플로팅 및 Patch 속성 수정
3차원 점 집합을 만듭니다.
[x1, y1, z1] = sphere(24);
x1 = x1(:);
y1 = y1(:);
z1 = z1(:);
x2 = x1+5;
P = [x1 y1 z1; x2 y1 z1];
P = unique(P,'rows');

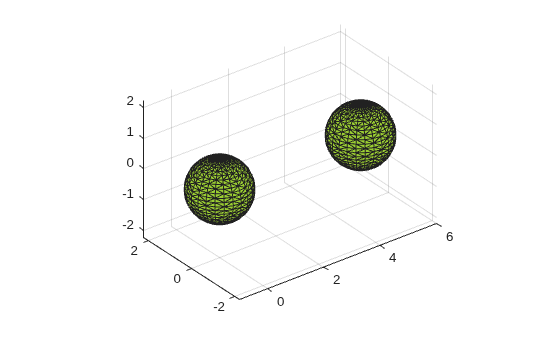

알파 반지름 1.5를 사용하여 알파 셰이프를 만들고 플로팅합니다.
shp = alphaShape(P,1.5); plot(shp)

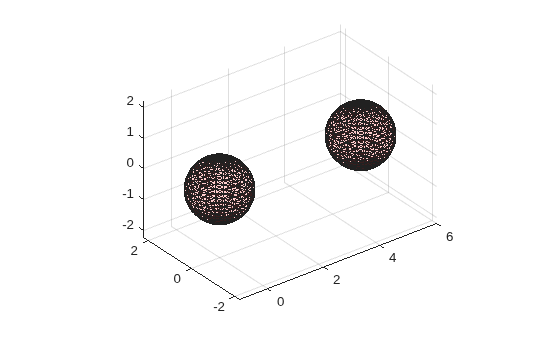

지정된 색 인자와 투명도 인자를 사용하여 알파 셰이프를 플로팅합니다.
plot(shp,'FaceColor','red','FaceAlpha',0.1)
입력 인수
shp
— 알파 셰이프
alphaShape
객체
알파 셰이프로, alphaShape
객체로 지정됩니다. 자세한 내용은 alphaShape
를 참조하십시오.
예: shp = alphaShape(x,y)
는 (x,y)
점 좌표에서 2차원 alphaShape
객체를 만듭니다.
출력 인수
h
— Patch
객체에 대한 핸들
핸들
Patch
객체 핸들로, 핸들로 반환됩니다. 자세한 내용은 patch 객체 소개 항목을 참조하십시오.
버전 내역
R2014b에 개발됨
