criticalAlpha
알파 셰이프에서 임계 변환을 정의하는 알파 반지름
설명
예제
2차원 포인트 클라우드의 임계 알파 값 구하기

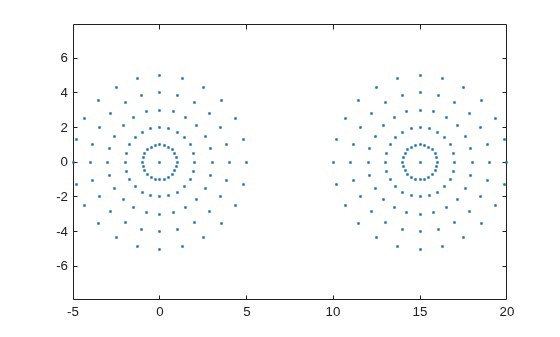

2차원 점 집합을 만들고 플로팅합니다.
th = (pi/12:pi/12:2*pi)'; x1 = [reshape(cos(th)*(1:5), numel(cos(th)*(1:5)),1); 0]; y1 = [reshape(sin(th)*(1:5), numel(sin(th)*(1:5)),1); 0]; x = [x1; x1+15;]; y = [y1; y1]; plot(x,y,'.') axis equal
디폴트 알파 반지름을 사용하여 알파 셰이프를 만듭니다.
shp = alphaShape(x,y);

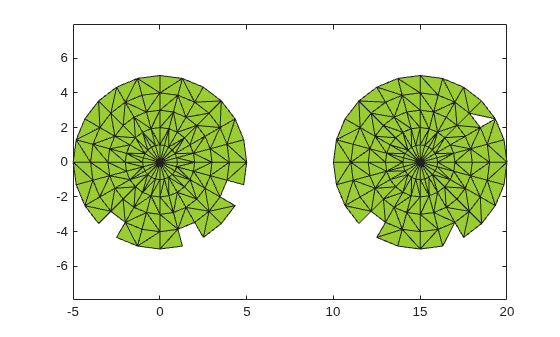

모든 점을 포함할 수 있는 알파 셰이프를 생성하는 가장 작은 알파 반지름을 계산하고 해당하는 알파 셰이프를 플로팅합니다.
pc = criticalAlpha(shp,'all-points');
shp.Alpha = pc;
plot(shp)

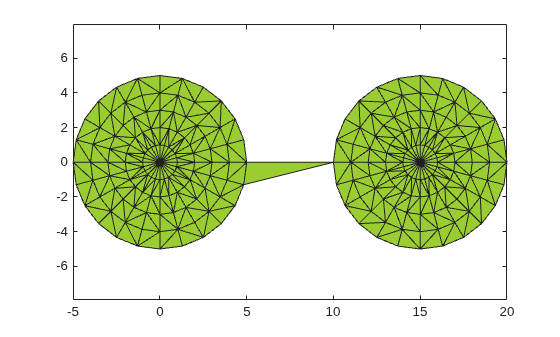

모든 점을 둘러싸고 영역이 하나만 포함된 알파 셰이프를 생성하는 가장 작은 알파 반지름을 계산합니다.
shp = alphaShape(x,y);
pc = criticalAlpha(shp,'one-region');
shp.Alpha = pc;
plot(shp)
입력 인수
shp
— 알파 셰이프
alphaShape
객체
알파 셰이프로, alphaShape
객체로 지정됩니다. 자세한 내용은 alphaShape
를 참조하십시오.
예: shp = alphaShape(x,y)
는 (x,y)
점 좌표에서 2차원 alphaShape
객체를 만듭니다.
type
— 임계 변환의 유형
'all-points'
| 'one-region'
임계 변환의 유형으로, 'all-points'
, 'one-region'
중 하나로 지정됩니다.
'all-points'
는 모든 점을 포함하는 알파 셰이프를 생성하는 가장 작은 알파 반지름에 해당합니다.'one-region'
은 모든 점을 포함하면서 영역은 하나만 포함된 알파 셰이프를 생성하는 가장 작은 알파 반지름에 해당합니다.
데이터형: char
출력 인수
a
— 임계 알파 반지름
스칼라
임계 알파 반지름으로, 스칼라로 반환됩니다. type
이 'all-points'
인 경우 a
는 모든 점을 포함하고, type
이 'one-region'
인 경우 단일 영역 내의 모든 점을 포함하는 알파 셰이프를 생성하는 알파 반지름의 값입니다.
criticalAlpha
를 사용하여 a
를 구한 후에, shp.Alpha = a
를 입력하여 shp
의 알파 반지름을 a
와 동일하게 만들 수 있습니다.
버전 내역
R2014b에 개발됨
