readFrame

Read Hesai point cloud from file

Since R2022a

Syntax

ptCloud = readFrame(hesaiReader)

ptCloud = readFrame(hesaiReader,frameNumber)

ptCloud = readFrame(hesaiReader,frameTime)

ptCloud = readFrame(___,ReadMode=readMode)

Description

ptCloud = readFrame(hesaiReader) reads the next point cloud in sequence from the Hesai^® PCAP file and returns a pointCloud object.

ptCloud = readFrame(hesaiReader,frameNumber) reads the point cloud with the specified frame number from the file.

ptCloud = readFrame(hesaiReader,frameTime) reads the first point cloud recorded at or after the given frameTime.

ptCloud = readFrame(___,ReadMode=readMode) reads the points that belong to the specified return mode readMode.

Examples

Read Hesai PCAP Point Cloud Using Frame Number

Download a ZIP file containing a Hesai packet capture (PCAP) file and then unzip the file.

zipFile = matlab.internal.examples.downloadSupportFile("lidar","data/hesai_BusyRoad.zip");
saveFolder = fileparts(zipFile);
pcapFileName = [saveFolder filesep 'hesai_BusyRoad.pcap'];
if ~exist(pcapFileName,"file")
    unzip(zipFile,saveFolder);
end

Create a hesaiFileReader object.

hesaiReader = hesaiFileReader(pcapFileName,"Pandar128E3X");

Read the fifth frame of the Hesai PCAP point cloud data.

frameNumber = 5;
ptCloud = readFrame(hesaiReader,frameNumber);

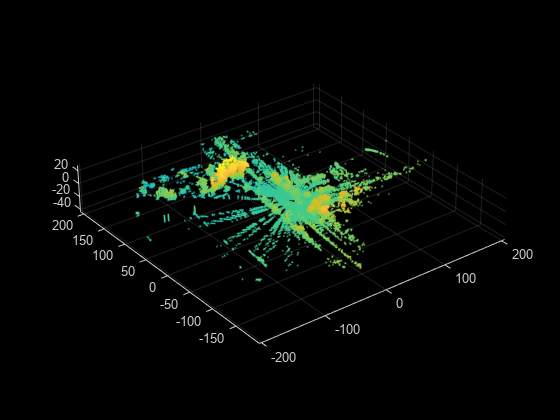

Display the point cloud.

pcshow(ptCloud(1))

Read Hesai PCAP Point Cloud Using Time Duration

Download a ZIP file containing a Hesai packet capture (PCAP) file and then unzip the file.

zipFile = matlab.internal.examples.downloadSupportFile("lidar","data/hesai_BusyRoad.zip");
saveFolder = fileparts(zipFile);
pcapFileName = [saveFolder filesep 'hesai_BusyRoad.pcap'];
if ~exist(pcapFileName,"file")
    unzip(zipFile,saveFolder);
end

Create a hesaiFileReader object.

hesaiReader = hesaiFileReader(pcapFileName,"Pandar128E3X");

Read the first Hesai PCAP point cloud frame from 3 seconds after the StartTime.

frameTime = hesaiReader.StartTime + seconds(3);
ptCloud = readFrame(hesaiReader,frameTime);

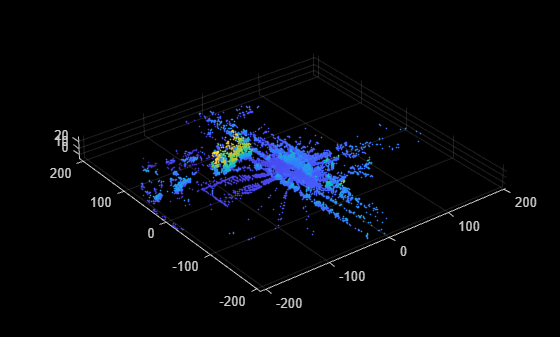

Display the point cloud.

pcshow(ptCloud(1))

Input Arguments

hesaiReader — Hesai file reader

hesaiFileReader object

Hesai file reader, specified as a hesaiFileReader object.

frameNumber — Frame number of desired point cloud in file

positive integer

Frame number of the desired point cloud in the file, specified as a positive integer. Frame numbers are sequential.

frameTime — Frame time of desired point cloud in file

duration scalar

Frame time of the desired point cloud in the file, specified as a duration scalar in seconds. The function returns the first frame available at or after the specified frameTime.

readMode — Mode for reading data from Hesai PCAP file

"hesaiReader.ReturnMode" (default) | character vector | cell array of character vectors | string scalar | string array

Mode for reading data from the Hesai PCAP file, specified as a character vector, cell array of character vectors, string scalar, or a string array. This value must be a subset of the ReturnMode property of the hesaiFileReader object.

If you specify this argument as a cell array of character vectors or string array, then this function returns a point cloud array containing point clouds that belong to the specified modes in the same order.

Example: ReadMode="hesaiReader.ReturnMode" specifies the return mode to read point cloud data.

Output Arguments

ptCloud — Point cloud

pointCloud object | array of pointCloud objects

Point cloud, returned as a pointCloud object or array of pointCloud objects. The function returns an array of pointCloud objects only when you specify readMode as a cell array of character vectors or string array. The order of the pointCloud objects in the array corresponds to the order of the specified read modes in the readMode argument.
