getimage

Image data from axes

Description

I = getimage(h) returns the first image data contained in the graphics object h.

[x,y,I] = getimage(h) also returns the image extent in the x and y direction.

[___,flag] = getimage(h) also returns a flag that indicates the type of image that h contains.

example

[___] = getimage returns information for the current axes object.

Examples

collapse all

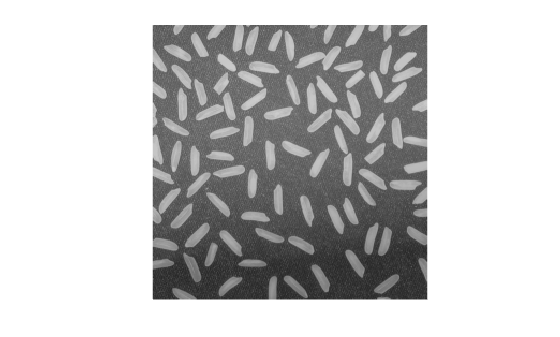

Display image directly from a file using imshow and create a variable in the workspace that contains the image data.

imshow rice.png

I = getimage;

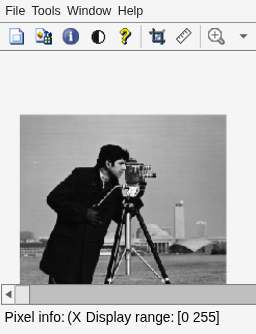

Display image directly from a file using the Image Viewer app (imtool) and create a variable in the workspace that contains the image data.

h = imtool('cameraman.tif');

I = getimage(imgca);

Input Arguments

collapse all

Handle to a figure, axes, uipanel, or image graphics object, specified as a handle. If h is an axes or figure handle containing multiple images, then getimage uses the first image returned by findobj(h,'Type','image').

Output Arguments

collapse all

Image data, returned as a numeric array. I is identical to the image CData; it contains the same values and is of the same class as the image CData. If h is not an image or does not contain an image, then I is empty.

Image extent in the x direction, returned as a 2-element numeric vector of the form [xmin xmax]. x is identical to the image XData.

Data Types: double

Image extent in the y direction, returned as a 2-element numeric vector of the form [ymin ymax]. y is identical to the image YData.

Data Types: double

Image type, returned as an integer with one of these values:

Flag

Type of Image

0

Not an image; I is returned as an empty matrix

1

Indexed image

2

Intensity image with values in standard range. The standard range for single and double images is [0,1].

3

Intensity data, but not in standard range

4

RGB image

5

Binary image

Data Types: double

See Also

|

Introduced before R2006a
