sub2blocksub

Convert pixel subscripts to block subscripts

    Description

    blocksub = sub2blocksub(bim,pixelsub) converts the pixel subscripts in pixelsub to the block subscripts identifying the block containing the specified pixel.

    example

    blocksub = sub2blocksub(bim,pixelsub,'Level',L) additionally specifies the resolution level to use in a multi-resolution image. By default, Level is 1.

    Examples

    collapse all

    Create a small sample image as a 5-by-7 matrix of zeros. Here is an illustration of the small sample image, with the pixel coordinates of the four corners provided.

    Create a blocked image from the sample image, specifying a 2-by-2 block size. To create this blocked image, use blockedImage in write mode.

    bim = blockedImage([], [5 7], [2 2], uint8(0), "Mode", 'w');

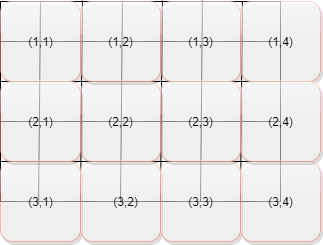

    Here is an illustration of the blocked image overlaid on the original image. It is divided into 2-by-2 blocks. In the diagram, each block contains it's block coordinates.

    To determine which block contains a particular pixel, convert the pixel subscripts into block subscripts by using the sub2blocksub function. By default, if the image is a multiresolution image, sub2blocksub uses pixel coordinates from coarest level, although you can specify any level. Since the sample image has only one resolution level, sub2blocksub converts level 1.

    [blocksub] = sub2blocksub(bim,[2 3])
    blocksub = 1×2

         1     2



    Input Arguments

    collapse all

    Blocked image, specified as a blockedImage object.

    Pixel subscripts, specified as a K-by-N integer-valued vector, N is the number of dimensions and K is the number of coordinates.

    Example:

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

    Output Arguments

    collapse all

    Subscripts of the block that contains the pixel, returned as a K-by-N integer-valued vector, for an N-dimensional blocked image. K is the number of coordinates.
