Get Started with MATLAB to High-Level Synthesis Workflow Using HDL Coder App

This example shows how to create an HDL Coder™ project and generate SystemC code This example shows how to create an HDL Coder™ project and generate SystemC® code This example shows how to create an HDL Coder™ project and generate High-Level Synthesis (HLS) code from a MATLAB® design for a symmetric finite impulse response (FIR) filter.

Set up the FIR model and test bench for this example.


FIR Filter MATLAB Design

The MATLAB design mlhdlc_sfir is a simple symmetric FIR filter. Ensure that the file path includes no spaces.

design_name = 'mlhdlc_sfir';
testbench_name = 'mlhdlc_sfir_tb';

Review the design.

% MATLAB design: Symmetric FIR Filter
% Introduction:
% We can reduce the complexity of the FIR filter by leveraging its symmetry.
% Symmetry for an n-tap filter implies, coefficient h0 = coefficient hn-1,
% coefficient, h1 = coefficient hn-2, etc. In this case, the number of
% multipliers can be approximately halved. The key is to add the
% two data values that need to be multiplied with the same coefficient
% prior to performing the multiplication.
% Key Design pattern covered in this example:
% (1) Filter states represented using the persistent variables
% (2) Filter coefficients passed in as parameters

%   Copyright 2011-2019 The MathWorks, Inc.

function [y_out, delayed_xout] = mlhdlc_sfir(x_in,h_in1,h_in2,h_in3,h_in4)
% Symmetric FIR Filter

% declare and initialize the delay registers
persistent ud1 ud2 ud3 ud4 ud5 ud6 ud7 ud8;
if isempty(ud1)
    ud1 = 0; ud2 = 0; ud3 = 0; ud4 = 0; ud5 = 0; ud6 = 0; ud7 = 0; ud8 = 0;

% access the previous value of states/registers
a1 = ud1 + ud8; a2 = ud2 + ud7;
a3 = ud3 + ud6; a4 = ud4 + ud5;

% multiplier chain
m1 = h_in1 * a1; m2 = h_in2 * a2;
m3 = h_in3 * a3; m4 = h_in4 * a4;

% adder chain
a5 = m1 + m2; a6 = m3 + m4;

% filtered output
y_out = a5 + a6;

% delayout input signal
delayed_xout = ud8;

% update the delay line
ud8 = ud7;
ud7 = ud6;
ud6 = ud5;
ud5 = ud4;
ud4 = ud3;
ud3 = ud2;
ud2 = ud1;
ud1 = x_in;

FIR Filter MATLAB Test Bench

The MATLAB test bench mlhdlc_sfir_tb tests the filter design. Review this test bench.

% MATLAB test bench for the FIR filter

%   Copyright 2011-2019 The MathWorks, Inc.
clear mlhdlc_sfir;
T = 2;
dt = 0.001;
N = T/dt+1;
sample_time = 0:dt:T;

df = 1/dt;
sample_freq = linspace(-1/2,1/2,N).*df;

% input signal with noise
x_in = cos(2.*pi.*(sample_time).*(1+(sample_time).*75)).';

% filter coefficients
h1 = -0.1339; h2 = -0.0838; h3 = 0.2026; h4 = 0.4064;

len = length(x_in);
y_out = zeros(1,len);
x_out = zeros(1,len);

for ii=1:len
    data = x_in(ii);
    % call to the design 'mlhdlc_sfir' that is targeted for hardware
    [y_out(ii), x_out(ii)] = mlhdlc_sfir(data, h1, h2, h3, h4);

figure('Name', [mfilename, '_plot']);
xlabel('Time (ms)')

title('Input Signal (with noise)')
subplot(3,1,2); plot(1:len,y_out,'-b');
xlabel('Time (ms)')
title('Output Signal (filtered)')

freq_fft = @(x) abs(fftshift(fft(x)));

subplot(3,1,3); semilogy(sample_freq,freq_fft(x_in),'-b');
hold on
hold off
xlabel('Frequency (Hz)')
ylabel('Amplitude (dB)')
title('Input and Output Signals (Frequency domain)')
legend({'FilterIn', 'FilterOut'}, 'Location','South')
axis([-500 500 1 100])

Test MATLAB Algorithm

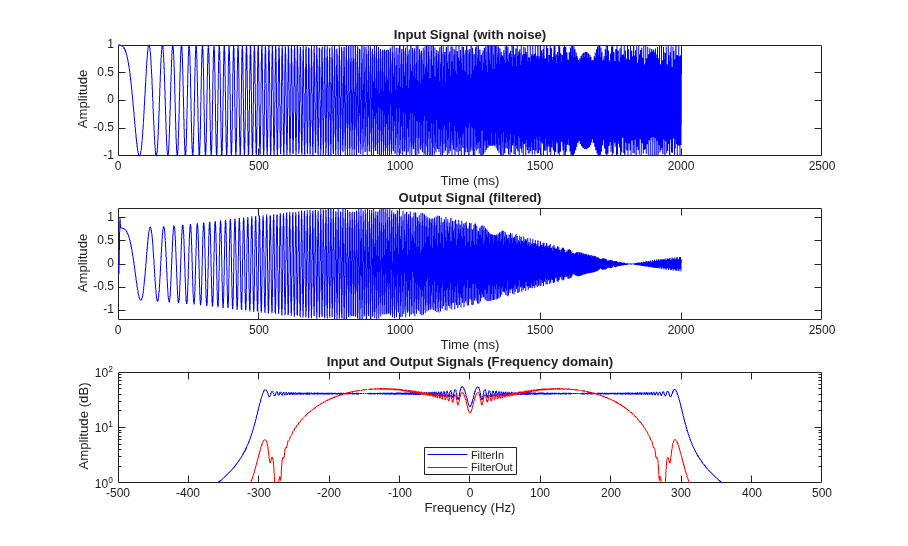

To avoid run-time errors, simulate the design by using the test bench.


Generate HLS Code by Using HDL Workflow Advisor

HLS code generation with the HDL Workflow Advisor has the following basic steps:

  1. At the MATLAB command line, set up the high-level synthesis (HLS) tool path for HLS code generation by using the function hdlsetuphlstoolpath.

  2. Create a MATLAB HDL Coder project.

  3. Add the design and test bench files to the project.

  4. Start the HDL Workflow Advisor for the MATLAB design.

  5. Run fixed-point conversion and HLS code generation.

Create HDL Coder Project and Assign Files

To create an HDL Coder project:

1. In the MATLAB Editor, on the Apps tab, select HDL Coder. Enter sfir_project as the Name of the project.

To create a project at the MATLAB command prompt, run the command:

coder -hdlcoder -new sfir_project

A sfir_project.prj file is created in the current folder.

2. For MATLAB Function, click the Add MATLAB function link and select the FIR filter MATLAB design mlhdlc_sfir. Under the MATLAB Test Bench section, click Add files and add the MATLAB test bench mlhdlc_sfir_tb.m.

3. Click Autodefine types and use the recommended types for the MATLAB design. The code generator infers the input types from the MATLAB test bench.

Run Fixed-Point Conversion and HLS Code Generation in HDL Workflow Advisor

1. To start the HDL Workflow Advisor, click the Workflow Advisor button.

2. In HDL Workflow Advisor step, specify Code Generation workflow as MATLAB to HLS.

3. If your design does not use fixed-point types and functions, then translate your floating-point MATLAB design to a fixed-point design. To examine the generated fixed-point code from the floating-point design, click the Fixed-Point Conversion task. The generated fixed-point MATLAB code opens in the MATLAB editor. For details, see Floating-Point to Fixed-Point Conversion.

4. In Select Code Generation Target step, specify Workflow as High Level Synthesis and Synthesis tool as Cadence Stratus.

5. Right-click the HLS Code Generation task and select Run to selected task.

The code generator runs the Workflow Advisor tasks to generate HLS code for the filter design.

To examine the generated HLS code, click the hyperlink to mlhdlc_sfir_fixptClass.hpp in the HLS Code Generation log window.

6. You can compare the output of the generated HLS code to that of the MATLAB code in the Verify with HDL Test Bench step. This step also generates HLS test bench files and creates the Cadence Stratus project.

7. Synthesis is the final step in the code generation process. In the Run Synthesis step, the generated HLS code is synthesized using the HLS tool and Verilog or VHDL code is generated.

HLS Code Generation Report

At the HLS Code Generation step, you can check the code generation report by clicking View Report in the log window.

The code generation report helps you to:

  • Debug code generation issues and verify that your MATLAB code is suitable for code generation.

  • View generated HLS code.

  • Access additional reports like a conformance report and resource utiliztion report.

  • See how the code generator determines and propagates type information for variables and expressions in your MATLAB code.

To view a MATLAB function in the code pane, click the name of the function in the MATLAB Source pane. In the code pane, when you pause on a variable or expression, a tooltip displays information about its size, type, and complexity.

For more information see, HLS Code Generation Report.


  • Only Cadence Stratus is supported as the high level synthesis tool. Cadence Stratus supports only point to point (p2p) communication for HLS code generation.

  • Generating HLS code that runs on multiple threads is not supported.

  • Systems objects are not supported for HLS code generation.

  • Structures and enumerations are not supported as inputs and outputs at the top-level DUT ports for HLS code generation.
