Make Predictions Using dlnetwork Object

This example shows how to make predictions using a dlnetwork object by splitting data into mini-batches.

For large data sets, or when predicting on hardware with limited memory, make predictions by splitting the data into mini-batches. When making predictions with SeriesNetwork or DAGNetwork objects, the predict function automatically splits the input data into mini-batches. For dlnetwork objects, you must split the data into mini-batches manually.

Load dlnetwork Object

Load a trained dlnetwork object and the corresponding classes.

s = load("digitsCustom.mat");
dlnet = s.dlnet;
classes = s.classes;

Load Data for Prediction

Load the digits data for prediction.

digitDatasetPath = fullfile(matlabroot,'toolbox','nnet','nndemos', ...
imds = imageDatastore(digitDatasetPath, ...

Make Predictions

Loop over the mini-batches of the test data and make predictions using a custom prediction loop. To read a mini-batch of data from the datastore, set the ReadSize property to the mini-batch size.

For each mini-batch:

  • Convert the data to dlarray objects with underlying type single and specify the dimension labels 'SSCB' (spatial, spatial, channel, batch).

  • For GPU prediction, convert to gpuArray objects.

  • Make predictions using the predict function.

  • Determine the class labels by finding the maximum scores.

Specify the prediction options. Specify a mini-batch size of 128 and make predictions on a GPU if one is available. Using a GPU requires Parallel Computing Toolbox™ and a CUDA® enabled NVIDIA® GPU with compute capability 3.0 or higher.

miniBatchSize = 128;
executionEnvironment = "auto";

Set the read size property of the image datastore to the mini-batch size.

imds.ReadSize = miniBatchSize;

Make predictions by looping over the mini-batches of data.

numObservations = numel(imds.Files);
YPred = strings(1,numObservations);
i = 1;

% Loop over mini-batches.
while hasdata(imds)
    % Read mini-batch of data.
    data = read(imds);
    X = cat(4,data{:});
    % Normalize the images.
    X = single(X)/255;
    % Convert mini-batch of data to dlarray.
    dlX = dlarray(X,'SSCB');
    % If training on a GPU, then convert data to gpuArray.
    if (executionEnvironment == "auto" && canUseGPU) || executionEnvironment == "gpu"
        dlX = gpuArray(dlX);
    % Make predictions using the predict function.
    dlYPred = predict(dlnet,dlX);
    % Determine corresponding classes.
    [~,idxTop] = max(extractdata(dlYPred),[],1);
    idxMiniBatch = i:min((i+miniBatchSize-1),numObservations);
    YPred(idxMiniBatch) = classes(idxTop);
    i = i + miniBatchSize;

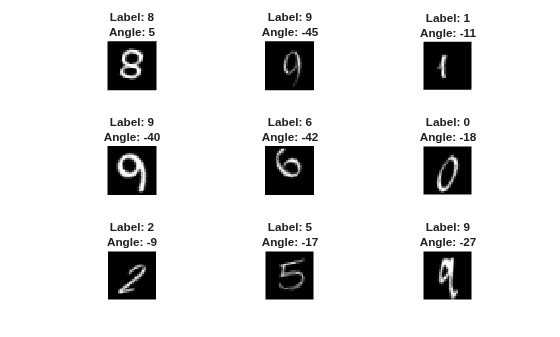

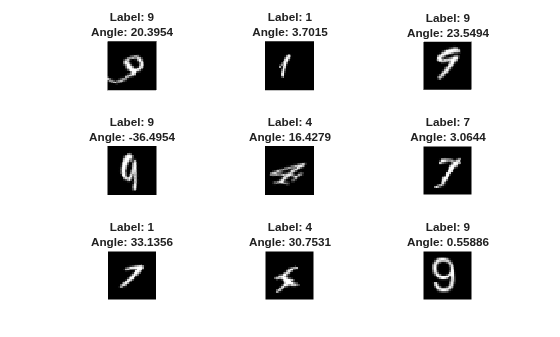

Visualize some of the predictions.

idx = randperm(numObservations,9);
for i = 1:9
    I = imread(imds.Files{idx(i)});
    label = YPred(idx(i));
    title("Label: " + label)
