plotes

(To be removed) Plot error surface of single-input neuron

plotes will be removed in a future release. For more information, see Transition Legacy Neural Network Code to dlnetwork Workflows.

For advice on updating your code, see Version History.

Syntax

plotes(WV,BV,ES,V)


Description

plotes(WV,BV,ES,V) takes these arguments,

WV	1-by-N row vector of values of W
BV	1-by-M row vector of values of B
ES	M-by-N matrix of error vectors
V	View (default = [-37.5, 30])

and plots the error surface with a contour underneath.

Calculate the error surface ES with errsurf.

Examples

Plot Error Surface of Single-Input Neuron

p = [3 2];
t = [0.4 0.8];
wv = -4:0.4:4;
bv = wv;
ES = errsurf(p,t,wv,bv,'logsig');

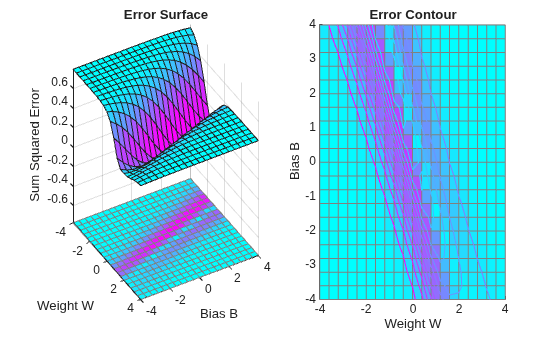

plotes(wv,bv,ES,[60 30])

Version History

Introduced before R2006a

R2026a: plotes will be removed

plotes will be removed in a future release.

To learn more about visualization workflows, see these examples and topics:

• Deep Learning Visualization Methods

• Explore Network Predictions Using Deep Learning Visualization Techniques

• Deep Learning Metrics

• Monitor Deep Learning Training Progress

• ROC Curve and Performance Metrics

For more information, see Transition Legacy Neural Network Code to dlnetwork Workflows.
