Image Classification Using DAG Network Deployed to FPGA

This example shows how to train, compile, and deploy a dlhdl.Workflow object that has ResNet-18 as the network object by using the Deep Learning HDL Toolbox™ Support Package for Xilinx FPGA and SoC. Use MATLAB® to retrieve the prediction results from the target device.

Required Products

For this example, you need:

  • Deep Learning Toolbox ™

  • Deep Learning HDL Toolbox ™

  • Deep Learning Toolbox Model for ResNet-18 Network

  • Deep Learning HDL Toolbox Support Package for Xilinx FPGA and SoC Devices

  • Image Processing Toolbox ™

Load Pretrained SeriesNetwork

To load the pretrained network ResNet-18, enter:

snet = resnet18;

To view the layers of the pretrained network, enter:

analyzeNetwork(snet);

The first layer, the image input layer, requires input images of size 227-by-227-by-3, where 3 is the number of color channels.

inputSize = snet.Layers(1).InputSize;

Define Training and Validation Data Sets

This example uses the MathWorks MerchData data set. This is a small data set containing 75 images of MathWorks merchandise, belonging to five different classes (cap, cube, playing cards, screwdriver, and torch).

curDir = pwd;
unzip('MerchData.zip');
imds = imageDatastore('MerchData', ...
'IncludeSubfolders',true, ...
'LabelSource','foldernames');
[imdsTrain,imdsValidation] = splitEachLabel(imds,0.7,'randomized');

Replace Final Layers

The fully connected layer and classification layer of the pretrained network net are configured for 1000 classes. These two layers fc1000 and ClassificationLayer_predictions in ResNet-18, contain information on how to combine the features that the network extracts into class probabilities and predicted labels. These two layers must be fine-tuned for the new classification problem. Extract all the layers, except the last two layers, from the pretrained network.

lgraph = layerGraph(snet)
lgraph =
  LayerGraph with properties:

         Layers: [71×1 nnet.cnn.layer.Layer]
    Connections: [78×2 table]
     InputNames: {'data'}
    OutputNames: {'ClassificationLayer_predictions'}

numClasses = numel(categories(imdsTrain.Labels))
numClasses = 5
newLearnableLayer = fullyConnectedLayer(numClasses, ...
'Name','new_fc', ...
'WeightLearnRateFactor',10, ...
'BiasLearnRateFactor',10);
lgraph = replaceLayer(lgraph,'fc1000',newLearnableLayer);
newClassLayer = classificationLayer('Name','new_classoutput');
lgraph = replaceLayer(lgraph,'ClassificationLayer_predictions',newClassLayer);

Train Network

The network requires input images of size 224-by-224-by-3, but the images in the image datastores have different sizes. Use an augmented image datastore to automatically resize the training images. Specify additional augmentation operations to perform on the training images, such as randomly flipping the training images along the vertical axis and randomly translating them up to 30 pixels horizontally and vertically. Data augmentation helps prevent the network from overfitting and memorizing the exact details of the training images.

pixelRange = [-30 30];
imageAugmenter = imageDataAugmenter( ...
'RandXReflection',true, ...
'RandXTranslation',pixelRange, ...
'RandYTranslation',pixelRange);

To automatically resize the validation images without performing further data augmentation, use an augmented image datastore without specifying any additional preprocessing operations.

augimdsTrain = augmentedImageDatastore(inputSize(1:2),imdsTrain, ...
'DataAugmentation',imageAugmenter);
augimdsValidation = augmentedImageDatastore(inputSize(1:2),imdsValidation);

Specify the training options. For transfer learning, keep the features from the early layers of the pretrained network (the transferred layer weights). To slow down learning in the transferred layers, set the initial learning rate to a small value. Specify the mini-batch size and validation data. The software validates the network every ValidationFrequency iterations during training.

options = trainingOptions('sgdm', ...
'MiniBatchSize',10, ...
'MaxEpochs',6, ...
'InitialLearnRate',1e-4, ...
'Shuffle','every-epoch', ...
'ValidationData',augimdsValidation, ...
'ValidationFrequency',3, ...
'Verbose',false, ...
'Plots','training-progress');

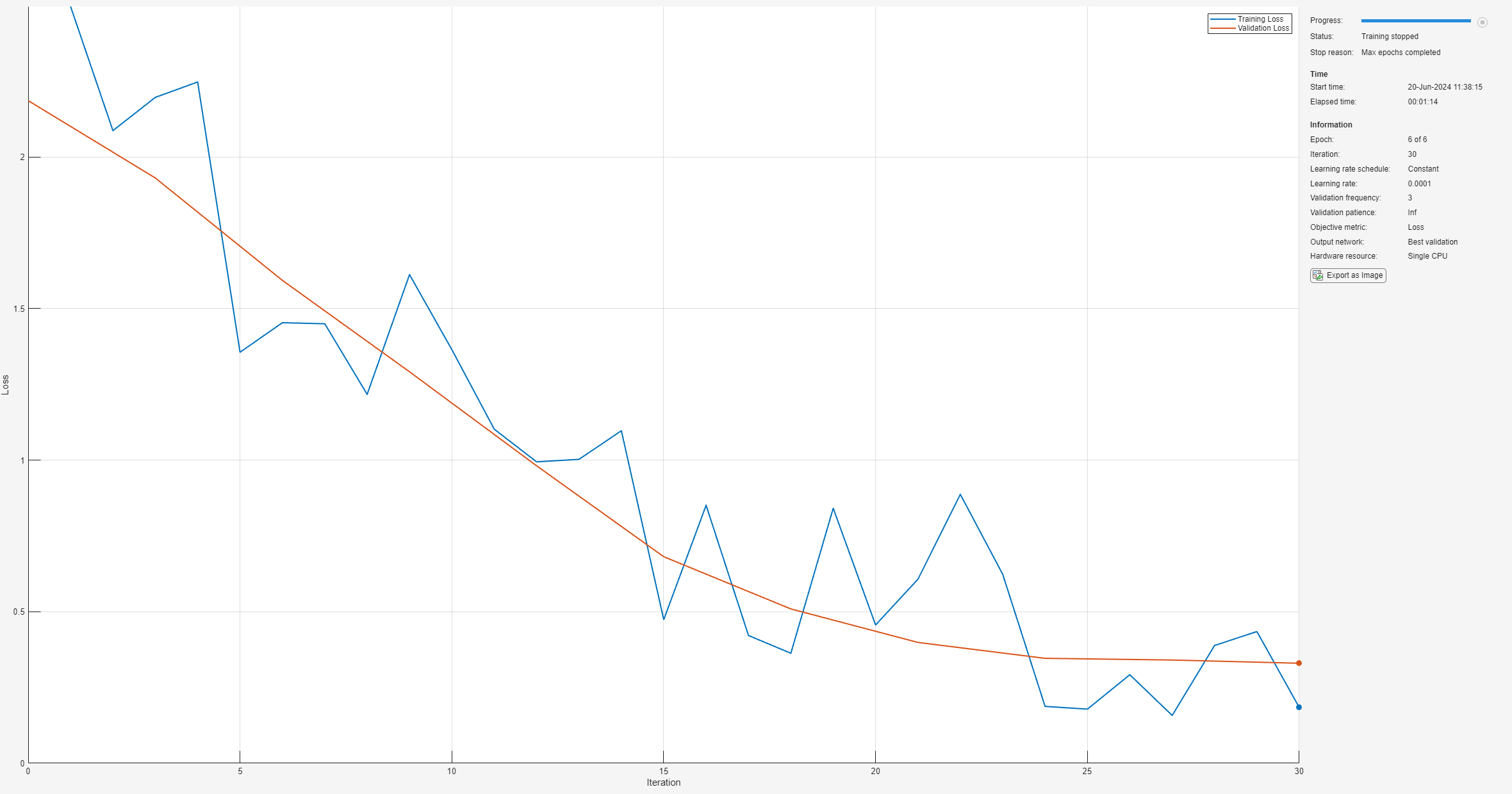

Train the network that consists of the transferred and new layers. By default, trainNetwork uses a GPU if one is available (requires Parallel Computing Toolbox™ and a supported GPU device. For more information, see GPU Support by Release (Parallel Computing Toolbox)). Otherwise, the network uses a CPU (requires MATLAB Coder Interface for Deep learning Libraries™). You can also specify the execution environment by using the 'ExecutionEnvironment' name-value argument of trainingOptions.

netTransfer = trainNetwork(augimdsTrain,lgraph,options);

Create Target Object

Use the dlhdl.Target class to create a target object with a custom name for your target device and an interface to connect your target device to the host computer. Interface options are JTAG and Ethernet. To use JTAG,Install Xilinx™ Vivado™ Design Suite 2019.2. To set the Xilinx Vivado toolpath, enter:

% hdlsetuptoolpath('ToolName', 'Xilinx Vivado', 'ToolPath', 'C:\Xilinx\Vivado\2019.2\bin\vivado.bat');
hTarget = dlhdl.Target('Xilinx','Interface','Ethernet');

Create WorkFlow Object

Use the dlhdl.Workflow class to create an object. When you create the object, specify the network and the bitstream name. Specify the saved pretrained alexnet neural network as the network. Make sure that the bitstream name matches the data type and the FPGA board that you are targeting. In this example, the target FPGA board is the Xilinx ZCU102 SoC board. The bitstream uses a single data type.

hW = dlhdl.Workflow('Network', netTransfer, 'Bitstream', 'zcu102_single','Target',hTarget);

Compile the netTransfer DAG network

To compile the netTransfer DAG network, run the compile method of the dlhdl.Workflow object. You can optionally specify the maximum number of input frames.

dn = hW.compile('InputFrameNumberLimit',15)
### Compiling network for Deep Learning FPGA prototyping ...
### Targeting FPGA bitstream zcu102_single ...
### The network includes the following layers:

     1   'data'                  Image Input              224×224×3 images with 'zscore' normalization                          (SW Layer)
     2   'conv1'                 Convolution              64 7×7×3 convolutions with stride [2  2] and padding [3  3  3  3]     (HW Layer)
     3   'bn_conv1'              Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
     4   'conv1_relu'            ReLU                     ReLU                                                                  (HW Layer)
     5   'pool1'                 Max Pooling              3×3 max pooling with stride [2  2] and padding [1  1  1  1]           (HW Layer)
     6   'res2a_branch2a'        Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
     7   'bn2a_branch2a'         Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
     8   'res2a_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
     9   'res2a_branch2b'        Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
    10   'bn2a_branch2b'         Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
    11   'res2a'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    12   'res2a_relu'            ReLU                     ReLU                                                                  (HW Layer)
    13   'res2b_branch2a'        Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
    14   'bn2b_branch2a'         Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
    15   'res2b_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
    16   'res2b_branch2b'        Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
    17   'bn2b_branch2b'         Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
    18   'res2b'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    19   'res2b_relu'            ReLU                     ReLU                                                                  (HW Layer)
    20   'res3a_branch2a'        Convolution              128 3×3×64 convolutions with stride [2  2] and padding [1  1  1  1]   (HW Layer)
    21   'bn3a_branch2a'         Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
    22   'res3a_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
    23   'res3a_branch2b'        Convolution              128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    24   'bn3a_branch2b'         Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
    25   'res3a'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    26   'res3a_relu'            ReLU                     ReLU                                                                  (HW Layer)
    27   'res3a_branch1'         Convolution              128 1×1×64 convolutions with stride [2  2] and padding [0  0  0  0]   (HW Layer)
    28   'bn3a_branch1'          Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
    29   'res3b_branch2a'        Convolution              128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    30   'bn3b_branch2a'         Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
    31   'res3b_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
    32   'res3b_branch2b'        Convolution              128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    33   'bn3b_branch2b'         Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
    34   'res3b'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    35   'res3b_relu'            ReLU                     ReLU                                                                  (HW Layer)
    36   'res4a_branch2a'        Convolution              256 3×3×128 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
    37   'bn4a_branch2a'         Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
    38   'res4a_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
    39   'res4a_branch2b'        Convolution              256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    40   'bn4a_branch2b'         Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
    41   'res4a'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    42   'res4a_relu'            ReLU                     ReLU                                                                  (HW Layer)
    43   'res4a_branch1'         Convolution              256 1×1×128 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
    44   'bn4a_branch1'          Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
    45   'res4b_branch2a'        Convolution              256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    46   'bn4b_branch2a'         Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
    47   'res4b_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
    48   'res4b_branch2b'        Convolution              256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    49   'bn4b_branch2b'         Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
    50   'res4b'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    51   'res4b_relu'            ReLU                     ReLU                                                                  (HW Layer)
    52   'res5a_branch2a'        Convolution              512 3×3×256 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
    53   'bn5a_branch2a'         Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
    54   'res5a_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
    55   'res5a_branch2b'        Convolution              512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    56   'bn5a_branch2b'         Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
    57   'res5a'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    58   'res5a_relu'            ReLU                     ReLU                                                                  (HW Layer)
    59   'res5a_branch1'         Convolution              512 1×1×256 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
    60   'bn5a_branch1'          Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
    61   'res5b_branch2a'        Convolution              512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    62   'bn5b_branch2a'         Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
    63   'res5b_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
    64   'res5b_branch2b'        Convolution              512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    65   'bn5b_branch2b'         Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
    66   'res5b'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    67   'res5b_relu'            ReLU                     ReLU                                                                  (HW Layer)
    68   'pool5'                 Global Average Pooling   Global average pooling                                                (HW Layer)
    69   'new_fc'                Fully Connected          5 fully connected layer                                               (HW Layer)
    70   'prob'                  Softmax                  softmax                                                               (SW Layer)
    71   'new_classoutput'       Classification Output    crossentropyex with 'MathWorks Cap' and 4 other classes               (SW Layer)

### Optimizing series network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
5 Memory Regions created.

Skipping: data
Compiling leg: conv1>>pool1 ...
Compiling leg: conv1>>pool1 ... complete.
Compiling leg: res2a_branch2a>>res2a_branch2b ...
Compiling leg: res2a_branch2a>>res2a_branch2b ... complete.
Compiling leg: res2b_branch2a>>res2b_branch2b ...
Compiling leg: res2b_branch2a>>res2b_branch2b ... complete.
Compiling leg: res3a_branch1 ...
Compiling leg: res3a_branch1 ... complete.
Compiling leg: res3a_branch2a>>res3a_branch2b ...
Compiling leg: res3a_branch2a>>res3a_branch2b ... complete.
Compiling leg: res3b_branch2a>>res3b_branch2b ...
Compiling leg: res3b_branch2a>>res3b_branch2b ... complete.
Compiling leg: res4a_branch1 ...
Compiling leg: res4a_branch1 ... complete.
Compiling leg: res4a_branch2a>>res4a_branch2b ...
Compiling leg: res4a_branch2a>>res4a_branch2b ... complete.
Compiling leg: res4b_branch2a>>res4b_branch2b ...
Compiling leg: res4b_branch2a>>res4b_branch2b ... complete.
Compiling leg: res5a_branch1 ...
Compiling leg: res5a_branch1 ... complete.
Compiling leg: res5a_branch2a>>res5a_branch2b ...
Compiling leg: res5a_branch2a>>res5a_branch2b ... complete.
Compiling leg: res5b_branch2a>>res5b_branch2b ...
Compiling leg: res5b_branch2a>>res5b_branch2b ... complete.
Compiling leg: pool5 ...
Compiling leg: pool5 ... complete.
Compiling leg: new_fc ...
Compiling leg: new_fc ... complete.
Skipping: prob
Skipping: new_classoutput
Creating Schedule...
...........................
Creating Schedule...complete.
Creating Status Table...
..........................
Creating Status Table...complete.
Emitting Schedule...
..........................
Emitting Schedule...complete.
Emitting Status Table...
............................
Emitting Status Table...complete.

### Allocating external memory buffers:

          offset_name          offset_address     allocated_space
    _______________________    ______________    _________________

    "InputDataOffset"           "0x00000000"     "12.0 MB"
    "OutputResultOffset"        "0x00c00000"     "4.0 MB"
    "SchedulerDataOffset"       "0x01000000"     "4.0 MB"
    "SystemBufferOffset"        "0x01400000"     "28.0 MB"
    "InstructionDataOffset"     "0x03000000"     "4.0 MB"
    "ConvWeightDataOffset"      "0x03400000"     "52.0 MB"
    "FCWeightDataOffset"        "0x06800000"     "4.0 MB"
    "EndOffset"                 "0x06c00000"     "Total: 108.0 MB"

### Network compilation complete.
dn = struct with fields:
             weights: [1×1 struct]
        instructions: [1×1 struct]
           registers: [1×1 struct]
    syncInstructions: [1×1 struct]

Program Bitstream onto FPGA and Download Network Weights

To deploy the network on the Xilinx ZCU102 hardware, run the deploy function of the dlhdl.Workflow object. This function uses the output of the compile function to program the FPGA board by using the programming file. It also downloads the network weights and biases. The deploy function starts programming the FPGA device, displays progress messages, and the time it takes to deploy the network.

hW.deploy
### FPGA bitstream programming has been skipped as the same bitstream is already loaded on the target FPGA.
### Deep learning network programming has been skipped as the same network is already loaded on the target FPGA.

Load Image for Prediction

Load the example image.

imgFile = fullfile(pwd,'MerchData','MathWorks Cube','Mathworks cube_0.jpg');
inputImg = imresize(imread(imgFile),[224 224]);
imshow(inputImg)

Run Prediction for One Image

Execute the predict method on the dlhdl.Workflow object and then show the label in the MATLAB command window.

[prediction, speed] = hW.predict(single(inputImg),'Profile','on');
### Finished writing input activations.
### Running single input activations.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                   23470681                  0.10668                       1           23470681              9.4
    conv1                  2224133                  0.01011
    pool1                   573009                  0.00260
    res2a_branch2a          972706                  0.00442
    res2a_branch2b          972715                  0.00442
    res2a                   210584                  0.00096
    res2b_branch2a          972670                  0.00442
    res2b_branch2b          973171                  0.00442
    res2b                   210235                  0.00096
    res3a_branch1           538433                  0.00245
    res3a_branch2a          746681                  0.00339
    res3a_branch2b          904757                  0.00411
    res3a                   104923                  0.00048
    res3b_branch2a          904442                  0.00411
    res3b_branch2b          904234                  0.00411
    res3b                   105019                  0.00048
    res4a_branch1           485689                  0.00221
    res4a_branch2a          486053                  0.00221
    res4a_branch2b          880357                  0.00400
    res4a                    52814                  0.00024
    res4b_branch2a          880122                  0.00400
    res4b_branch2b          880268                  0.00400
    res4b                    52492                  0.00024
    res5a_branch1          1056215                  0.00480
    res5a_branch2a         1056269                  0.00480
    res5a_branch2b         2057399                  0.00935
    res5a                    26272                  0.00012
    res5b_branch2a         2057349                  0.00935
    res5b_branch2b         2057639                  0.00935
    res5b                    26409                  0.00012
    pool5                    71402                  0.00032
    new_fc                   24650                  0.00011
 * The clock frequency of the DL processor is: 220MHz
[val, idx] = max(prediction);
netTransfer.Layers(end).ClassNames{idx}
ans =
'MathWorks Cube'
