# make2DOF

Convert 1-DOF PID controller to 2-DOF controller

## Description

## Examples

### Convert 1-DOF PID Controller to 2-DOF

Design a 1-DOF PID controller for a plant.

```
G = tf(1,[1 0.5 0.1]);
C1 = pidtune(G,'pidf',1.5)
```

C1 = 1 s Kp + Ki * --- + Kd * -------- s Tf*s+1 with Kp = 1.12, Ki = 0.23, Kd = 1.3, Tf = 0.122 Continuous-time PIDF controller in parallel form.

Convert the controller to two degrees of freedom.

C2 = make2DOF(C1)

C2 = 1 s u = Kp (b*r-y) + Ki --- (r-y) + Kd -------- (c*r-y) s Tf*s+1 with Kp = 1.12, Ki = 0.23, Kd = 1.3, Tf = 0.122, b = 1, c = 1 Continuous-time 2-DOF PIDF controller in parallel form.

The new controller has the same PID gains and filter constant. It also contains new terms involving the setpoint weights `b`

and `c`

. By default, `b`

= `c`

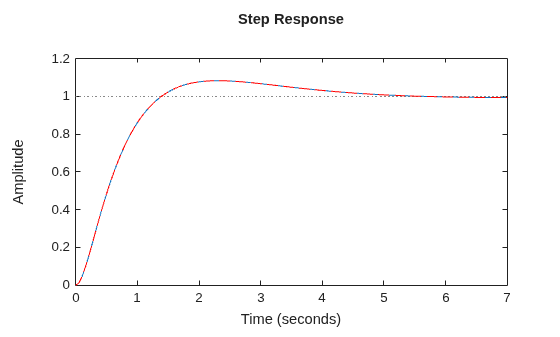

= 1. Therefore, in a closed loop with the plant `G`

, the 2-DOF controller `C2`

yields the same response as `C1`

.

```
T1 = feedback(G*C1,1);
CM = tf(C2);
T2 = CM(1)*feedback(G,-CM(2));
stepplot(T1,T2,'r--')
```

Convert `C1`

to a 2-DOF controller with different `b`

and `c`

values.

C2_2 = make2DOF(C1,0.5,0.75)

C2_2 = 1 s u = Kp (b*r-y) + Ki --- (r-y) + Kd -------- (c*r-y) s Tf*s+1 with Kp = 1.12, Ki = 0.23, Kd = 1.3, Tf = 0.122, b = 0.5, c = 0.75 Continuous-time 2-DOF PIDF controller in parallel form.

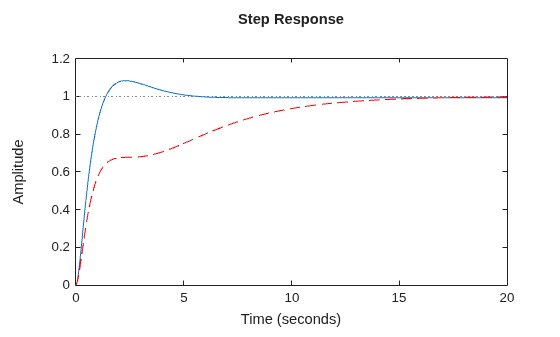

The PID gains and filter constant are still unchanged, but the setpoint weights now change the closed-loop response.

```
CM_2 = tf(C2_2);
T2_2 = CM_2(1)*feedback(G,-CM_2(2));
stepplot(T1,T2_2,'r--')
```

## Input Arguments

`C1`

— 1-DOF PID controller

`pid`

object | `pidstd`

object

1-DOF PID controller, specified as a `pid`

object or a
`pidstd`

object.

`b`

— Setpoint weight on proportional term

1 (default) | real nonnegative scalar

Setpoint weight on proportional term, specified as a real, nonnegative,
finite value. If you do not specify `b`

, then
`C2`

has `b`

= 1.

`c`

— Setpoint weight on derivative term

1 (default) | real nonnegative scalar

Setpoint weight on derivative term, specified as a real, nonnegative,
finite value. If you do not specify `c`

, then
`C2`

has `c`

= 1.

## Output Arguments

`C2`

— 2-DOF PID controller

`pid2`

object | `pidstd2`

object

2-DOF PID controller, returned as a `pid2`

object or
`pidstd2`

object. `C2`

is in
parallel form if `C1`

is in parallel form, and standard
form if `C1`

is in standard form.

For example, suppose `C1`

is a continuous-time,
parallel-form `pid`

controller of the form:

$${C}_{1}={K}_{p}+\frac{{K}_{i}}{s}+\frac{{K}_{d}s}{{T}_{f}s+1}.$$

Then `C2`

is a parallel-form 2-DOF
`pid2`

controller, which has two inputs and one
output. The relationship between the inputs, *r* and
*y*, and the output *u* of
`C2`

is given by:

$$u={K}_{p}\left(br-y\right)+\frac{{K}_{i}}{s}\left(r-y\right)+\frac{{K}_{d}s}{{T}_{f}s+1}\left(cr-y\right)$$

The PID gains *K _{p}*,

*K*, and

_{i}*K*, and the filter time constant

_{d}*T*are unchanged. The setpoint weights

_{f}*b*and

*c*are specified by the input arguments

`b`

and `c`

, or
1 by default. For more information about 2-DOF PID controllers, see Two-Degree-of-Freedom PID Controllers.The conversion also preserves the values of the properties
`Ts`

, `TimeUnit`

, ```
Sampling
Grid
```

, `IFormula`

, and
`DFormula`

.

## Version History

**Introduced in R2015b**
