## Group Delay

The *group delay* of a filter measures of the average time delay of
the filter as a function of frequency. For the complex filter frequency response *H*(*e ^{jω}*), the group
delay is defined as the negative first derivative of the phase response for the filter,

$$-\frac{d}{d\omega}\theta (\omega )$$

where θ represents the phase of the filter and ω represents the frequency in radians per
second. For a linear-phase finite impulse response (FIR) filter, the group delay is one-half
the order (or span) of the filter. The impulse response length of the filter is
(*L*×*N* + 1), where *N* is the filter
span in symbols and *L* is the number of samples per symbol. This sets the
delay so that the impulse response before time zero contains a negligible amount of energy
and measures the time between the initial and peak response of the filter.

### Correlation Between Impulse Peak and Group Delay

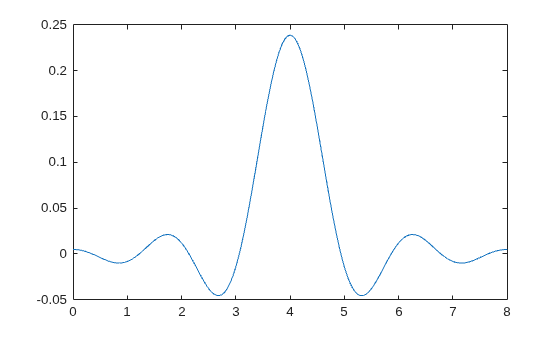

The impulse response of the square-root raised cosine (RRC) filter shown in this figure uses an 8 symbol filter span. The peak of the impulse response occurs at the fourth symbol and corresponds with the group delay.

rf = 0.25; % Rolloff factor span = 8; % Span of filter sps = 20; % Samples per symbol h1 = rcosdesign(rf,span,sps,"sqrt"); x = [0:length(h1)-1]/sps; plot(x,h1)

Compute the group delay of the filter by using the `grpdelay`

function. Convert the result to symbols to verify it matches the location of the filter peak.

gd = grpdelay(h1); groupDelayInSymbols = gd(1)/sps

groupDelayInSymbols = 4

### Implications of Delay for Simulations

The group delay that results from filtering a signal has implications for other parts of
your simulation. For example, suppose you compare the symbol streams marked *Symbols
In* and *Symbols Out* in this figure by plotting or computing an
error rate. Set the delay equal to the total group delay. If your model uses a pair of
square root raised cosine filters, sum the combined group delay. To find the total delay
between the input and output symbols:

When working in MATLAB

^{®}, use the`finddelay`

function.When working in Simulink

^{®}use the Find Delay block.

Use one of these methods to make sure you are comparing symbols that truly correspond to each other.

As shown in this figure, you can insert a delay in a path parallel to system component path to align the

*Symbols In*signal with the*Symbols Out*signal.When working in MATLAB, use the

`alignsignals`

function.When working in Simulink use the Delay block.

Alternately, when using the

`comm.ErrorRate`

System object™ in MATLAB and the Error Rate Calculation block in Simulink, you can adjust the alignment of the input transmitted*Symbols In*and received*Symbols Out*with receive delay and computation delay properties and parameters, respectively.

For more information about how to manage delays in a model, see Delay and Latency.
