Generate channel coefficients using WINNER II channel model

**Download Required:** To
use this function, first download the WINNER II Channel Model
for Communications Toolbox™ from the Add-On Explorer. For more information on downloading add-ons, see Get Add-Ons (MATLAB) and Manage Your Add-Ons (MATLAB).

`chanCoef = winner2.wim(cfgWim,cfgLayout)`

```
[chanCoef,pathDelays]
= winner2.wim(cfgWim,cfgLayout)
```

```
[chanCoef,pathDelays,finalCond]
= winner2.wim(cfgWim,cfgLayout)
```

```
[chanCoef,pathDelays,finalCond]
= winner2.wim(cfgWim,cfgLayout,initCond)
```

`[`

also
returns the path delays for all links.`chanCoef`

,`pathDelays`

]
= winner2.wim(`cfgWim`

,`cfgLayout`

)

`[`

also
returns the final condition of the system after generating the channel
coefficients.`chanCoef`

,`pathDelays`

,`finalCond`

]
= winner2.wim(`cfgWim`

,`cfgLayout`

)

`[`

generates
the channel coefficients by using the initial system conditions rather
than of performing random initialization. `chanCoef`

,`pathDelays`

,`finalCond`

]
= winner2.wim(`cfgWim`

,`cfgLayout`

,`initCond`

)`initCond`

is
of the same form as `finalCond`

and is typically
the `finalCond`

output from the prior call of this

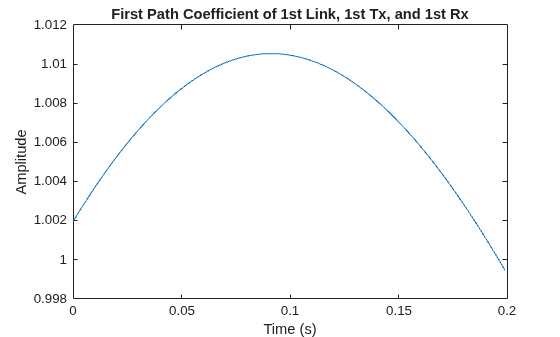

function. Use this syntax to repeatedly generate channel coefficients
for continuous time samples.

[1] Kyosti,
Pekka, Juha Meinila, et al. *WINNER II Channel Models*.
D1.1.2 V1.2. IST-4-027756 WINNER II, September 2007.
