Fog propagation model
Model the behavior of electromagnetic radiation from a point of transmission as it
travels through fog or clouds  by using a
object. Propagation models for fog are valid from 10 to 1000 GHz, assume line-of-sight (LOS)
conditions, and disregard terrain, the curvature of the Earth, and other
Fog object by using the
Temperature— Air temperature
15(default) | scalar
Air temperature, specified as a scalar in degrees Celsius (C).
WaterDensity— Liquid water density
0.5(default) | scalar
Liquid water density, specified as a scalar in grams per cubic meter (g/m3).

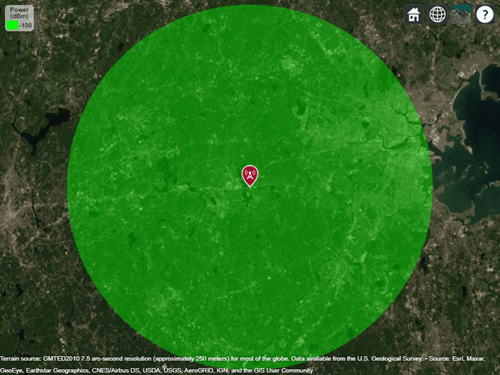

Display the coverage area for a transmitter in thick fog.
Create a propagation model for fog. Specify the water density as 0.5 grams per cubic meter.
pm = propagationModel("fog","WaterDensity",0.5);
Create a transmitter site. Display the coverage area for the transmitter. Propagation models for fog require transmitter frequencies between 10 and 1000 GHz.
tx = txsite("Name","Apple Hill","TransmitterFrequency",1e10, ... "Latitude",42.3001,"Longitude",-71.3604); coverage(tx,pm)
 International Telecommunications Union Radiocommunication Sector. Attenuation due to clouds and fog. Recommendation P.840-6. ITU-R, approved September 30, 2013. https://www.itu.int/rec/R-REC-P.840-6-201309-S/en.
 Seybold, John S. Introduction to RF Propagation. Hoboken, N.J: Wiley, 2005.
