Energy Storage

Batteries, starters, and alternators

Use the energy storage blocks to assemble automotive electrical systems for battery sizing and performance studies.


expand all

Datasheet BatteryLithium-ion, lithium-polymer, or lead-acid battery
Estimation Equivalent Circuit BatteryResistor-capacitor (RC) circuit battery that creates lookup tables
Equivalent Circuit BatteryResistor-capacitor (RC) circuit battery
Bidirectional DC-DCDC-to-DC converter that supports bidirectional boost and buck
Reduced Lundell AlternatorReduced Lundell (claw-pole) alternator with an external voltage regulator
StarterStarter as a DC motor
Power Accounting Bus CreatorCreate power information bus


Generate Parameter Data for Datasheet Battery Block

Import lithium-ion battery sheet data and generate parameters for the Datasheet Battery block.

Generate Parameter Data for Equivalent Circuit Battery Block

Generate parameters for the Equivalent Circuit Battery block.

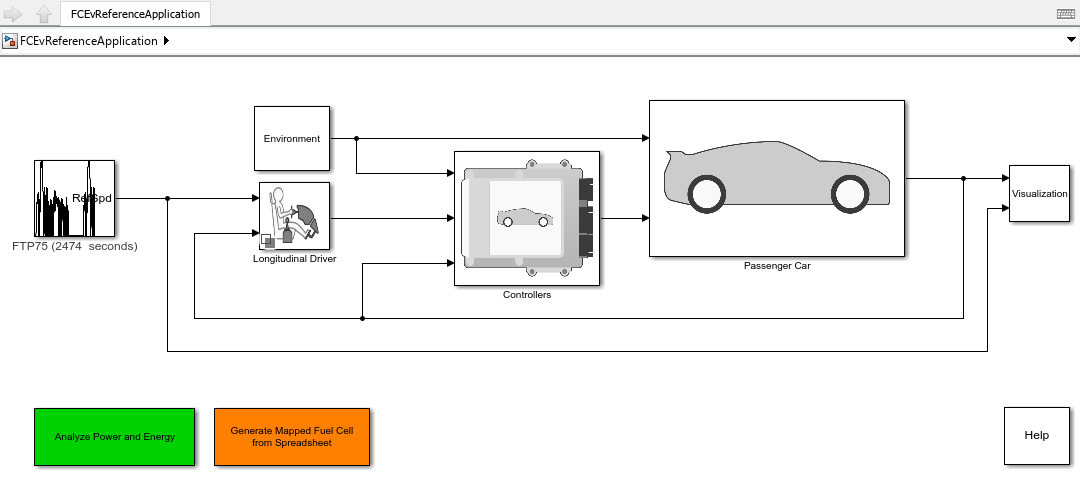

Featured Examples
