Speaker Recognition Using x-vectors

Speaker recognition answers the question "Who is speaking?". Speaker recognition is usually divided into two tasks: speaker identification and speaker verification. In speaker identification, a speaker is recognized by comparing their speech to a closed set of templates. In speaker verification, a speaker is recognized by comparing the likelihood that the speech belongs to a particular speaker against a predetermined threshold. Traditional machine learning methods perform well at these tasks in ideal conditions. For examples of speaker identification using traditional machine learning methods, see Speaker Identification Using Pitch and MFCC and Speaker Verification Using i-vectors. Audio Toolbox™ provides ivectorSystem which encapsulates the ability to train an i-vector system, enroll speakers or other audio labels, evaluate the system for a decision threshold, and identify or verify speakers or other audio labels.

In adverse conditions, the deep learning approach of x-vectors has been shown to achieve state-of-the-art results for many scenarios and applications [1]. The x-vector system is an evolution of i-vectors originally developed for the task of speaker verification.

In this example, you develop an x-vector system. First, you train a time-delay neural network (TDNN) to perform speaker identification. Then you train the traditional backends for an x-vector-based speaker verification system: an LDA projection matrix and a PLDA model. You then perform speaker verification using the TDNN and the backend dimensionality reduction and scoring. The x-vector system backend, or classifier, is the same as developed for i-vector systems. For details on the backend, see Speaker Verification Using i-vectors and ivectorSystem.

In Speaker Diarization Using x-vectors, you use the x-vector system trained in this example to perform speaker diarization. Speaker diarization answers the question, "Who spoke when?".

Download and Prepare Data

This example uses a subset of the LibriSpeech Dataset [2]. The LibriSpeech Dataset is a large corpus of read English speech sampled at 16 kHz. The data is derived from audiobooks read from the LibriVox project. Download the 100-hour subset of the LibriSpeech training data, the clean development set, and the clean test set.

dataFolder = tempdir;

datasetTrain = fullfile(dataFolder,"LibriSpeech","train-clean-100");
if ~datasetExists(datasetTrain)
    filename = "train-clean-100.tar.gz";
	url = "http://www.openSLR.org/resources/12/" + filename;
    gunzip(url,dataFolder);
    unzippedFile = fullfile(dataFolder,filename);
    untar(unzippedFile{1}(1:end-3),dataFolder);
end

datasetDev = fullfile(dataFolder,"LibriSpeech","dev-clean");
if ~datasetExists(datasetDev)
    filename = "dev-clean.tar.gz";
	url = "http://www.openSLR.org/resources/12/" + filename;
    gunzip(url,dataFolder);
    unzippedFile = fullfile(dataFolder,filename);
    untar(unzippedFile{1}(1:end-3),dataFolder);
end

datasetTest = fullfile(dataFolder,"LibriSpeech","test-clean");
if ~datasetExists(datasetTest)
    filename = "test-clean.tar.gz";
	url = "http://www.openSLR.org/resources/12/" + filename;
    gunzip(url,dataFolder);
    unzippedFile = fullfile(dataFolder,filename);
    untar(unzippedFile{1}(1:end-3),dataFolder);
end

Create audioDatastore objects that point to the data. The speaker labels are encoded in the file names. Split the datastore into train, validation, and test sets. You will use these sets to train, validate, and test a TDNN.

adsTrain = audioDatastore(datasetTrain,IncludeSubfolders=true);
trainLabels = filenames2labels(adsTrain,ExtractBefore="-");

adsDev = audioDatastore(datasetDev,IncludeSubfolders=true);
devLabels = filenames2labels(adsDev,ExtractBefore="-");

adsEvaluate = audioDatastore(datasetTest,IncludeSubfolders=true);
evalLabels = filenames2labels(adsEvaluate,ExtractBefore="-");

Separate the datastore objects into five sets:

  • adsTrain - Contains training set for the TDNN and backend classifier.

  • adsValidation - Contains validation set to evaluate TDNN training progress.

  • adsTest - Contains test set to evaluate the TDNN performance for speaker identification.

  • adsEnroll - Contains enrollment set to evaluate the detection error tradeoff of the x-vector system for speaker verification.

  • adsDET - Contains evaluation set used to determine the detection error tradeoff of the x-vector system for speaker verification.

indices = splitlabels(trainLabels,[0.8,0.1,0.1],"randomized");
adsValidation = subset(adsTrain,indices{2});
labelsValidation = trainLabels(indices{2});
adsTest = subset(adsTrain,indices{3});
labelsTest = trainLabels(indices{3});
adsTrain = subset(adsTrain,indices{1});
labelsTrain = trainLabels(indices{1});


indices = splitlabels(evalLabels,3,"randomized");
adsEnroll = subset(adsEvaluate,indices{1});
labelsEnroll = filenames2labels(adsEnroll,ExtractBefore="-");
adsLeftover = subset(adsEvaluate,indices{2});

adsDET = audioDatastore([adsLeftover.Files;adsDev.Files]);
labelsDET = filenames2labels(adsDET,ExtractBefore="-");

You can reduce the training and detection error tradeoff datasets used in this example to speed up the runtime at the cost of performance. In general, reducing the data set is a good practice for development and debugging.

speedupExample = false;
if speedupExample
    idxs = splitlabels(labelsTrain,5);
    adsTrain = subset(adsTrain,idxs{1});
    labelsTrain = labelsTrain(idxs{1});

    idxs = splitlabels(labelsValidation,2);
    adsValidation = subset(adsValidation,idxs{1});
    labelsValidation = labelsValidation(idxs{1});

    idxs = splitlabels(labelsDET,5);
    adsDET = subset(adsDET,idxs{1});
    labelsDET = labelsDET(idxs{1});
end

Input Pipeline

Create an audioFeatureExtractor object to extract 30 MFCCs from 30 ms Hann windows with a 10 ms hop. The sample rate of the data set is 16 kHz.

fs = 16e3;
windowDuration = 0.03;
hopDuration = 0.01;
windowSamples = round(windowDuration*fs);
hopSamples = round(hopDuration*fs);
overlapSamples = windowSamples - hopSamples;
numCoeffs = 30;
afe = audioFeatureExtractor( ...
    SampleRate=fs, ...
    Window=hann(windowSamples,"periodic"), ...
    OverlapLength=overlapSamples, ...
    mfcc=true);
setExtractorParameters(afe,"mfcc",NumCoeffs=numCoeffs)

Create a transform datastore that applies preprocessing to the audio and outputs features. The supporting function, xVectorPreprocess, performs speech detection and extracts features from regions of speech. When the parameter Segment is set to false, the detected regions of speech are concatenated together.

adsTrainTransform = transform(adsTrain,@(x)xVectorPreprocess(x,afe,Segment=false,MinimumDuration=0.5));

Extract all features from the training set.

features = readall(adsTrainTransform, ...
    UseParallel=canUseParallelPool);

Concatenate the features and then save the global mean and standard deviation in a struct. You will use these factors to normalize features.

features = cat(1,features{:});
[S,M] = std(features,0,1);
factors = struct(Mean=M,STD=S);
clear features

Combine the predictor datastores with the target datastores.

cdsTrain = combine(adsTrain,arrayDatastore(labelsTrain));
cdsValidation = combine(adsValidation,arrayDatastore(labelsValidation));
cdsTest = combine(adsTest,arrayDatastore(labelsTest));
cdsEnroll = combine(adsEnroll,arrayDatastore(labelsEnroll));
cdsDET = combine(adsDET,arrayDatastore(labelsDET));

Create a new transform datastore for the training set, this time specifying the normalization factors and Segment as true. Now, features are normalized by the global mean and standard deviation, and then the file-level mean. The individual speech regions detected are not concatenated. Extract all the features and corresponding targets.

adsTrainTransform = transform(cdsTrain,@(x)xVectorPreprocess(x,afe, ...
    Segment=true,Factors=factors,MinimumDuration=0.5));
xtTrain = readall(adsTrainTransform,UseParallel=canUseParallelPool);

Separate the features and targets.

xTrain = cat(1,xtTrain{:,1});
tTrain = cat(1,xtTrain{:,2});

Apply the same transformation to the validation, test, enrollment, and DET sets.

adsValidationTransform = transform(cdsValidation,@(x)xVectorPreprocess(x,afe, ...
    Segment=true,Factors=factors,MinimumDuration=0.5));
xtValidation = readall(adsValidationTransform,UseParallel=canUseParallelPool);
xValidation = cat(1,xtValidation{:,1});
tValidation = cat(1,xtValidation{:,2});

adsTestTransform = transform(cdsTest,@(x)xVectorPreprocess(x,afe, ...
    Segment=true,Factors=factors,MinimumDuration=0.5));
xtTest = readall(adsTestTransform,UseParallel=canUseParallelPool);
xTest = cat(1,xtTest{:,1});
tTest = cat(1,xtTest{:,2});

adsEnrollTransform = transform(cdsEnroll,@(x)xVectorPreprocess(x,afe, ...
    Segment=true,Factors=factors,MinimumDuration=0.5));
xtEnroll = readall(adsEnrollTransform,UseParallel=canUseParallelPool);
xEnroll = cat(1,xtEnroll{:,1});
tEnroll = cat(1,xtEnroll{:,2});

adsDETTransform = transform(cdsDET,@(x)xVectorPreprocess(x,afe, ...
    Segment=true,Factors=factors,MinimumDuration=0.5));
xtDET = readall(adsDETTransform,UseParallel=canUseParallelPool);
xDET = cat(1,xtDET{:,1});
tDET = cat(1,xtDET{:,2});

x-vector Network

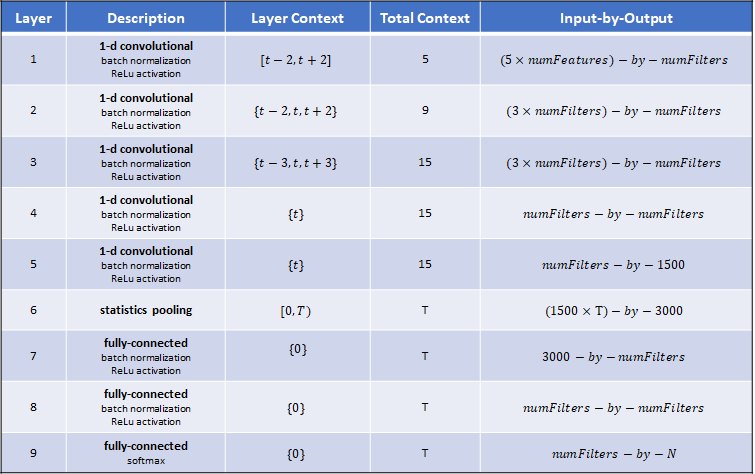

The table summarizes the architecture of the network described in [1] and implemented in this example. T is the total number of frames (feature vectors over time) in an audio signal. N is the number of classes (speakers) in the training set.

Define the network. You can change the model size by increasing or decreasing the numFilters parameter.

numFilters = 512;
dropProb = 0.2;

classes = unique(labelsTrain);
numClasses = numel(classes);

layers = [
    sequenceInputLayer(afe.FeatureVectorLength,MinLength=15,Name="input")

    convolution1dLayer(5,numFilters,DilationFactor=1,Name="conv_1")
    batchNormalizationLayer(Name="BN_1")
    dropoutLayer(dropProb,Name="drop_1")
    reluLayer(Name="act_1")

    convolution1dLayer(3,numFilters,DilationFactor=2,Name="conv_2")
    batchNormalizationLayer(Name="BN_2")
    dropoutLayer(dropProb,Name="drop_2")
    reluLayer(Name="act_2")

    convolution1dLayer(3,numFilters,DilationFactor=3,Name="conv_3")
    batchNormalizationLayer(Name="BN_3")
    dropoutLayer(dropProb,Name="drop_3")
    reluLayer(Name="act_3")

    convolution1dLayer(1,numFilters,DilationFactor=1,Name="conv_4")
    batchNormalizationLayer(Name="BN_4")
    dropoutLayer(dropProb,Name="drop_4")
    reluLayer(Name="act_4")

    convolution1dLayer(1,1500,DilationFactor=1,Name="conv_5")
    batchNormalizationLayer(Name="BN_5")
    dropoutLayer(dropProb,Name="drop_5")
    reluLayer(Name="act_5")

    statisticsPooling1dLayer(Name="statistics_pooling")

    fullyConnectedLayer(numFilters,Name="fc_1")
    batchNormalizationLayer(Name="BN_6")
    dropoutLayer(dropProb,Name="drop_6")
    reluLayer(Name="act_6")

    fullyConnectedLayer(numFilters,Name="fc_2")
    batchNormalizationLayer(Name="BN_7")
    dropoutLayer(dropProb,Name="drop_7")
    reluLayer(Name="act_7")

    fullyConnectedLayer(numClasses,Name="fc_3")
    softmaxLayer(Name="softmax")
    ];

The model requires statistical pooling which is implemented as a custom layer and placed in your current folder when you open this example. Display the contents of the custom layer.

type("statisticsPooling1dLayer.m")
classdef statisticsPooling1dLayer < nnet.layer.Layer & nnet.layer.Formattable
    % This class is only for use in this example. It may be changed or
    % removed in a future release.

    methods
        function this = statisticsPooling1dLayer(options)
            arguments
                options.Name = ''
            end
            this.Name = options.Name;
        end

        function X = predict(~, X)
            X = dlarray(stripdims([mean(X,3);std(X,0,3)]),"CB");
        end
        function X = forward(~, X)
            X = X + 0.0001*rand(size(X),"single");
            X = dlarray(stripdims([mean(X,3);std(X,0,3)]),"CB");
        end
    end

end

Training Options

To specify training options, use trainingOptions. Set the mini-batch size as appropriate for your hardware.

mbsize = 256;
options = trainingOptions("adam", ...
    OutputNetwork="best-validation", ...
    LearnRateSchedule="piecewise", ...
    LearnRateDropPeriod=2, ...
    MaxEpochs=5, ...
    Shuffle="every-epoch", ...
    MiniBatchSize=mbsize, ...
    Plots="training-progress", ...
    Metrics="accuracy", ...
    Verbose=false, ...
    SequenceLength="shortest", ...
    ValidationData={xValidation,tValidation}, ...
    ValidationFrequency=400, ...
    DispatchInBackground=canUseParallelPool);

Train Network

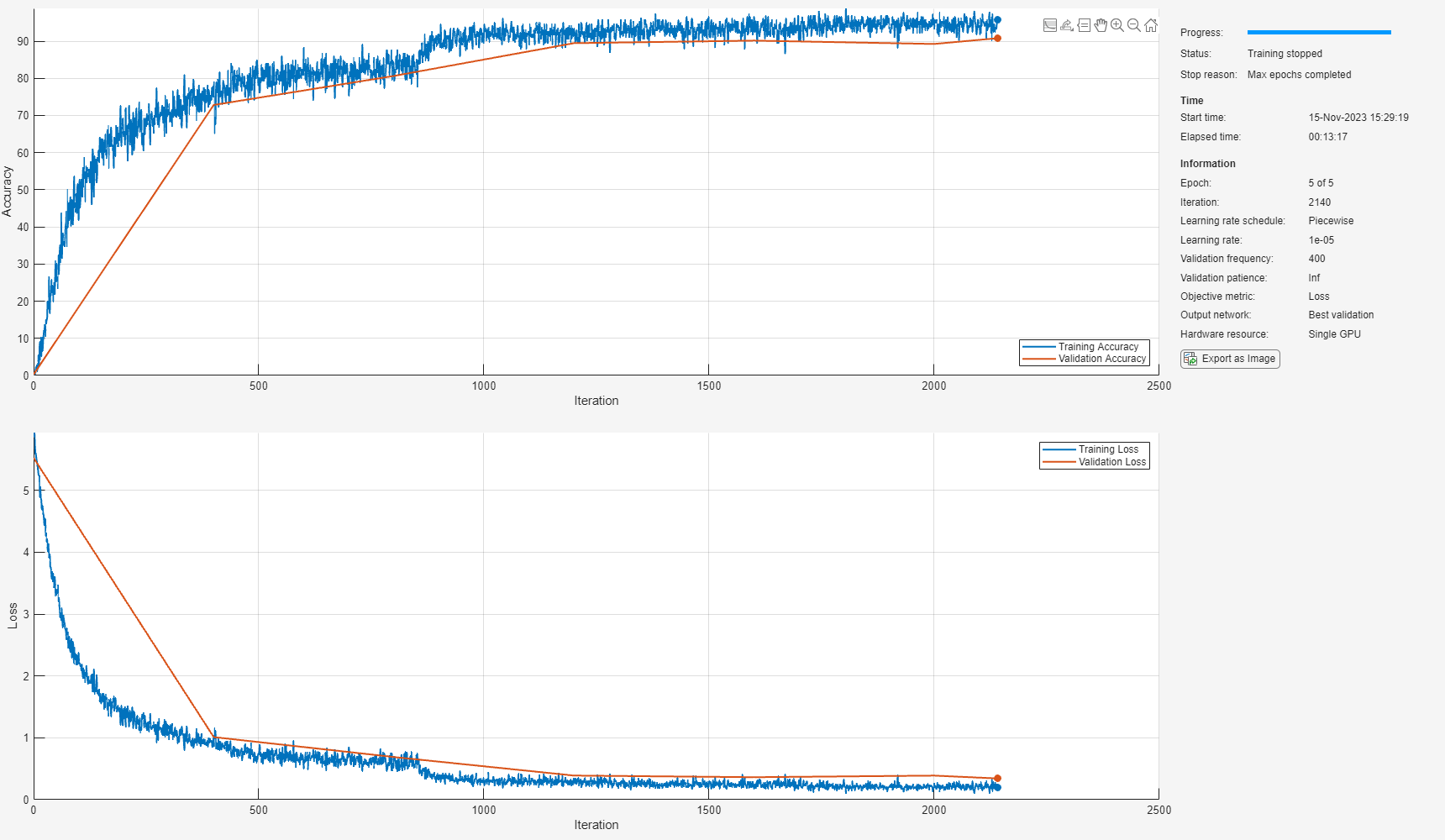

To train the network, use trainnet.

dlnet = trainnet(xTrain,tTrain,layers,"crossentropy",options);

Evaluate the TDNN speaker recognition accuracy using the held-out test set. Decode the predictions and then compute the prediction accuracy. To speed up this example, use a large mini-batch size. If you reduce the mini-batch size to 1, the accuracy is approximately 98% because you are no longer discarding relevant data to make consistent sequence lengths.

scores = minibatchpredict(dlnet,xTest, ...%xTest is in memory
    MiniBatchSize=mbsize, ...
    SequenceLength="shortest");

yTest = scores2label(scores,classes,2);

accuracy = 100*mean(tTest(:)==yTest(:))
accuracy = 91.0644

Train x-vector System Backend

In the x-vector system for speaker verification, the TDNN you just trained is used to output an embedding layer. The output from the embedding layer ("fc_1" in this example) are the "x-vectors" in an x-vector system.

The backend (or classifier) of an x-vector system is the same as the backend of an i-vector system. For details on the algorithms, see ivectorSystem and Speaker Verification Using i-vectors.

Extract x-vectors from the train set.

xvecsTrain = minibatchpredict(dlnet,xTrain, ...
    Outputs="fc_1", ...
    MiniBatchSize=mbsize, ...
    SequenceLength="shortest");

xvecsTrain = xvecsTrain';

Create a linear discriminant analysis (LDA) projection matrix to reduce the dimensionality of the x-vectors. LDA attempts to minimize the intra-class variance and maximize the variance between speakers.

numEigenvectors = 150;

projMat = helperTrainProjectionMatrix(xvecsTrain,tTrain,numEigenvectors);

Apply the LDA projection matrix to the x-vectors.

xvecsTrainP = projMat*xvecsTrain;

Train a G-PLDA model to perform scoring.

numIterations = 3;
numDimensions = 150;
plda = helperTrainPLDA(xvecsTrainP,tTrain,numIterations,numDimensions);

Evaluate x-vector System

Speaker verification systems verify that a speaker is who they purport to be. Before a speaker can be verified, they must be enrolled in the system. Enrollment in the system means that the system has a template x-vector representation of the speaker.

Enroll Speakers

Extract x-vectors from the held-out enrollment data set.

xvecsEnroll = minibatchpredict(dlnet,xEnroll, ...
    MiniBatchSize=1, ...
    Outputs="fc_1");

Apply the LDA projection matrix to the x-vectors.

xvecsEnrollP = projMat*xvecsEnroll';

Create template x-vectors for each speaker by averaging the x-vectors of individual speakers across enrollment files.

uniqueLabels = unique(tEnroll);
enrollmentTable = cell2table(cell(0,2),VariableNames=["xvector","NumSamples"]);
for ii = 1:numel(uniqueLabels)
    idx = uniqueLabels(ii)==tEnroll;
    wLocalMean = mean(xvecsEnrollP(:,idx),2);
    localTable = table({wLocalMean},(sum(idx)), ...
        VariableNames=["xvector","NumSamples"], ...
        RowNames=string(uniqueLabels(ii)));
    enrollmentTable = [enrollmentTable;localTable]; %#ok<AGROW>
end

Detection Error Tradeoff

Speaker verification systems require you to set a threshold that balances the probability of a false acceptance (FA) and the probability of a false rejection (FR), according to the requirements of your application. To determine the threshold that meets your FA/FR requirements, evaluate the detection error tradeoff of the system.

xvecsDET = minibatchpredict(dlnet,xDET, ...
    MiniBatchSize=1, ...
    Outputs="fc_1");
xvecsDET = xvecsDET';

xvecsDETP = projMat*xvecsDET;

detTable = helperDetectionErrorTradeoff(xvecsDETP,tDET,enrollmentTable,plda);

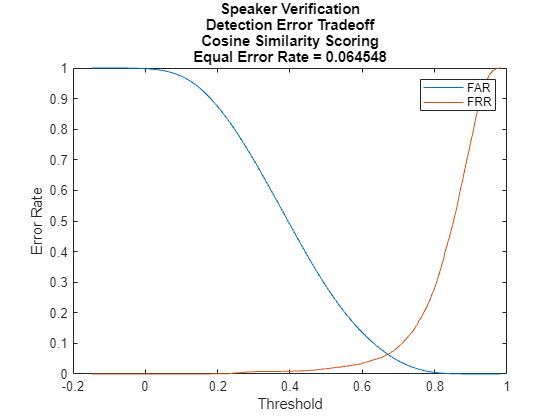

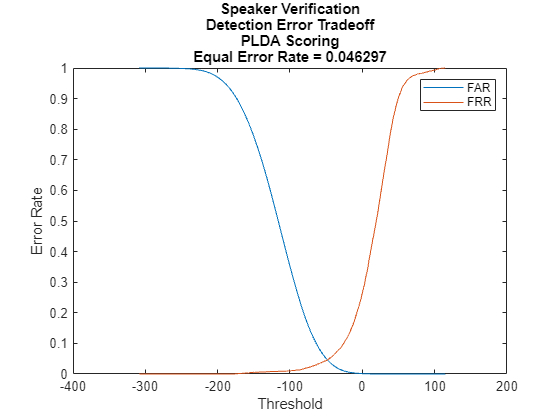

Plot the results of the detection error tradeoff evaluation for both PLDA scoring and cosine similarity scoring (CSS).

figure
plot(detTable.PLDA.Threshold,detTable.PLDA.FAR, ...
    detTable.PLDA.Threshold,detTable.PLDA.FRR)
eer = helperEqualErrorRate(detTable.PLDA);
title(["Speaker Verification","Detection Error Tradeoff","PLDA Scoring","Equal Error Rate = " + eer]);
xlabel("Threshold")
ylabel("Error Rate")
legend(["FAR","FRR"])

figure
plot(detTable.CSS.Threshold,detTable.CSS.FAR, ...
    detTable.CSS.Threshold,detTable.CSS.FRR)
eer = helperEqualErrorRate(detTable.CSS);
title(["Speaker Verification","Detection Error Tradeoff","Cosine Similarity Scoring","Equal Error Rate = " + eer]);
xlabel("Threshold")
ylabel("Error Rate")
legend(["FAR","FRR"])

References

[1] Snyder, David, et al. "x-vectors: Robust DNN Embeddings for Speaker Recognition." 2018 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2018, pp. 5329–33. DOI.org (Crossref), doi:10.1109/ICASSP.2018.8461375.

[2] V. Panayotov, G. Chen, D. Povey and S. Khudanpur, "Librispeech: An ASR corpus based on public domain audio books," 2015 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Brisbane, QLD, 2015, pp. 5206-5210, doi: 10.1109/ICASSP.2015.7178964

Supporting Functions

Feature Extraction and Normalization

function output = xVectorPreprocess(audioData,afe,nvargs)
% This function is only for use in this example. It may be changed or
% removed in a future release.
arguments
    audioData
    afe
    nvargs.Factors = []
    nvargs.Segment = true;
    nvargs.MinimumDuration = 1;
    nvargs.UseGPU = false;
end

isCombined = numel(audioData)==2;
if isCombined
    label = audioData{2};
    audioData = audioData{1};
end

% Place on GPU if requested
if nvargs.UseGPU
    audioData = gpuArray(audioData);
end

% Scale
audioData = audioData/max(abs(audioData(:)));

% Protect against NaNs
audioData(isnan(audioData)) = 0;

% Determine regions of speech
mergeDur = 0.2; % seconds
idx = detectSpeech(audioData,afe.SampleRate,MergeDistance=afe.SampleRate*mergeDur);

% If a region is less than MinimumDuration seconds, drop it.
if nvargs.Segment
    idxToRemove = (idx(:,2)-idx(:,1))<afe.SampleRate*nvargs.MinimumDuration;
    idx(idxToRemove,:) = [];
end

% Extract features
numSegments = size(idx,1);
features = cell(numSegments,1);
for ii = 1:numSegments
    temp = single(extract(afe,audioData(idx(ii,1):idx(ii,2))));
    if isempty(temp)
        temp = zeros(15,30,"single");
    end
    features{ii} = temp;
end

if ~isempty(nvargs.Factors)
    % Standardize features
    features = cellfun(@(x)(x-nvargs.Factors.Mean)./nvargs.Factors.STD,features,UniformOutput=false);

    % Cepstral mean subtraction (for channel noise)
    fileMean = mean(cat(1,features{:}),"all");
    features = cellfun(@(x)x - fileMean,features,UniformOutput=false);
end

if ~nvargs.Segment
    features = {cat(1,features{:})};
end

if isCombined
    output = {features,repelem(label,numel(features),1)};
else
    output = features;
end

end
