# erb2hz

Convert from equivalent rectangular bandwidth (ERB) scale to hertz

## Syntax

``hz = erb2hz(erb)``

## Description

example

````hz = erb2hz(erb)` converts values on the ERB frequency scale to values in hertz.```

## Examples

collapse all

Set two bounding frequencies in Hz and then convert them to the ERB scale.

`b = hz2erb([20,8000]);`

Generate a row vector of 32 values uniformly spaced on the ERB scale.

`erbVect = linspace(b(1),b(2),32);`

Convert the row vector of values into equivalent frequencies in Hz.

`hzVect = erb2hz(erbVect);`

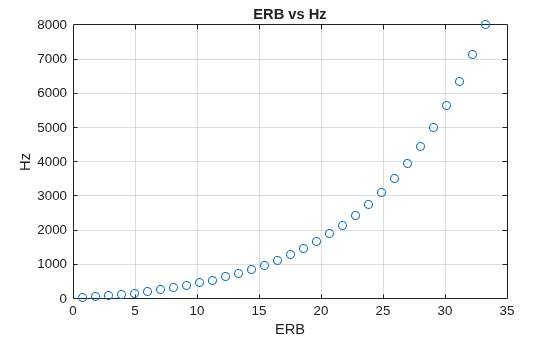

Plot the two vectors for comparison. As ERB values increase linearly, Hz values increase exponentially.

```plot(erbVect,hzVect,'o') title('ERB vs Hz') xlabel('ERB') ylabel('Hz') grid on``` ## Input Arguments

collapse all

Input frequency on the equivalent rectangular band (ERB) scale, specified as a scalar, vector, matrix, or multidimensional array.

Data Types: `single` | `double`

## Output Arguments

collapse all

Output frequency in Hz, returned as a scalar, vector, matrix, or multidimensional array the same size as `erb`.

Data Types: `single` | `double`

## Algorithms

The frequency conversion from the ERB scale to Hz uses the following formula:

`$\begin{array}{l}hz=\frac{{10}^{\frac{erb}{A}}-1}{0.00437}\\ \text{where}\\ A=\frac{1000{\mathrm{log}}_{e}\left(10\right)}{\left(24.7\right)\left(4.37\right)}\end{array}$`

 Glasberg, Brian R., and Brian C. J. Moore. "Derivation of Auditory Filter Shapes from Notched-Noise Data." Hearing Research. Vol. 47, Issues 1–2, 1990, pp. 103–138.
